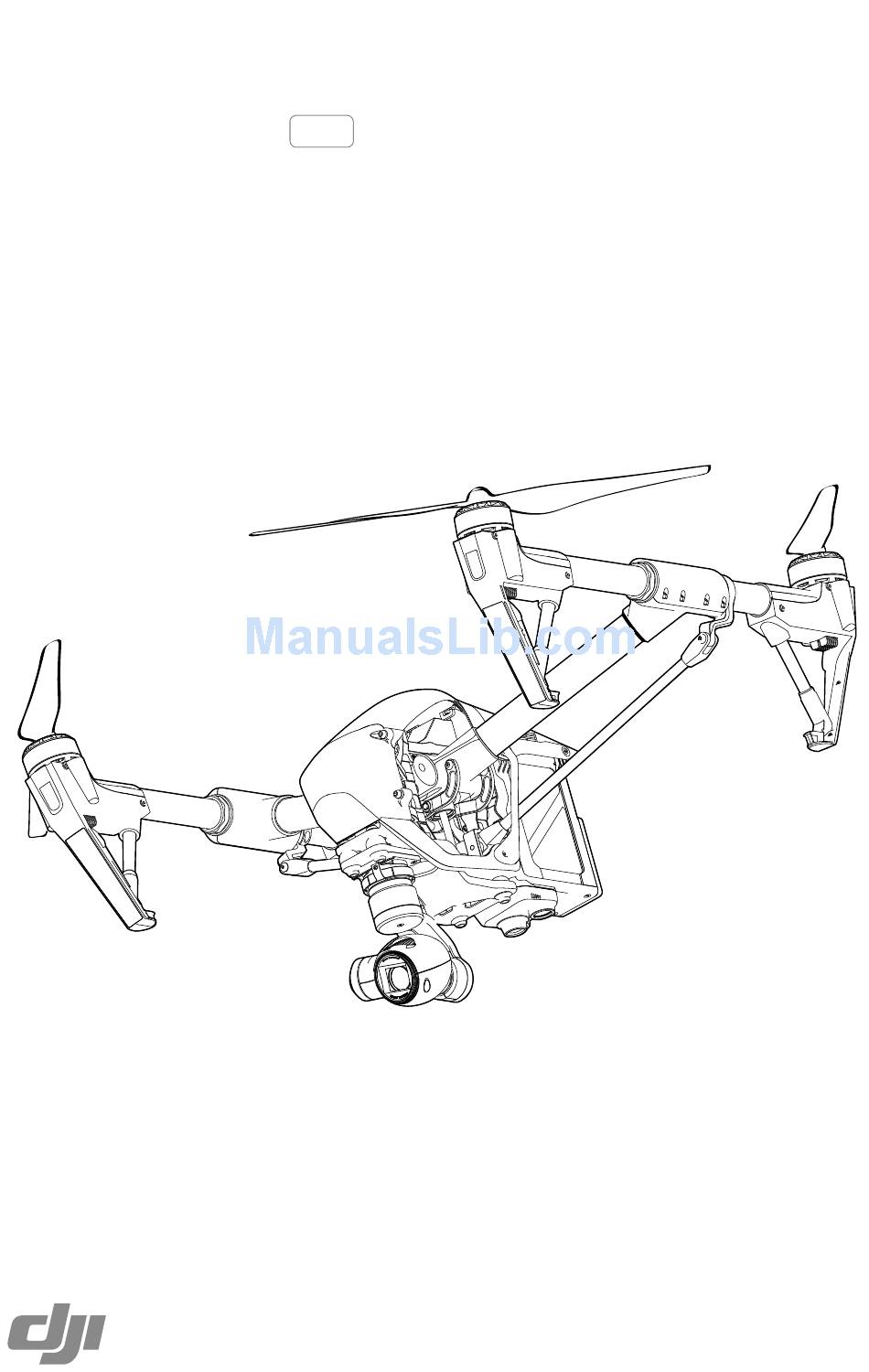

INSPIRE 1
User Manual
V1.0
2015.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inspire 1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji Inspire 1

Summary of Contents for dji Inspire 1

  • Page 1 INSPIRE 1 User Manual V1.0 2015.3...

  • Page 2: Using This Manual

    Warning Important Hints and Tips Reference Before Flight The following tutorials and manuals have been produced to ensure you to make full use of your Inspire 1. 1.Disclaimer 2.In the Box 3.Inspire 1 Quick Start Guide 4.Safety Guidelines 5.Inspire 1 User Manual 6.Intelligent Flight Battery Safety Guidelines...

  • Page 3: Table Of Contents

    Contents Using this manual Legends Before Flight Watch the video tutorials Download the DJI Pilot app Product Profile Introduction Feature Highlights Assemble the Aircraft Aircraft Diagram Remote Controller Diagram Aircraft Flight Controller Flight Mode Flight Status Indicator Return to Home (RTH)
  • Page 4 DJI Pilot App Camera Map Academy User Center Flight Flight Environment Requirements Flight Limits and Flight Restriction Area Preflight Checklist Calibrating the Compass Auto Take-off and Auto Landing Starting/Stopping the Motors Flight Test Appendix Specifications Intelligent Orientation Control (IOC) How to Update Firmware FCC Compliance © 2015 DJI. All Rights Reserved.

  • Page 5: Product Profile

    Product Profile This chapter describes the features of Inspire 1, instructs you to assemble the aircraft and explains the components on the aircraft and remote controllers. © 2015 DJI. All Rights Reserved.

  • Page 6: Introduction

    Product Profile Introduction The Inspire 1 is brand new quadcopter capable of capturing 4K video and transmitting an HD video signal (up to 2km) to multiple devices straight out of the box. Equipped with retractable landing gear, it can capture an unobstructed 360 degree view from its camera. The built-in camera has an integrated gimbal to maximize stability and weight efficiency while minimizing space.
  • Page 7 INSPIRE 1 User Manual Battery must be fully charged before using it for the first time. Refer to "Charging the Intelligent Flight Battery" (P21) for more information . If you have purchased the dual remote controller version, you must use the Master remote controller to deactivate Travel Mode.
  • Page 8 INSPIRE 1 User Manual Place all propellers onto the correct motor and tighten by hand to ensure security before flight. Attaching 1345s Quick-Release Propellers The 1345s Quick-Release propeller is the upgrade version of the propellers that greatly enhance the reliability of the propeller during the flight. Following the steps below to attach the 1345s Quick-Release propellers.

  • Page 9: Aircraft Diagram

    INSPIRE 1 User Manual Aircraft Diagram Propeller (P17) Motor Front LED (P12) Landing gear Gimbal and Camera (P35) Intelligent Flight Battery (P18) Aircraft Micro-USB Port [11] [10] Rear LED (P12) [10 ] Camera Micro-USB Port [11 ] Camera Micro-SD Card Slot (P35)
  • Page 10 Circular LED around the RTH button displays RTH status. [16] [17] [18] [19] [10] Camera Settings Dial Turn the dial to adjust camera settings. Only functions when the remote controller is connected to a mobile device running the DJI Pilot app. [15] [10] [11]...

  • Page 11: Aircraft

    Aircraft This chapter describes the features of the Flight Controller, Vision Positioning System and the Intelligent Flight Battery. © 2015 DJI. All Rights Reserved.

  • Page 12: Flight Controller

    Use the Flight Controller mode switch to change the flight mode of the aircraft, refer to the “Flight Mode Switch” on P27 for more information. Flight Status Indicator The INSPIRE 1 comes with the Front LED, Rear LED and Aircraft Status Indicator. The positions of these LEDs are shown in the figure below: Aircraft Status Indicator...

  • Page 13: Return To Home (Rth)

    Using the RTH button on the remote controller (refer to “RTH button” on P28 for more information) or the RTH button in the DJI Pilot app when GPS is available to enables smart RTH. The aircraft return to the latest recorded Home Point, you may control the aircraft's orientation to avoid collision during the Smart RTH.
  • Page 14 Low Battery RTH The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately when these warnings are shown.

  • Page 15: Dynamic Home Point

    Fast Blinking Yellow Aircraft cannot avoid obstruction during the Failsafe RTH, therefore it is important to set an reasonable Failsafe altitude before each flight. Launch the DJI Pilot app and enter “Camera” view and select “MODE” to set the Failsafe altitude.

  • Page 16: Vision Positioning System

    DJI Vision Positioning is a positioning system that uses ultrasonic and image data to help the aircraft identify its current position. With the help of Vision Positioning, your Inspire 1 can hover in place more precisely and fly indoors or in other environments where there is no GPS signal available. The main components of DJI Vision Positioning are located on the bottom of your Inspire 1, including [1]two sonar sensors and[2]one monocular camera.

  • Page 17: Flight Recorder

    Attaching and Detaching the Propellers Use only DJI approved propellers with your Inspire 1. The grey or black nut on the propeller indicates the rotation direction of the propeller and where it should be attached. To attach the propellers properly, ©...

  • Page 18: Dji Intelligent Flight Battery

    ONLY use original DJI propellers for a better and safer flight experience. DJI Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4500mAh, voltage of 22.2V, and smart charge- discharge functionality. It can only be charged with an appropriate DJI approved charger.
  • Page 19 9. Short Circuit Protection: Automatically cuts the power supply when a short circuit is detected. 10. Battery Cell Damages Protection: DJI Pilot app shows warning message when damaged battery cell is detected. 11. Battery Information History: Show the last 32 entries of battery information records that include warning messages and so on.
  • Page 20 5℃ before using it in the low temperature environment. 5. When using the Inspire 1 in a low temperature environment, begin by allowing the aircraft to hover at a low altitude, for approximately one minute, to heat the battery.
  • Page 21 Do not charge the Intelligent Flight Battery and remote controller with standard charger (model: A14-100P1A) at the same time, otherwise the charger may overheat. Always turn off the battery before inserting it or removing it from the Inspire 1. Never insert or remove a battery when it is powered on.
  • Page 22 Leave it on until there is less than 5% of power left, or until the battery can no longer be turned on. Launch the DJI Pilot app to check battery level. Rapid: Fly the Inspire 1 outdoors until there is less than 5% of power left, or until the battery can no longer be turned on.

  • Page 23: Remote Controllers

    Remote Controllers This chapter describes the features of the remote controller that includes aircraft and remote controller operations and dual remote controller mode. © 2015 DJI. All Rights Reserved.

  • Page 24: Remote Controller Profile

    Powering On And Off The Remote Controller The Inspire 1 remote controller is powered by a 2S rechargeable battery with a capacity of 6000mAh. The battery level is indicated by the Battery Level LEDs on the front panel. Follow the steps below to power on your remote controller: 1.
  • Page 25 INSPIRE 1 User Manual Power Outlet Charger Power Button Controlling Camera Shoot videos or images and adjust camera settings via the Shutter Button, Camera Settings Dial, Playback Button and Video Recording Button on the remote control. [1] Camera Settings Dial Turn the dial to quickly adjust camera settings such as ISO and shutter speed without letting go of the remote controller.
  • Page 26 Moving the right stick control left and right changes the aircraft’s left and right pitch. Push left to fly left and right to fly right. The Inspire 1 will hover in place if the stick is centered. Push the stick further away from the center position for a larger pitch angle (maximum 35˚) and faster flight.
  • Page 27 IOC, refer to the IOC in Appendix. The Flight Mode Switch is locked in P mode by default. To unlock the switch, launch the DJI Pilot app, enter the "Camera" page, tap "MODE", and then activate "Multiple Flight Mode" .
  • Page 28 INSPIRE 1 User Manual 2. Lower: The landing gear will lower to its lowest position for landing. Do not raise the landing gear when the aircraft is on the ground. Ensure the landing gear is lowered before landing. RTH button Press and hold this button to start the Return to Home (RTH) procedure.

  • Page 29: Dual Remote Controllers Mode

    INSPIRE 1 User Manual Optimal Transmission Range The signal transmission between aircraft and remote controller perform best within the range that displayed in the picture shown below: Optimal Transmission Range Strong Weak Ensure the aircraft is flying within the optimal transmission range. Adjust the distance and position between the operator and the aircraft to achieve optimal transmission performance.
  • Page 30 DJI Pilot app. Follow the steps below for setup: “Master” Remote Controller: 1. Connect the remote controller to your mobile device and launch the DJI Pilot app. 2. Go to the Camera page, and tap to enter the remote controller settings window.

  • Page 31: Remote Controller Status Led

    “Slave” remote controller cannot control the orientation of the aircraft. Reset the remote controller to “Master” in DJI Pilot app if you wish to link the remote controller to the aircraft. 2. Search the “Master” remote controller in the surrounding area in the “Request Control” section.

  • Page 32: Linking The Remote Controller

    The remote controller is linked to your aircraft before delivery. Linking is only required when using a new remote controller for the first time. Follow these steps to link a new remote controller: 1. Power on the remote controller and connect to the mobile device. Launch DJI Pilot app. 2. Power on the Intelligent Flight Battery.

  • Page 33: Remote Controller Compliance Version

    “Slave” remote controller cannot control the orientation of the aircraft. Reset the remote controller to “Master” in DJI Pilot app if you wish to link the remote controller to the aircraft. Remote controller will disconnect from the linked aircraft if a new remote controller is linked to the same aircraft.

  • Page 34: Gimbal And Camera

    Gimbal and Camera This chapter provides the technical specifications of the camera and explains the working mode of the gimbal. © 2015 DJI. All Rights Reserved.

  • Page 35: Camera Profile

    To store your photos and videos, plug in the micro-SD card into the slot shown below before powering on the Inspire 1. The Inspire 1 comes with a 16GB micro-SD card and supports up to a 64GB micro-SD card. A UHS-1 type micro-SD card is recommended, because the fast read and write capability of these cards enables you to store high-resolution video data.

  • Page 36: Gimbal

    Camera Operation Use the Shutter and Record button on the remote controller to shoot the images or the videos through the DJI Pilot app. For more information about how to use these buttons, refer to “Controlling Camera” P25. ND Filter Attach an ND filter to the front of the camera to reduce over-exposure and “jello”...
  • Page 37 Press C1 or C2 again to exit yaw mode. Using DJI Pilot App to Control Gimbal Follow the steps below to use DJI Pilot app to control the gimbal orientation: 1. Launch DJI Pilot app, enter “Camera” page.
  • Page 38 Three Gimbal operation modes are available. Switch between the different operation modes on the Camera page of the DJI Pilot App. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: Pitch The angle between Gimbal’s orientation and aircraft’s nose remains...

  • Page 39: Dji Pilot App

    DJI Pilot App This chapter describes the four main GUI of the DJI Pilot app. © 2015 DJI. All Rights Reserved.

  • Page 40: Camera

    DJI Pilot App The DJI Pilot app is a new mobile app designed specifically for the Inspire 1. Use this app to control the gimbal, camera and other features of your flight system. The app also comes with Map, Store a User Center, for configuring your aircraft and sharing your content with friends.
  • Page 41 INSPIRE 1 User Manual [1] Flight Mode : The text next to this icon indicates the current flight mode. Tap to enter MC (Main Controller) settings. Modify flight limits, perform compass calibration, and set the gain values on this screen.
  • Page 42 INSPIRE 1 User Manual Record : Tap once to start recording video, then tap again to stop recording. You can also press the Video Recording Button on the remote controller, which has the same function. Playback : Tap to enter playback page. You can preview photos and videos as soon as they are captured.

  • Page 43: Map

    User Center You can sync the picture and videos to the mobile device, view the flight records and check your DJI account status in the User Center. Use the DJI registered account to login to the User Center. ©...

  • Page 44: Flight

    Flight This chapter describes the flight safety and flight restrictions. © 2015 DJI. All Rights Reserved.

  • Page 45: Flight Environment Requirements

    Max Height & Radius limit flying height and distance, and the user may change these settings in the DJI Pilot App. Once complete, your Inspire 1 will fly in a restricted cylinder that is determined by these settings. The tables below show the details of these limits.
  • Page 46 If you fly out of the limit, you can still control the Inspire 1, but cannot fly it further. If the Inspire 1 flies out of the max radius in Ready to Fly (non-GPS) mode, it will fly back within range automatically.
  • Page 47 (2) 0.6 miles (1 km) around the safety zone is a designated “no-fly zone”. (3) A “warning zone” has been set around the safety zone. When you fly within 0.6 miles (1Km) of this zone, a warning will appear on the DJI Pilot App. ©...
  • Page 48 INSPIRE 1 User Manual GPS Signal Strong Blinking Green Aircraft Zone Restriction DJI Pilot App Prompt Status Indicator Warning: You are in a No-fly Motors will not start. zone. Take off prohibited. If the aircraft enters the No-fly Zone restricted area in A mode but...

  • Page 49: Preflight Checklist

    4. Gimbal is functioning as normal. 5. Motors can start and are functioning as normal. 6. DJI Pilot app connected to the aircraft. Calibrating the Compass IMPORTANT: Make sure to calibrate the compass in every new flight location. The compass is very sensitive to electromagnetic interference, which can cause abnormal compass data leading to poor flight performance or even failure.

  • Page 50: Auto Take-Off And Auto Landing

    1. When compass data is abnormal, and the Aircraft Status Indicator is blinking red and yellow. 2. When flying in a new location, or a location that is different from your last flight. 3. When the mechanical structure of the Inspire 1 has changed, i.e. changed mounting position of the compass.

  • Page 51: Starting/Stopping The Motors

    Stopping Motors There are two methods to stop the motors. Method 1: When the Inspire 1 has landed, push the throttle down , then conduct CSC . Motors will stop immediately. Release both sticks once motors stop. Method 2: When the aircraft has landed, push the throttle down and hold. The motors will stop after 3 seconds.
  • Page 52 Video Suggestions and Tips 1. Work through the checklist before each flight. 2. Select desired gimbal working mode in the DJI Pilot app. 3. Aim to shoot when flying in P mode only. 4. Always fly in good weather, such as sunny or windless days.

  • Page 53: Faq

    © 2015 DJI. All Rights Reserved.
  • Page 54 We do not recommend flying with any payload other than the included DJI gimbal and camera. 6. Do you have an LCD monitor available for the Inspire 1? No, DJI does not sell LCD or HD monitors for the Inspire 1. However, you can output the live streaming video to a compatible monitor or mobile device of your own.
  • Page 55 INSPIRE 1 User Manual 14. What flight controller does the Inspire 1 use? The Inspire 1 uses its own new flight controller. 15. Which motors and propellers does the Inspire 1 come with? The Inspire 1 uses 3510 motors and 1345 propellers. 16. Aircraft frame arm joints appear loosen, is that normal? The space of the joins shown in the below figure is normal and it will not affect the performance of aircraft, do not adjust the position of the screws on your own.

  • Page 56: Appendix

    Appendix © 2015 DJI. All Rights Reserved.

  • Page 57: Specifications

    Station: 750 mA; Motion: 900 mA Angular Vibration Range ±0.03° Mounting Detachable Pitch: -90° to +30° Controllable Range Pan: ±320° Pitch: -125° to +45° Mechanical Range Pan: ±330° Pitch: 120°/s Max Controllable Speed Pan: 180°/s © 2015 DJI. All Rights Reserved.
  • Page 58 INSPIRE 1 User Manual Camera Name Model FC350 Total Pixels 12.76M Effective Pixels 12.4M Image Max Size 4000x3000 ISO Range 100-3200 (video) 100-1600 (photo) Electronic Shutter Speed 8 s to 1/8000 s FOV (Field Of View) 94° CMOS Sony EXMOR 1/2.3”...
  • Page 59 INSPIRE 1 User Manual Mobile Device Holder Tablet or Smart Phone Output Power Operating Temperature Range -10° to 40° C Less than 3 months: -20° to 45° C Storage Temperature Range More than 3 months: 22° to 28° C Charging Temperature Range 0-40°...

  • Page 60: Intelligent Orientation Control (Ioc)

    IOC allows users to lock the orientation of aircraft in different fashions. There are three working modes for IOC and you may select the desired IOC modes from the DJI Pilot app. IOC only works under F mode, and user must toggle the flight mode switch to “F” mode to activate IOC. Refer to the table below:...

  • Page 61: How To Update Firmware

    2. Insert the SD into your PC. Extract the all downloaded files into the root directory of the SD card. Remove the SD card from your PC. Ensure the Inspire 1 is powered off then insert the SD card into the SD card slot on the Inspire 1 camera.

  • Page 62: Fcc Compliance

    INSPIRE 1 User Manual Updating Intelligent Flight Battery Firmware The Intelligent Flight Battery is upgraded during the aircraft firmware upgrade process. It is recommended to keep the upgrade package files in your SD card. The upgrade will start automatically after power cycling the aircraft.
  • Page 63 INSPIRE 1 User Manual frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,...
  • Page 64 The content is subject to change. Download the latest version from www.dji.com/support © 2015 DJI. All Rights Reserved.
