Summary of Contents for Tvone 1T-CT-651

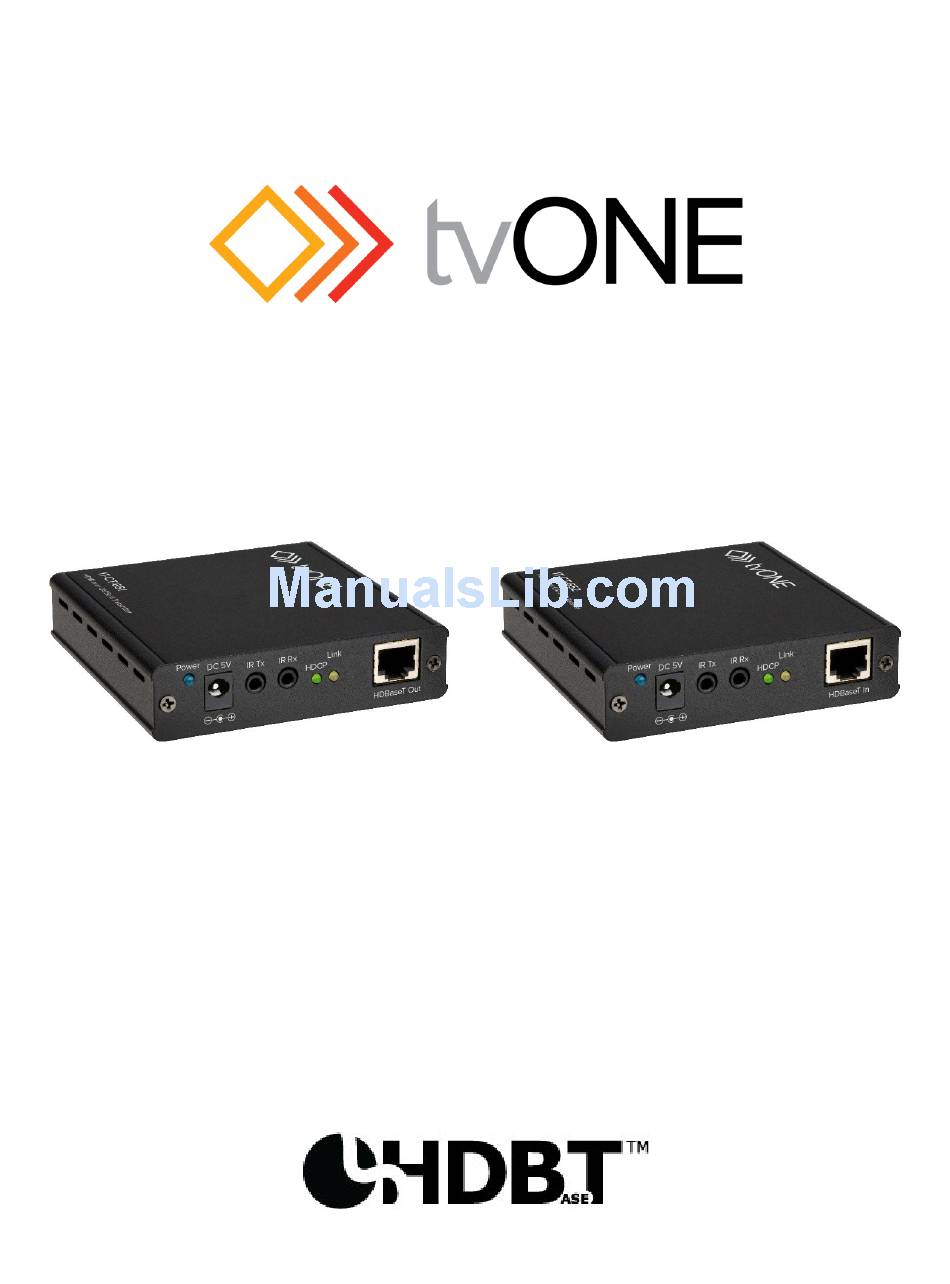

- Page 1 1T-CT-651 Transmitter 1T-CT-652 Receiver Instruction Manual 1T-CT-651/1T-CT-652 HDMI Over Single Cat.6...
-
Page 2: Table Of Contents
Table of Contents Introduction Package Contents Specifications Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 3: Introduction
Signal Distribution Amplifiers and Cat.5 Transmission Systems. Liability Statement Every effort has been made to ensure that this product is free of errors. tvONE cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. -
Page 4: Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or tvONE immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 5: Specifications
SPECIFICATIONS: Video Inputs/Outputs 1T-CT-651 Tx - HDMI Input 1x via HDMI Connector 1T-CT-652 Rx - HDMI Output 1x via HDMI Connector Cat.5e/Cat.6 Cable Inputs/Outputs 1T-CT-651 Tx - HDBaseT Output 1x via RJ45 Connector 1T-CT-652 Rx - HDBaseT Input 1x via RJ45 Connector... -
Page 6: Connecting The Hardware
Transmitter, using an appropriate HDMI cable, (1 Meter (~3’) in length for 12 bit signals, 10 meters (~33’) for 8 bit signals). (OPTIONAL) If there is an IR controllable device on the 1T-CT-651 side that you wish to control remotely from the 1T-CT-652 side, connect the IR Emitter device to the IR Tx connector on the 1T-CT-651. - Page 7 (OPTIONAL) If there is an IR controllable device on the 1T-CT-652 side that you wish to control remotely from the 1T-CT-651 side, connect the IR Emitter device to the IR Tx connector on the 1T-CT-652. If there is an IR controllable device on the 1T- CT-651 side that you wish to control remotely from the 1T-CT-652 side, connect the IR Receiver device to the IR Rx connector on the 1T-CT-652.
-
Page 8: Operating The Unit
After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting tvONE. Should the dealer’s technical personnel be unable to assist you, contact tvONE via our support website: http://tvone.crmdesk.com . Create a technical support request on the site and our support... -
Page 9: Limited Warranty
In no event shall tvONE be responsible or liable for any damage arising from the use of such defective products whether such damages be direct, indirect, consequential or otherwise, and whether such damages are incurred by the reseller, end-user or any third party. -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE The 1T-CT-651 and 1T-CT-652 HDMI over single Cat.6 cable products have been tested for compliance with the appropriate FCC and CE rules and regulations. The power adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, regulations and/or guidelines.
