Summary of Contents for Swiss Audio SW10W

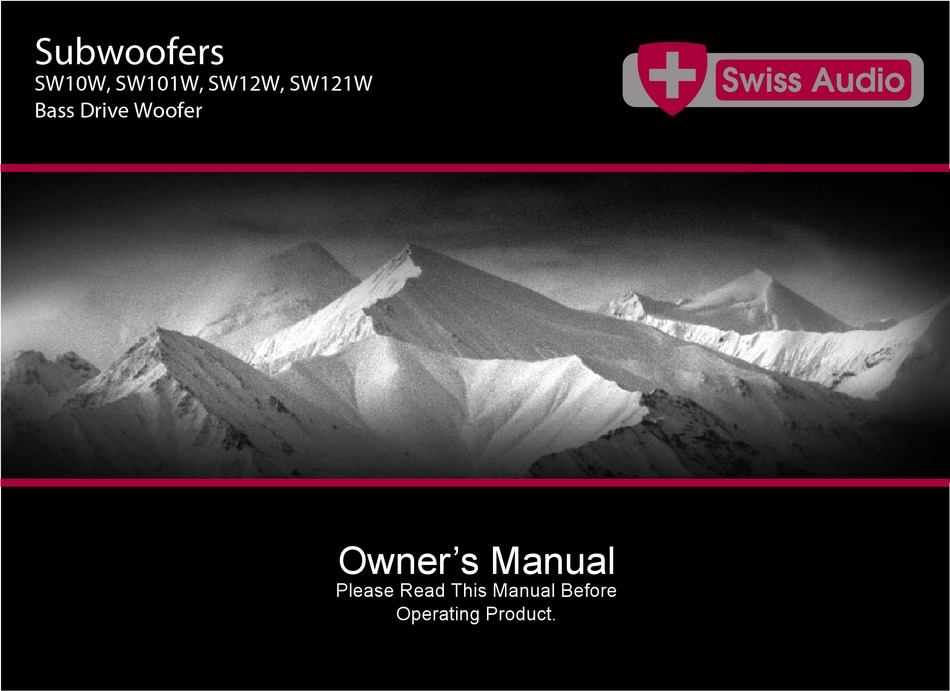

- Page 1 ���������� ������ ������� ������ ������ ���� ����� ������ Owner’s Manual Please Read This Manual Before Operating Product.
-
Page 3: Table Of Contents
Table Of Contents Introduction........................3 Features And Specifications..................4 Choosing An Enclosure....................5 Building An Enclosure....................6 - 8 Parameters / Box Recommendations..............9 - 10 Wiring Diagrams....................11 - 15 Troubleshooting......................16 Warning & Disclaimer....................17 Notes..........................18... -
Page 4: Introduction
The classic silver-faced finish and famous Swiss Audio logo have captured the eyes and ears of enthusiast worldwide to push Swiss Audio to a new plateau of car audio design. Swiss Audio Products have a proven track record which is now worldwide. -
Page 5: Features And Specifications
FEATURES AND SPECIFICATIONS Swiss Audio’s SW Bass Drive Series Woofers deliver performance and bold cosmetics. These woofers boast high-quality manufacturing features such as the tall J-surround for more control and added excursion, push terminals and an eye-catching Swiss-branded logo on its dust cap. The SW series will impress even the most experienced audiophile with low frequency power unlike any other. -
Page 6: Choosing An Enclosure
Choosing an Enclosure Choosing an enclosure can be one of your most difficult decisions. There are several types available. The definitions listed here are for the most common: Sealed, Ported and Bandpass. This will help you choose which enclosure is best suited for you. -
Page 7: Building An Enclosure
Building An Enclosure Calculating enclosure volumes is simple we are going to give you the mathematical equation of how to calculate the enclo- sure that you intend to build. If you were to build an enclosure your mathematical equation should look like this HEIGHT x WIDTH x DEPTH / 1728 = ____________ Box volume. - Page 8 Building An Enclosure Now that you have an understanding of how to calculate an enclosure with equal top and bottom dimensions, we will show you how to calculate the volume of an enclosure with unequal dimensions (Wedged Enclosure). Since the top and bottom (or sides) are of unequal lengths, measure each length (i.e.
- Page 9 Building An Enclosure To build a Ported Enclosure, the port’s displacement must be factored in. The mathematical equation to calculate port displacement is: (Pi x Port Radius x Port Radius x Port Depth) / 1728 = _________ Port Displacement EXAMPLE For this example, we will use a 4”...
-
Page 10: Parameters / Box Recommendations
THIELE / SMALL PARAMETERS Understanding Thiele / Small Parameters: Thiele / Small Parameters is used for box building programs that are available to the loudspeaker inthusists. Any loudspeaker inthusist can purchase a box building program and have a box engineered specificly for the loudspeaker that they posis. - Page 11 Recommended Enclosures Parameters SW10W SW101W SW12W SW121W SW10W SW101W SW12W SW121W Min. Sealed Cu. Ft. 0.75 0.75 29.092 35.365 33.246 34.953 Max Sealed Cu. Ft. 1.25 0.442 0.552 0.682 0.627 Minimum Ported Enclosure 2.812 5.503 6.41 Box Volume 1.25 0.382 0.51...
-
Page 12: Wiring Diagrams
Parallel Dual 4 Ohm 2 Ohm 1 Ohm 0.67 Ohms 0.5 Ohms... - Page 13 Series Parrelel Dual 4 Ohm 4 Ohms 2.67 Ohms 2 Ohms...
- Page 14 Series Dual 4 Ohm 8 Ohms 16 Ohms 24 Ohms 32 Ohms...
- Page 15 Parallel Single 4 Ohm 4 ohm 2 ohm 1.33 ohm 1 ohm...
- Page 16 Right Series Single 4 Ohm 4 ohm 8 ohm 12 ohm 16 ohm...
-
Page 17: Troubleshooting
TROUBLESHOOTING SYMPTOM CHECK POINT CURE 1. Check fuses in amplifier 2. Check turn-on lead 3. Check signal leads Is the amplifier power LED illuminated? 4. Check gain control 5. Check source unit volume 6. Check fader control on source unit 7. -
Page 18: Warning & Disclaimer
IMPORTANT: Never cut any metal that is an integral part of the vehicle's safety or structural support system. If you are unsure, it is best to have the product professionally installed by an Authorized Swiss Audio Dealer. Never sacrifice your safety for sound. -
Page 19: Notes
NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________... - Page 20 SWISS AUDIO INCORPORATION 114 South Berry Street Brea, California 92821 Phone: (714)988-0380 Fax: (714)988-0381 www.swissaudioinc.com...
