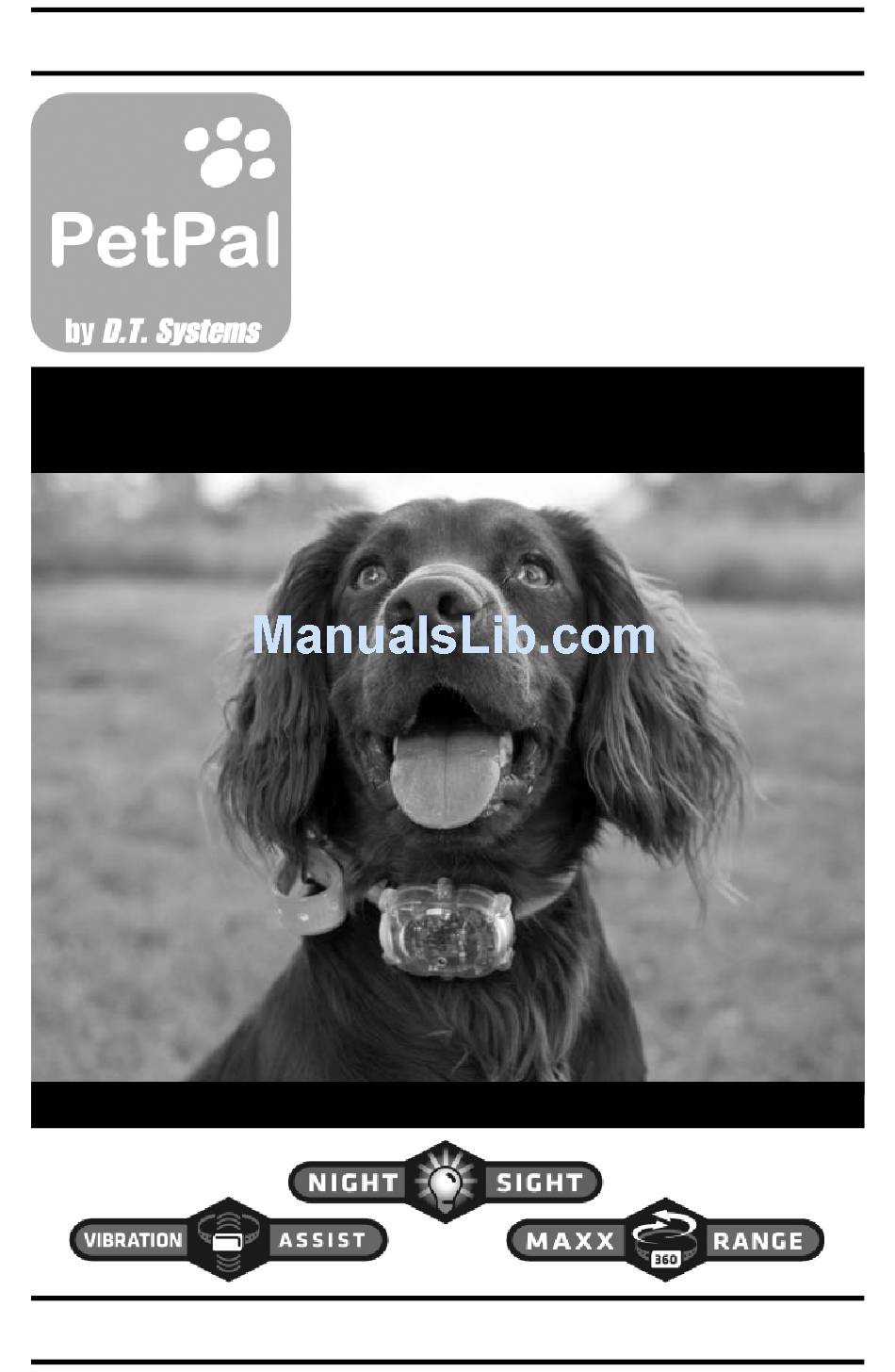

- Page 1 Owner’s Manual S.P.O.T.™ S.P.O.T.™ Trainer Trainer Signaling. Protecting. Obedience. Trainer. With Night Sight™ Technology TECHNOLOGIES USED: Let Your Dog Be a Dog!™...
- Page 2 IMPORTANT NOTE: Please read this owner’s manual in its entirety before operating this unit. Should you have any questions about our collars or their operation please contact our Customer Service department (see back page for contact information). NOTICE! According to how you use your transmitter, the transmitting range may be much different.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents ........... 3 • Introduction ............ 4 • Package Contents .......... 5 • Model Features ..........5 • Parts & Functions ........... 6 • SmartLED™ ........... 10 • Charging the Collar Batteries......11 • Turning ON and OFF........12 •... -
Page 4: Introduction
It also involves a responsibility to teach, respect, and protect. The PetPal line of training products from D.T. Systems will help to ensure both you and your dog experience great times together. PetPal Let your dog be a dog!™... -
Page 5: Package Contents
PACKAGE CONTENTS • Transmitter* • Collar Receiver • Rechargeable Batteries for the collar (already installed in collar unit) • Battery Charger • Single-Jack Adapter Charging Cable • Owner’s Manual *9-volt transmitter battery NOT included MODEL FEATURES • D.T. Digital Technology •... -
Page 6: Parts & Functions
PARTS & FUNCTIONS Antenna Night Sight™ Transmitter BLNK Intensity LED Indicator Selection Dial Light Night Sight™ LITE Vibration Button Assist™ Night Sight™ BLNK Button Magnet Indicator (red dot) Battery Cover (on back side) Transmitter BLNK Intensity Selection Dial The Night Sight™ intensity selection dial can be set from brightness level 1 to level 16 for the BLNK function. - Page 7 PARTS & FUNCTIONS Transmitter Antenna Be sure to check that the antenna is securely fastened to the transmitter before each use. Hand tighten only. Be careful when screwing the antenna into the trans- mitter. Over-tightening the antenna can cause dam- age to the antenna or the antenna mount.
-
Page 8: Collar Receiver
PARTS & FUNCTIONS Reflective Collar Belt Night Sight™ with MAXX-Range LED Lights 360™ Antenna Magnetic Battery Charging ON/OFF Receptacle (on Switch SmartLED™ back) Indicator Indicator Light (red dot) Collar Receiver Night Sight™ LED & Reflective Collar The two Night Sight™ LED lights with adjustable brightness are highly visible in the dark. - Page 9 PARTS & FUNCTIONS Magnetic On/Off Switch Indicator (Red Dot) The red dot indicates the location of the magnetic power switch in the collar re- ceiver and is used to turn the collar re- ceiver ON/OFF and for ID Programming. Collar Belt with MAXX-Range 360™ Antenna The embedded collar antenna is woven into the bright orange reflective collar belt and runs the entire length of the belt.
-
Page 10: Smartled
SmartLED™ S.P.O.T.™ collars are equipped with the SmartLED™ battery status system. The SmartLED™ system lets you know when the collar receiver is charging and when the charging is complete. It also gives you a status on how much charge is remaining in the battery during use, when it needs charging, and when the batteries will need to be replaced. -
Page 11: Charging The Collar Batteries
CHARGING THE COLLAR BATTERIES S.P.O.T.™ collars are equipped with rechargeable Nickel Metal Hydride (NiMH) batteries, which are not memory sensitive and do not require depletion before recharging. Although batteries come partially charged from the factory, it is recommended that they are given a full charge (up to 12 hours) before initial use. -
Page 12: Turning On And Off
TURNING ON AND OFF The transmitter is always in a permanent sleep state. It is only ON when a button is being pressed and does not need to be turned off by the user. If the transmitter does not activate, make sure you have a good battery installed. -
Page 13: Testing
TESTING NOTE: Before testing, make sure that the transmitter has a good battery and the collar unit is fully charged and “ON”. To Test the Night Sight™ LED Lights 1. To test the “LITE” function, press the “LITE” button once and the two LED lights on each side will light up at 50% brightness. -
Page 14: Programming
PROGRAMMING If your collar unit is not responding to the transmitter, it may need to be reprogrammed to the transmitter. If you ever need a replacement transmitter or collar unit, reprogramming will also be needed. 1. Select the desired collar selecting switch position (toggle switch located on top of transmitter). -
Page 15: Properly Fitting The Collar
PROPERLY FITTING THE COLLAR NOTE: Proper collar tightness and position are very important to insure effective use. The S.P.O.T.™ collar must be put properly around your dog’s neck to insure that your dog can feel the Vibration Assist™ feature. Adjust the collar accordingly and tighten so that you can still get two fingers under the collar (between the collar and the dogs... -
Page 16: Setting Night Sight Intensity Level
SETTING NIGHT SIGHT INTENSITY LEVEL The Night Sight™ LED system consists of two bright LED lights located on each side of the collar receiver. Each light is capable of producing around 21 Lumens, or 42 Lumens total (when set at 100% brightness). Setting LITE - Press the “LITE”... -
Page 17: Maintenance
MAINTENANCE It is important to periodically clean your S.P.O.T.™ Series system for maximum performance. Regular cleaning will also lengthen the life of your unit. Clean the collar box, belt and buckle with lukewarm • water and a mild anti-bacterial soap. Thoroughly clean the space between the electrodes •... -
Page 18: Important Safety Notes
IMPORTANT SAFETY NOTES Before training with this unit, your dog’s health • should be examined by a veterinarian. This training device is not intended for dogs that are overly sensitive to extreme external stimuli, such as flashing lights. Your S.P.O.T.™ training collar is a very valuable tool •... -
Page 19: Warranty
WARRANTY All S.P.O.T.™ training systems have a one year parts and labor warranty effective from the original date of purchase. A copy of the original sales receipt is required to validate the date of purchase. The S.P.O.T.™ has been made with state of the art equipment. -
Page 20: Contact Information
2872 Walnut Hill Lane Dallas, Texas 75229 Tel: (214) 350-9446, (888) 588-8364 Fax: (214) 350-7847 Website: www.dtsystems.com E-mail: customerservice@dtsystems.com S.P.O.T. 2014.07.08 Printed in Korea...
