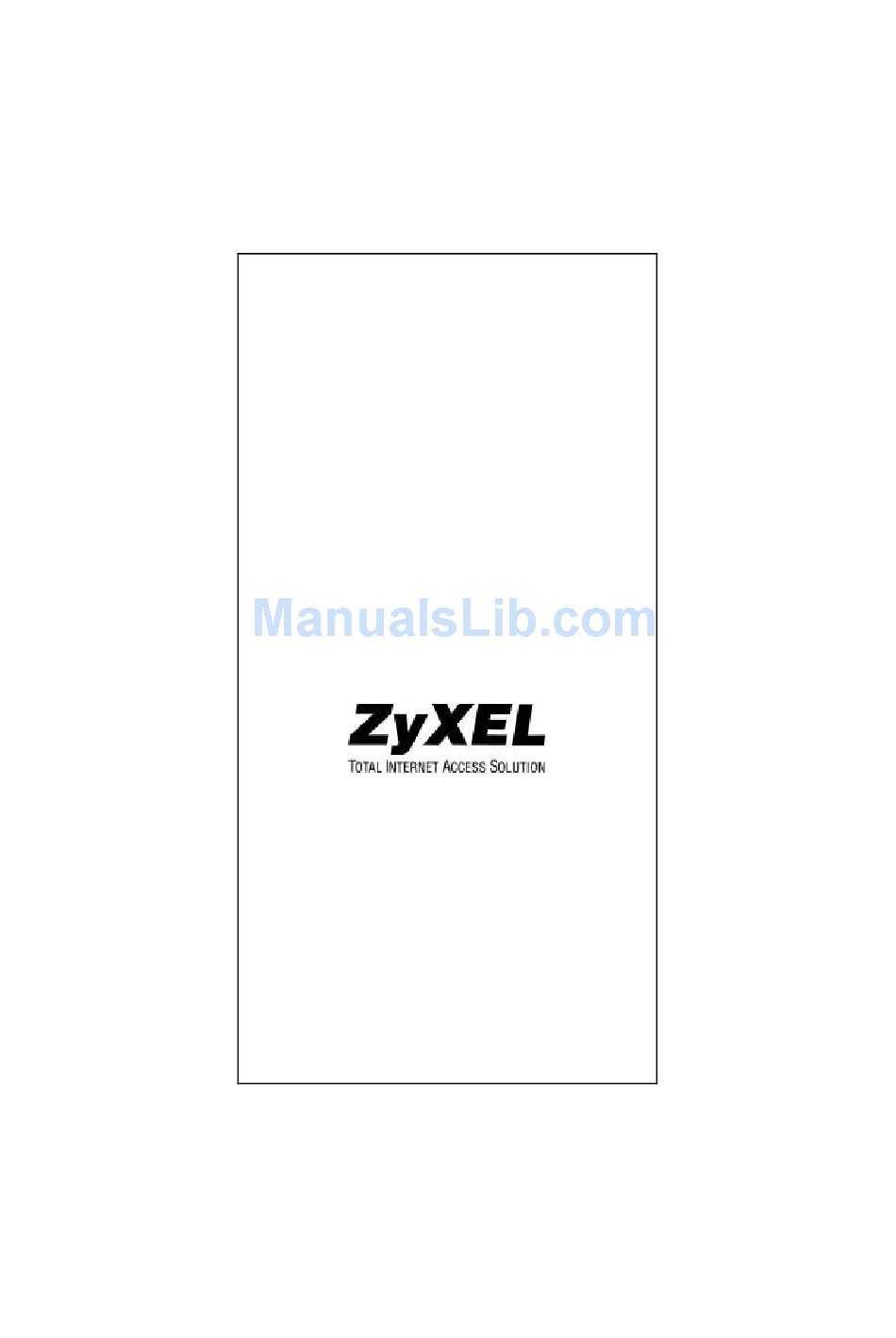

- Page 1 PPC-10 Phoneline PCI Card User's Guide Version 2.0...
-
Page 2: Ppc-10 Phoneline Pci Card
PPC-10 Phoneline PCI Card Copyright Copyright © 2000 by ZyXEL Communications Corporation. The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means,... -
Page 3: Fcc Statement
FCC Statement This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Information For Canadian Users
Information for Canadian Users The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Industry Canada does not guarantee that the equipment will operate to a user's satisfaction. - Page 5 electrical inspection authority, or electrician, as appropriate. Note This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of Industry Canada.
-
Page 6: Zyxel Limited Warranty
ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair... - Page 7 be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage Paid (USA and territories only). If the customer desires some other return destination beyond the U.S.
-
Page 8: Customer Support
Customer Support If you have questions about your ZyXEL product or desire assistance, contact ZyXEL Communications Corporation offices worldwide, in one of the following ways: E-MAIL – Support/ Sales Telephone/Fax Web Site/ FTP Site Regular Mail World support@zyxel.com.tw +886-3- 578-3942 wide support@europe.zyxel.com... -
Page 9: Table Of Contents
Table of Contents PPC-10 PHONELINE PCI CARD ......II DISCLAIMER ............II TRADEMARKS ............II FCC STATEMENT..........III INFORMATION FOR CANADIAN USERS ..IV ZYXEL LIMITED WARRANTY ......VI CUSTOMER SUPPORT ........VIII INTRODUCTION ..........1 ............1 EATURES ....... 1 YSTEM EQUIREMENTS ............ - Page 10 ³nÅé¦w¸Ë¤è¦¡..........7...
-
Page 11: Introduction
Introduction Congratulations on the purchase of your new 1 Mbps phoneline PCI adapter card. This document shows you how to install of the adapter in your computer. The phoneline PCI card is a cost-effective, high-performance network interface card. It provides connectivity to 1Mbps phoneline networking. -
Page 12: Unpacking
compliant With PCI local bus specifications, revisions 2.0 and 2.1 A 3.5-inch, 1.44MB diskette drive Twisted-pair telephone lines for 1 Mbps phoneline networking installation This section describes how to install the adapter card in your computer. 1.3 Unpacking Caution: To prevent static charge from damaging the adapter, reduce the charge by touching a ground, e.g., the computer chassis, before handling the adapter card. -
Page 13: Connecting The Phoneline Network
one of the available PCI bus master expansion slot. Press the card firmly into the PCI slot and make sure that the card is fully seated. 4. Tighten the bracket screw that secures the card to the computer chassis. 5. Reinstall the computer’ s cover. 6. -
Page 14: Software Installation
1.7 Software Installation Microsoft Windows 95: 1. After installing the adapter card and reboot, Windows 95 will discover the new adapter card. 2. Windows 95 will prompt for driver installation. 3. Insert the driver diskette into the floppy drive and click <other locations>. -
Page 15: Product Specifications
1.9 Product Specifications Standard HomePNA specification 1.0 Interface Two RJ-11 connectors for phoneline networking Cable Phoneline networking: Twisted-pair telephone wires Network Data Rate 1 Mbps LED indications Link, Activity Base I/O Addresses Assigned by BIOS Bus Interface 32-bit bus master Hardware Interrupt PCI INTA Emission... -
Page 16: Phoneline Pci Âà±Μ¥D
Phoneline PCI Âà±µ¥d ¨Ï¥Î»¡©ú®Ñ ·PÁ±zÁʶR Phoneline PCI Âà±µ¥d¡A¥»Âà±µ¥d´£¨Ñ ¥H¹q¸Ü½u¤Î¹q¸£²×ºÝ¾÷³]³Æ³s±µºô¸ô¤§¥\¥Î¡C¥D -n¥\¯à¶µ¥Ø¥]¬A¡G 1. ¤ä´© 1Mbps HomePNA specification 1.1 ¡C 2. ¤ ä ´ © IEEE 802.3 10BASE -T ¤Î IEEE 802.3u 100BASE - TX¡C 3. ¤ä´© 32¦ì¤¸PCI 2.0/2.1/2.2 ¤ §¤¶-±¼Ð ·Ç¡C 4. ¤ä´©¨â-ÓRJ -11¹q¸Ü±µÀY¤Î¤@-Ó 10Mbps RJ -45 ¤A¤Óºô¸ô±µÀY¡C 5. - Page 17 ³nÅé¦w¸Ë¤è¦¡ Windows 2000 ¦w¸Ë¨BÆJ ½Ð±Ä¥Î¤U¦C¨BÆJ¦w¸Ë Windows 2000 ÅX°Êµ{¦¡¡G 1. ±N¹q¸£¹q·½Ãö¤W¡C 2. ±Nºô¸ô¥d´¡¤J¹q¸£ªº P CI ´¡¼Ñ¤º¡C 3. -«·s¶}¾÷¡C 4. ·í Windows 2000 ¶}©l°õ¦æ®É¡A¥¦·|¦Û°Ê ´ú¨ì Phoneline PCI Âà±µ¥d¡A¨Ã±N¨t²Î¤º ¤§ÅX°Êµ{¦¡¦Û°Ê±Ò°Ê¡C 5. W2000·|´£¥Ü¼Æ¦ìñ³¹Äµ§i¡A½Ð«ö”¬O ”¡A §¹¦¨§ó·s°Ê§@¡C 6. Windows ·|¦Û°Ê¦w¸ËÅX°Êµ{¦¡¡C 7. -«·s±Ò°Ê Windows ¨t²Î¡C Windows 95/98 ¦w¸Ë¨BÆJ 1.
