Panasonic HIT Double Photovoltaic modules General Installation Manual page 6

General Installation Manual
© Apr 2012, SANYO Electric Co., Ltd. All Rights Reserved
Connector Cable
MC Plug
TM
negative ( - )

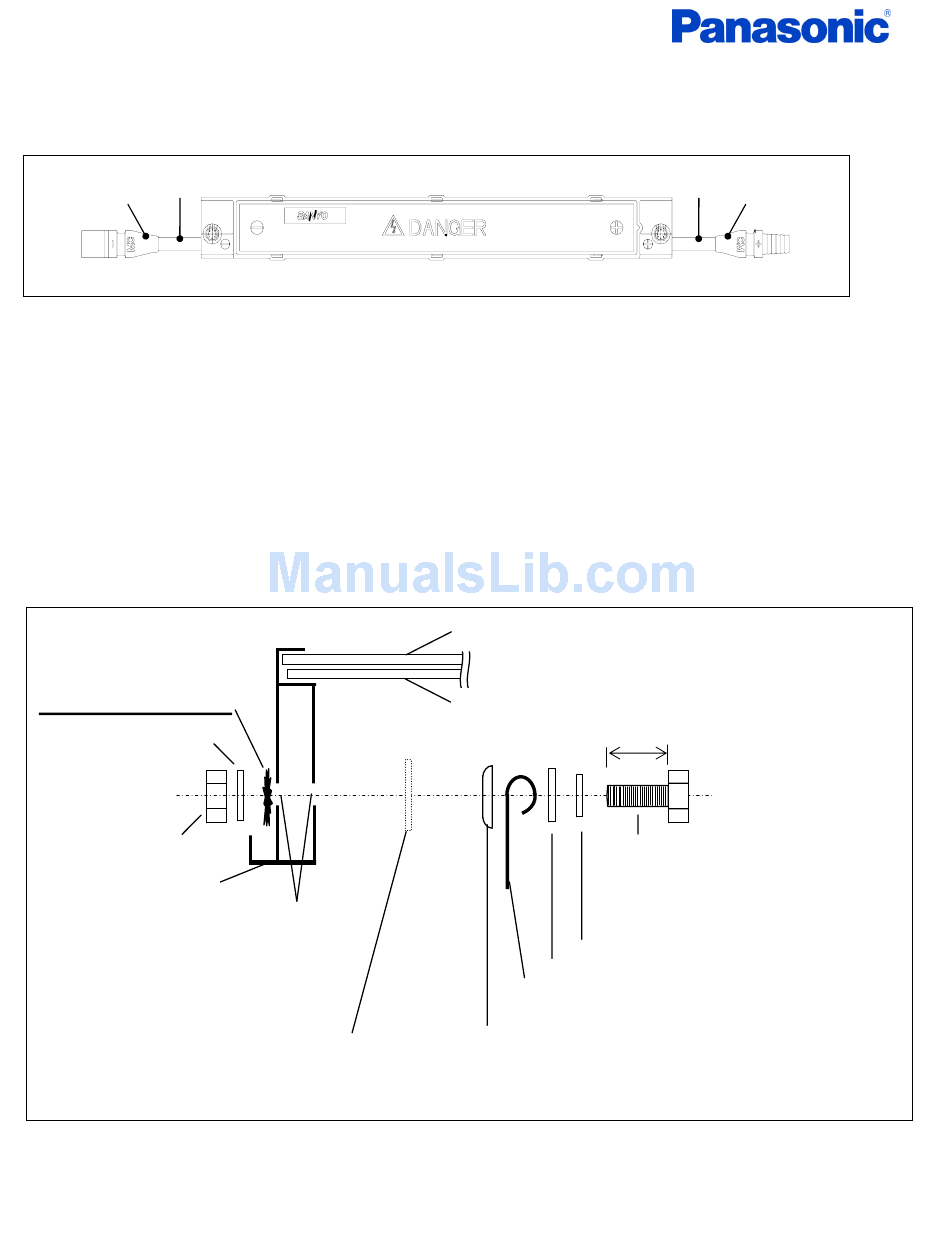

Figure 3-1. Configuration of Junction Box for VBHBxxxDA03
Star washer (Stainless steel)
Flat washer (Stainless steel)
Nut (Stainless steel)
Frame (Shorter side)
*Flat washer (Stainless steel)
*If using a brass cup washer, a flat washer must be inserted between the cup washer and module frame, and the flat
washer diameter must be greater than the cup washer diameter.
Grounding hole
(0.205" diameter
(5.2 mm))
Grounding method using cup washer
Glass
Glass
Spring washer (Stainless steel)
Flat washer (Stainless steel)
Ground wire (#12AWG)
(wound around the bolt)
Cup washer (Terminal cup)
(Stainless steel or *brass)
Figure 4.1
6
Cable Connector
MC
TM
positive ( + )
Length
(not less than 1.024"(26 mm)
not more than 1.26"(32 mm))
Bolt (Stainless steel)
#8, #10, M5.
Plug
