KitchenAid 8301169 Installation Instructions Manual page 6

36" (91.4 cm) commercial style dual fuel range with self-cleaning thermal/convection oven
Hide thumbs

Advertisement

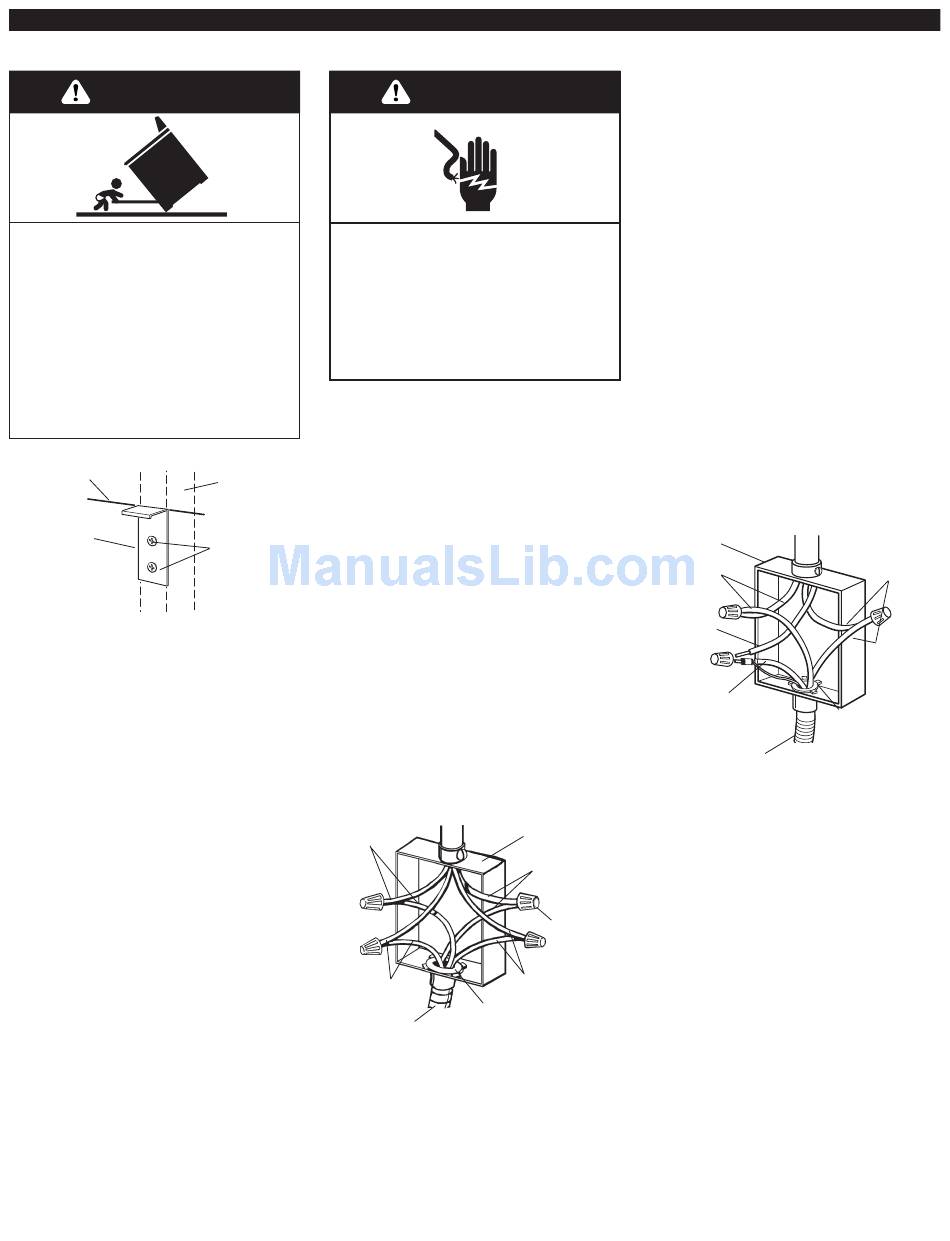

WARNING
Tip Over Hazard
A child or adult can tip the range
and be killed.
Connect anti-tip bracket to wall
behind range.
Reconnect the anti-tip bracket, if
the range is moved.
Failure to follow these instructions
can result in death or serious
burns to children and adults.
line
anti-tip
bracket
6.
Position top of anti-tip bracket at
line marked in step 5 and mark holes.
Drill two 1/8" (3 mm) holes. Use screws
provided to fasten anti-tip bracket to wall.
NOTE: Anti-tip bracket must be mounted
securely to stud in wall behind the range.
Depending on thickness of the wall
covering, longer screws may be required.
7.
Make electrical connection.
If your house has aluminum wiring, see
"Electrical requirements" page 5.
6
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground range.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
This range must be connected to a
grounded, metallic permanent wiring
system or a ground connector should be
connected to the ground terminal or wire
wall stud
lead on the range.
This range is manufactured with a frame-
connected, green or bare ground wire
factory-crimped to the neutral (white)
mounting
screws
wire. Connect the range cable to the
junction box through the U.L.- or CSA-
listed conduit connector. Complete
electrical connection according to local
codes and ordinances.
.
7A
Where local codes Do Not
permit connecting the frame-ground
conductor to the neutral (white) junction
box wire (also used for Canadian
installations):
4-wire cable from power supply
red wires
bare or green
wires
4-wire cable from range
Ungrounded neutral
1. Disconnect power supply.
2. Connect the flexible, armored cable
from the range to the junction box
using a U.L.- or CSA-listed conduit
connector. Tighten screws on conduit
connector.
WARNING
junction box
white wires
twist-on
connector
black wires
U.L.- or CSA- listed
conduit connector
Figure 1
3. Connect the two black wires
together; and the two red wires
together using twist-on connectors.
(See Figure 1.)
4. Separate the factory-crimped bare
and white range cable wires.
5. Connect the two white wires together
using twist-on connector.
6. Connect the bare ground wire from
the range cable to the grounded wire
in the junction box or other grounded
connector using twist-on connector.
(See Figure 1.) Do not connect bare
ground wire to neutral (white) wire in
junction box.
7B.
Where local codes permit
connecting the frame-ground conductor to
the neutral (white) junction box wire (not
used for Canadian installations):
3-wire cable from
power supply
junction
box
red
wires
white
wire
white and bare grounding
oven cable wires —
factory crimped
4-wire cable from range
Grounded neutral
Figure 2
1. Disconnect power supply.
2. Connect the flexible, armored cable
from the range to the junction box
using a U.L.- or CSA-listed conduit
connector. Tighten screws on conduit
connector.
3. Connect the two black wires together;
the two red wires together; and the
factory-crimped bare and white
cooktop cable wires to the white
(neutral) wire in the junction box using
twist-on connectors. (See Figure 2.)
black
wires
U.L.- or CSA- listed
conduit connector
