- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) 10−07 Litho In U.S.A. (dmm) Part No. W10138599 Rev. B...
-
Page 2: Cabinet Parts

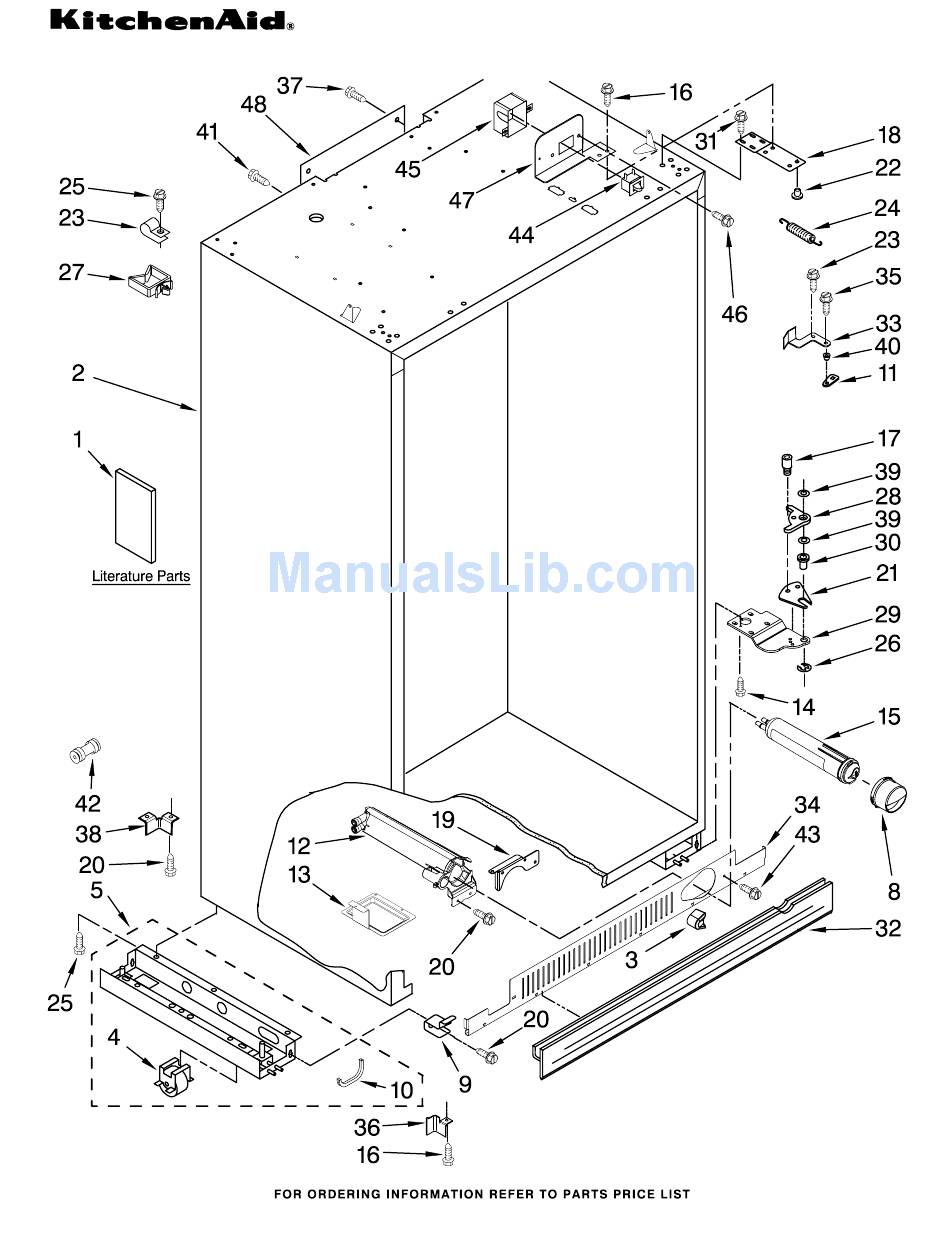

2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer 2260526 Housing, Water Filter 2318189 Tray, Drip Filter 3400525 Screw CABINET PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 4396841 Filter, Water 489399 Screw 3400230 Screw, Door Stop Hinge (Top) - Page 3 W10138599 CABINET TRIM PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132410 Black W10132411 Stainless Steel 1163283 Screw 2316686 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2313960B Black 2313960S Stainless Steel Cabinet Trim...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302867 Wire, Shelf (4) 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10138599... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10138599 For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316544 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2324971 Bracket, Control Box 2307594 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part 2313977B Black 2313977S Stainless Steel 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 489348 Clamp...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assy (4) 2179404 Rack, Wine 2302841 Assembly, Meat Pan Cover 2302834 Assembly, Crisper Cover 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599...
- Page 12 2182119 Scroll, Fan 2259465 Wedge, Air Duct 2302925 Bracket, Vent Tube 2307773 Air Duct 2198643 Lens Block, Fan Scroll 2209481 Right 2209066 Left For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215650 Cover, Emitter Liner (Not A Serviceable Part)
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part 2222960 Ice Bin 2222959 Crusher Bin 2320327 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) Trim, Screw Cover (Handle Side) 2314003B Black 2314003S Stainless Steel Hinge Assy, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599... - Page 18 FREEZER DOOR PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #14) W10130863 Black W10130864 Universal Silver 2304896 Saftey Barrier Hinge, Bottom 2252294B Black 2252294 Chrome 489282 Screw Hinge, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door...
- Page 21 UPPER UNIT PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599...
- Page 22 2256328 Bracket, Inverter 1157158 Screw 2307998 Condenser 2309431 Grommet (2) 2310207 Wire, Jumper 489399 Screw 2155774 Wire Tie UPPER UNIT PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2317982 Drier 2215641 Bracket, Fan Motor (Condenser Fan) 2206036 Motor, Fan...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215648 Damper, Heater 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 9 W10121370 Tube, Discharge...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) W10138599... - Page 26 2320559 Support, Valve 2198641 Bracket, Icemaker Cover 2305274 Clamp, Nylon Valve 2325170 Tube, Water Inlet 2257538 Cover 488500 Screw ICEMAKER PARTS For Models: KSSO36QTB00, KSSO36QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 20 W10122550 Mold & Heater (Also Order 542638 Silicone Grease)
