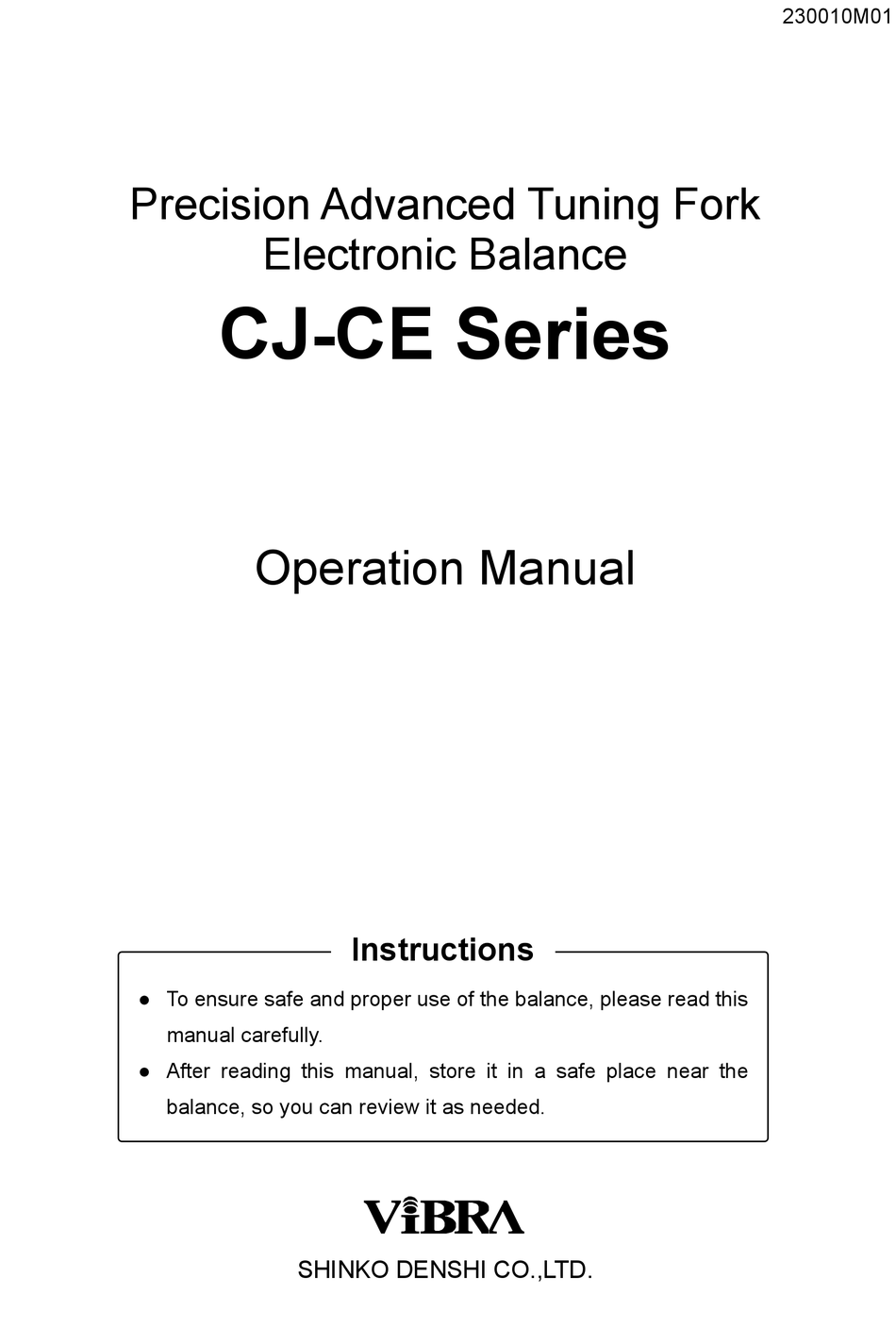

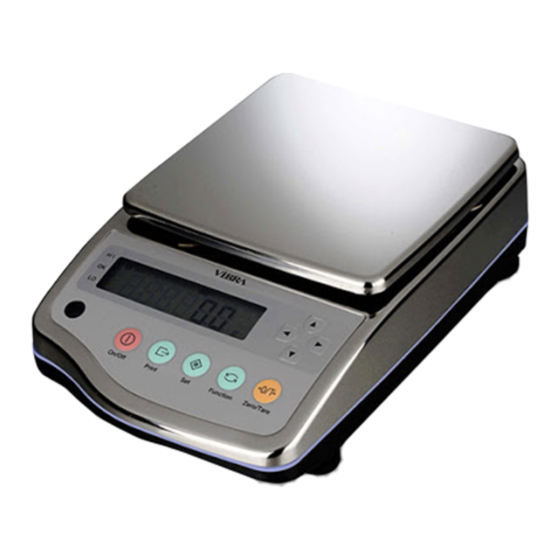

Precision Advanced Tuning Fork
Electronic Balance
CJ-CE Series
Operation Manual
● To ensure safe and proper use of the balance, please read this
manual carefully.
● After reading this manual, store it in a safe place near the
balance, so you can review it as needed.
Instructions

SHINKO DENSHI CO.,LTD.
230010M01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CJ series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vibra CJ series

Summary of Contents for Vibra CJ series

  • Page 1 230010M01 Precision Advanced Tuning Fork Electronic Balance CJ-CE Series Operation Manual Instructions ● To ensure safe and proper use of the balance, please read this manual carefully. ● After reading this manual, store it in a safe place near the balance, so you can review it as needed.

  • Page 3: Safety Precautions

    Safety Precautions Safety Precautions Before using the balance, please read this manual carefully. The nature of dangers and damages that may result in the event of improper operation are indicated under the following categories: DANGER This symbol indicates improper handling that may cause death or severe damage including serious injury.
  • Page 4 DANGER Do not disassemble Only use the or modify the unit. specified power Doing so could cause source. accidents such as Use of other types of injury, electrical power sources may shock, and fire, or result in heat malfunction. For generation, fire, or inspection and malfunction of the...
  • Page 5 Safety Precautions CAUTION When the balance Do not lay the AC is not waterproof adapter cable on and dustproof, do the surface of a not expose the passage. balance to rain, Somebody may trip on the cable, causing water, dust, or such the balance to fall, other environment.
  • Page 6 Avoid applying Do not use volatile excess force or solvents for impact to the cleaning. balance. The body may be distorted. To clean the To prevent breakage unit of stains, use a or malfunction, place piece of dry cloth or the sample to be cloth soaked in a measured on the...
  • Page 7 Safety Precautions Do not use the balance in the following places: Location where it Location where it may be subject to may be subjected air from an to abrupt changes air-conditioning in ambient unit: temperature or humidity: Extreme changes in the ambient Accurate temperature may...
  • Page 8 Respect the following: Be sure to calibrate Do not leave the the balance after balance installation or overloaded. (When relocation. it is overloaded, o-Err is displayed.) Measurement values may contain errors. To To prevent breakage maintain accurate or malfunction, measurement, be remove the sample sure to calibrate the placed on the balance...
  • Page 9 Safety Precautions Dispose of batteries in accordance with local regulations. -vii-...

  • Page 10: How To Read This Manual

    Notational conventions In this manual, the following notation is used. The balance Refers to a CJ series product. Measure Refers to measuring a sample by placing it on the pan. Other expressions such as “weigh” and “measure weight” may also be used.

  • Page 11: Table Of Contents

    Contents Contents Safety Precautions ......................i How to Read this Manual ....................viii Notational conventions......................viii Contents .......................... ix Checking Supplied Items ..................2 Names and Functions of Component Parts ............3 Workings of Operation Keys .................5 How to See Displayed Signs.................6 Assembling and Installing the Balance ..............8 Assembling the balance ......................
  • Page 12 Judging “Above” and “Below” (Limit Function)............36 How to judge ....................... 36 Judgment criteria and limit value setting..............36 Detailed function setting ....................37 Limit function setting ........................ 38 Judging by absolute values...................... 39 Judging by absolute values using the method of placing actual samples on the balance ............................

  • Page 13: Contents

    Contents Procedure for transmission..................67 Sample input commands ..................... 67 Command form......................67 Command format......................68 Response..........................71 Error Messages ....................74 Troubleshooting....................76 Initializing......................79 Maintenance......................80 For heavy dirt ........................... 80 How to take care of the balance....................80 Appendix 1 Function Setting List .................82 Appendix 2 Measurement Mode List ................85 Appendix 3 Printing in Compliance with ISO/GLP/GMP ..........86 Appendix 4 Specifications....................88...

  • Page 15: How To Begin

    Chapter 1 How to Begin This chapter describes the operations required before using the balance, starting from assembling the main unit to turning the power switch on and off. Before your first use of the balance, be sure to read this chapter. This chapter includes: Checking Supplied Items Names and Functions of Component Parts...

  • Page 16: Checking Supplied Items

    How to Begin 1-1 Checking Supplied Items The following items are contained in the box. In the unlikely event of problems such as missing or broken items, please contact the retailer from whom the balance was purchased or our Sales Office (See the Appendix at the end of this manual).

  • Page 17: Names And Functions Of Component Parts

    1-2 Names and Functions of Component Parts 1-2 Names and Functions of Component Parts Level Indicates the inclination of the balance. Adjuster Use to adjust the inclination of the Display Operation Keys unit by turning them right or left. Refer to “Workings of Operation Keys”...
  • Page 18 How to Begin When not using the balance, be sure to attach the AC adapter jack cap, connector cover, and the rubber cap and the cover on the bottom to prevent water and dust from entering the unit. Note that the waterproofing and dustproofing functions do not work in the following situations: 注...

  • Page 19: Workings Of Operation Keys

    1-3 Workings of Operation Keys 1-3 Workings of Operation Keys The operation keys are provided on the front of the main unit. Use these keys to operate and set the balance. Direction key: Use to set the function setting, etc. [Zero/Tare] key: Use to zero a [On/Off] key: Use to power on/off [Set] key: Use to...

  • Page 20: How To See Displayed Signs

    How to Begin 1-4 How to See Displayed Signs Each of the signs displayed on the front of the main unit has the following meanings: Displayed sign Description Stable state indicator (Indicates that readout is stable.) Lights up when the limit function is used. Indicates that the addition function is enabled when the balance is in addition mode.
  • Page 21 1-4 How to See Displayed Signs Lights up when sum totals are displayed (shared use together with other readout units) when the addition function is used. Indicates that the balance is in parts counting mode. Indicates that the balance is in unit covering mode. Indicates the unit momme.

  • Page 22: Assembling And Installing The Balance

    How to Begin 1-5 Assembling and Installing the Balance Assembling the balance Assemble the main unit with the following steps: Attach the pan base. Place the pan base by aligning it to the projections Align the hole of the pan Fix the pan base by provided on the main unit and then fix it by turning base to the projection of...
  • Page 23 1-5 Assembling and Installing the Balance Use the balance in a horizontal position. By using the level provided on the front of the main unit and the adjuster provided on the bottom, the inclination of the main unit can be corrected and checked. Adjust the inclination of the unit so that the air bubble in the level fits within the circle.

  • Page 25: Basic Operation

    Chapter 2 Basic Operation This chapter describes how to use basic measuring functions that are used daily. This chapter includes: Powering On/Off the Balance and Checking Operation Weighing by Placing a Sample in a Container (Tare) Weighing an Added Sample Displaying the Sum of the Container and the Sample Function Setting Basics...

  • Page 26: Powering On/Off The Balance And Checking Operation

    Basic Operation 2-1 Powering On/Off the Balance and Checking Operation Turning the power of the balance on and off Turn the power on. Press the [On/Off] key. The scale switches to weight display after the zero point check finishes. →0← ...

  • Page 27: Weighing By Placing A Sample In A Container (Tare)

    2-2 Weighing by Placing a Sample in a Container (Tare) 2-2 Weighing by Placing a Sample in a Container (Tare) When measuring weight with the sample in a container (tare), only the sample is weighed by subtracting the weight of the container. This is called “tare.” Place the container on the pan.

  • Page 28: Weighing An Added Sample

    Basic Operation 2-3 Weighing an Added Sample Place an additional sample. Only the added weight is measured. Place the sample. The weight of the placed sample is displayed.  .  ｇ Set the tare. Press the [Zero/Tare] key. The readout becomes zero (tare range setting). →0←...

  • Page 29: Displaying The Sum Of The Container And The Sample

    2-4 Displaying the Sum of the Container and the Sample 2-4 Displaying the Sum of the Container and the Sample The sum weight of the sample and the container is displayed (gross weight readout). A gross weight can only be displayed when the balance functions as a weighing 注...

  • Page 30: Function Setting Basics

    Basic Operation 2-5 Function Setting Basics To set the settings of the balance, use the function keys. This section describes the basic operations of function setting Pressing the [Print] key when a function is being set can cancel the setting and return to 参...
  • Page 31 2-5 Function Setting Basics For the items and settings settable by the function capability, refer to “Appendix 1: Function 参 考 Reference Setting List” (P. 82). To initialize the function setting, refer to “Section 7-3: Initializing” (P. 79). Function setting is possible with the direction keys. After switching to the function setting mode with step 1, use the direction (arrow) keys to change setting items and settings.
  • Page 33 Chapter 3 Various Measuring Methods In addition to weighing, the balance has the following measuring modes: parts counting, percentage weighing, unit converting, gravimeter, and animal weighing. This chapter includes: Weighing (Weighing Machine) Counting Parts Count Measuring Percentage Measuring Specific Gravity Weighing an Animal (*Only possible when the lock switch is off) Adding Multiple Measurements Evaluating “More”...

  • Page 34: Weighing (Weighing Machine)

    Various Measuring Methods 3-1 Weighing (Weighing Machine) By default, the balance is set to “weighing machine” mode. To return to weighing machine mode from other weighing modes, use the following operation: Set to the function setting mode. Press and hold the [Function] key. After “” is displayed, release the finger.

  • Page 35: Counting Parts Count

    3-2 Counting Parts Count 3-2 Counting Parts Count The balance saves sample weight (unit weight) using the automatic memory update method (simplified SCS method) to count the number of samples. First, place a set number of samples. Next, place an appropriate number of additional samples, up to three times the set number.

  • Page 36: Displaying Average Sample Weight

    Various Measuring Methods Put additional samples. Put additional samples. The number of additional samples is up to three times the set number of samples. For example, if “10 Pcs” is set, add 30 or less samples. A blip sound reports you that added samples have been measured.

  • Page 37: Measuring Percentage

    3-3 Measuring Percentage 3-3 Measuring Percentage With respect to the reference sample weight, the weight of a sample is shown in percentage. A reference sample weight can be set by weighing an actual sample (setting a reference weight by weighing an actual sample) or entering a value ( setting a reference weight by entering a value ).

  • Page 38: Setting A Reference Weight By Entering A Value

    Various Measuring Methods Setting a reference weight by entering a value Set to the function setting mode. Press and hold the [Function] key. After “” is displayed, release the finger. (Refer to “Section 2-5: Function Setting Basics (P. 16).) Select “Percentage Weighing.” Press the [Zero/Tare] key several times to select “...
  • Page 39 3-3 Measuring Percentage Weigh. The display indicates the percentage of the sample with respect to the reference sample weight. Pressing the [Function] key toggles the display between percentage weight and total weight. The minimum unit is automatically set based on the saved reference weight. Min.

  • Page 40: Measuring Specific Gravity

    Various Measuring Methods 3-4 Measuring Specific Gravity The specific gravity of a sample is measured using the underfloor weigher function. The “CJ underfloor weigher fixture option” is required (Refer to “Appendix 4 注 意 Caution Specifications” (P. 88). Measurement procedures for specific gravity Measure specific gravity with the following steps: 1.

  • Page 41: Measurement

    3-4 Measuring Specific Gravity Measurement Set to the function setting mode. Press and hold the [Function] key. After “” is displayed, release the finger. (Refer to “Section 2-5: Function Setting Basics (P. 16).) Select “Gravimeter.” Press the [Zero/Tare] key several times to select “...
  • Page 42 Various Measuring Methods turned off. The acceptable range of water temperature is 0 to 99.9°C. Pressing the [Print] key can cancel the setting. Save the water temperature. Press the [Set] key. Hang only the cage to zero the weight Hang only the cage on the underfloor weigher readout.

  • Page 43: Using A Liquid Medium Other Than Water

    3-4 Measuring Specific Gravity Using a liquid medium other than water Set to the function setting mode. Press and hold the [Function] key. After “” is displayed, release the finger. (Refer to “Section 2-5: Function Setting Basics (P. 16).) Select “Gravimeter.” Press the [Zero/Tare] key several times to select “...
  • Page 44 Various Measuring Methods Set language for printing by the function setting “” (language for printing) (1 = English/2 = Japanese). -30-...
  • Page 45 3-4 Measuring Specific Gravity Gravimeter measurement data output samples ■When water is selected English 　Japanese（Katakana） DENSITY SOLID ｺﾀｲﾋｼﾞｭｳ 2.751 2.751 ←Specific gravity of solid SAMPLE WEIGHT ｼﾞｭｳﾘｮｳ 21.7 g 21.7 g ←Sample weight TEMPERATURE NOW ｼﾞﾂｽｲｵﾝ 15.0 c 15.0 c ←Actual water temperature ■When other than water is selected English...

  • Page 46: Weighing An Animal

    Various Measuring Methods 3-5 Weighing an Animal *Animal weighing can only be performed when the lock switch is off. The balance can accurately weigh animals and other samples that move during measurement. Even if animals and other such moving samples move during measurement, if weight variations fit within a set value range, the measured value is held (fixed) and displayed.
  • Page 47 3-5 Weighing an Animal If the animal moves too much, the value may not be held. The measurement unit used in animal weighing is “g” only. 注 意 Caution In animal weighing, because stability detection ranges are wide, errors may occur compared to actual weight.

  • Page 48: Adding Multiple Measurements

    Various Measuring Methods 3-6 Adding Multiple Measurements Multiple samples are weighed consecutively and the sum is displayed. The weighing method can be selected from reloading samples (cumulate function) or without replacing samples (net addition function). The addition function can be used in the following weighing modes: weighing machine, parts 参...

  • Page 49: Weighing With Addition Function

    3-6 Adding Multiple Measurements Weighing with addition function Place the first sample. After an asterisk (*) is displayed, press the [Set] key. The measured value is saved and a sigma [Σ] sign is displayed for several seconds. Place another sample (cumulative). After an asterisk (*) is displayed, press the [Set] key.

  • Page 50: Judging "Above" And "Below" (Limit Function)

    Various Measuring Methods 3-7 Judging “Above” and “Below” (Limit Function) By setting values in the balance, you can judge whether measured values fit within set ranges. The limit function can be used in the following weighing modes: weighing machine, parts 参...

  • Page 51: Detailed Function Setting

    3-7 Judging “Above” and “Below” (Limit Function) A limit value can be entered in the following two ways: - Putting actual samples on the balance: By weighing a sample on the balance, save the weight. - Entering values: Set a value using the keys. Detailed function setting In the function setting function, the limit function can be set in detail.

  • Page 52: Limit Function Setting

    Various Measuring Methods Limit function setting First, set the limit function. Then, set limit values. Set to the function setting mode. Press and hold the [Function] key. After “” is displayed, release the finger. (Refer to “Section 2-5: Function Setting Basics (P. 16).) Select Limit Function.

  • Page 53: Judging By Absolute Values

    3-7 Judging “Above” and “Below” (Limit Function) Save the setting. Press the [Set] key. Then, set the values for judgment (limit values) to perform measurement. Judging by absolute values The function setting for absolute value judgment is “ ” . Judging by absolute values using the method of placing actual samples on the balance Set upper and lower limits by weighing samples.

  • Page 54: Judging By Absolute Values Using The Method Of Entering Values

    Various Measuring Methods Judging by absolute values using the method of entering values Set upper and lower limits by entering values using the keys. Check that the limit function is set for judging by absolute values (Refer to the previous section “Limit function setting”).

  • Page 55: Judging By Deviation Values

    3-7 Judging “Above” and “Below” (Limit Function) Judging by deviation values The function setting for deviation value judgment is “ .” Judging by deviation values using the method of placing actual samples on the balance Set a reference, upper limit, and lower limit values by weighing samples. Check that the limit function is set for judging by deviation values (refer to the previous section “Limit function setting”).

  • Page 56: Judging By Deviation Values Using The Method Of Entering Values

    Various Measuring Methods Judging by deviation values using the method of entering values Set a reference, upper limit, and lower limit values by entering values using the keys. Check that the limit function is set for judging by deviation values (Refer to the previous section “Limit function setting”).
  • Page 57 3-7 Judging “Above” and “Below” (Limit Function) Weigh. Place a judgment target sample on the pan. The OK, LO, or HI result judged from the upper and lower limit values is displayed with the “” indication. -43-...

  • Page 59: Adjusting The Scale

    Chapter 4 Adjusting the Scale Calibrate the balance using weights. This chapter includes: How to Calibrate Testing the Balance...

  • Page 60: How To Calibrate

    Adjusting the Scale 4-1 How to Calibrate *Can only be used when the lock switch is off. To calibrate a balance is called span adjustment. Be sure to perform span adjustment for highly accurate measurements. An electronic balance is influenced by the acceleration of gravity. For this reason, you should calibrate your balance every time you relocate it.
  • Page 61 4-1 How to Calibrate Place the weight on the pan. After zero-point adjustment finishes and the display changes to “ ”, place the weight on the pan.   Adjustment starts. Span adjustment starts. After display changes to the blinking of “  ”, span adjustment starts.

  • Page 62: Testing The Balance

    Adjusting the Scale 4-2 Testing the Balance The amount of offset with respect to the reference weight can be checked. This is called “span test.” Performing a span test will not calibrate the balance. Use a weight for calibration that weighs 50% of the weighing capacity or heavier. To calibrate 参...
  • Page 63 Chapter 5 Function Setting Set the functions of the balance. This chapter includes: Using Two Expression Units by Switching Them Power Setting ID No. Setting Improving the Stability of the Balance...

  • Page 64: Using Two Expression Units By Switching Them

    Function Setting 5-1 Using Two Expression Units by Switching Them You can set two units (unit A and unit B) and switch between the units. Unit B can be used only in weighing machine mode. Unit A can be used in all measurement 参...

  • Page 65: Power Setting

    5-2 Power Setting 5-2 Power Setting Auto Power Off This function, which is only available when the balance is operated by batteries, turns off the balance automatically if left untouched for about five minutes. Set to the function setting mode. Press and hold the [Function] key.

  • Page 66: Auto Backlight Off

    Function Setting Auto Backlight Off This function automatically turns off the backlight if the balance is left untouched in measurement mode for about three minutes. Set to the function setting mode. Press and hold the [Function] key. After “” is displayed, release the finger. (Refer to “Section 2-5: Function Setting Basics (P.

  • Page 67: Id No. Setting

    5-3 ID No. Setting 5-3 ID No. Setting Results of successfully completed span adjustments and span tests can be printed by ISO/GLP/GMP compliant devices. Set the ID numbers printed together at this printing. In situations such as when the same model is used, you can assign numbers that allow you to control them easily.
  • Page 68 Function Setting Save the ID number. Press the [Set] key. Display changes to “ ” . Pressing the [Set] key again returns the balance to normal display. -54-...

  • Page 69: Improving The Stability Of The Balance

    5-4 Improving the Stability of the Balance 5-4 Improving the Stability of the Balance When the balance is stable, “ ” is lit in the upper left of the display. When displayed values flicker and stabilized display blinks, it indicates that the balance is influenced by wind or vibration.

  • Page 71: External Devices

    Chapter 6 Input/Output to/from External Devices Balance data can be output to a printer and be input and output to/from external devices via the RS-232C interface. This chapter includes: Outputting to a Printer Connecting to External Devices via RS-232C Interface Communication Data and Commands...

  • Page 72: Outputting To A Printer

    Input/Output to/from External Devices 6-1 Outputting to a Printer By connecting a printer to the balance, span adjustment and span test results and measurement results can be printed in ISO/GLP/GMP compliant form. For printing examples, refer to “Appendix 3: Printing in Compliance with ISO/GLP/GMP” 参...

  • Page 73: Printing Measurement Results

    6-1 Outputting to a Printer Perform span adjustment or span test. After span adjustment or test is successfully completed, the printer executes printing. While the data is being printed, the balance may seem to not be moving, but wait until printing is completed. No printing is executed if span adjustment or test is not successfully completed.

  • Page 74: Connecting To External Devices Via Rs-232C Interface

    Input/Output to/from External Devices 6-2 Connecting to External Devices via RS-232C Interface The balance inputs and outputs from and to external devices such as a PC via the RS-232C interface. The RS-232C interface equipped on the balance is a D-SUB9P type. The connection with external devices is established with the following specifications: Disconnect the AC adapter of the balance before connecting external devices.

  • Page 75: Sample Connection With A Pc

    6-2 Connecting to External Devices via RS-232C Interface You can set a tare range or adjust the zero-point from an external device by connecting a contact or a transistor switch between the pin for externally setting a tare range (Pin 9) to 参...

  • Page 76: Interface Specifications

    Input/Output to/from External Devices Interface specifications Transmission system Serial transmission, Start-stop synchronization Transmission rate 1200/2400/4800/9600/19200 bps Transmission codes ASCII codes (8/7 bits) Signal level Compliant with EIA RS-232C HIGH level (data logic 0): +5 to +15 V LOW level (data logic 1): -5 to -15 V Bit configuration Start bit: One bit Data bits: 8/7 bits...

  • Page 77: Communication Data And Commands

    6-3 Communication Data and Commands 6-3 Communication Data and Commands The RS-232C interface exchanges data with external devices as follows: Output data 出力データ (Measurement data, etc.) （測定データなど） Input command 入力コマンド 外 は (Used to control the balance externally) 部 （本製品を外部から制御） か...

  • Page 78: Data Format

    Input/Output to/from External Devices Data format - 6-digit numeric format Consists of 14 characters including terminators (CR = 0DH/LF = 0AH). - 7-digit numeric format Consists of 15 characters including terminators (CR = 0DH/LF = 0AH). A parity bit can be appended.
  • Page 79 6-3 Communication Data and Commands When expression units are changed or switched to display of parts counting, percentage weighing, or unit converting, the decimal place is changed (Refer to “ Sample communication formats” (P. 66)). [U1, U2] (two characters) Indicates the unit used to show numeric data. Code Meaning Balance indicator...
  • Page 80 Input/Output to/from External Devices Sample communication formats - 6-digit numeric format 3000.1 g/No data type specified/Data stable (SP) (SP) 7.5 ct/Gross/Data unstable 250 pcs./Cumulative value/Data stable (SP) - 7-digit numeric format 3000.1 g/No data type specified/Data stable (SP) (SP) 7.5 ct/Gross/Data unstable 250 pcs./Cumulative value/Data stable (SP) -66-...

  • Page 81: Input Commands

    6-3 Communication Data and Commands Input commands An input command is to control the balance from an external device. The following four input commands are supported: (1) Tare range command (2) Set output control command (3) Set measurement mode command (4) Span adjustment/test command Procedure for transmission (1) An input command is sent from an external device to the balance.

  • Page 82: Command Format

    Input/Output to/from External Devices Command format (1) Tare range (zero-point adjustment) command Code (C1) Code (C2) Description Value Response A00: Successful completion E01: Command error - Tare range setting E04: A tare range (SP) - Zero-point None (zero-point adjustment adjustment) cannot be set (Range violation, weight error, etc.).
  • Page 83 6-3 Communication Data and Commands (2) Set output control command Code (C1) Code (C2) Description Response -{}-30H Stop output. Output continuously at all times. Output continuously if stable (Stop output if unstable). Output once when the [Print] key is pressed (whether the balance is stable or unstable).
  • Page 84 Input/Output to/from External Devices (3) Set measurement mode command Code (C1) Code (C2) Description Response Set to Mode 1 A00: Successful completion Set to Mode 2 E01: Command error Set to Mode 3 E02: Error Set to Mode 4 * The measurement mode to be activated by the above mode settings 1 to 4 depends on the weighing mode currently in use.

  • Page 85: Response

    6-3 Communication Data and Commands Response Upon receiving an input command, the balance sends out a response. You can select the response format of either the [“A00”/“Exx”] format or the [ACK/NAK] format. In the explanation of “input commands” in the previous section, the [“A00”/“Exx”] format responses are described.
  • Page 87 Chapter 7 Troubleshooting This chapter describes troubleshooting including error messages and remedies. This chapter includes: Error Messages Troubleshooting Initializing Maintenance...

  • Page 88: Error Messages

    Troubleshooting 7-1 Error Messages Message Cause Remedy - The weight of the sample is over the - Unload the sample to weigh it in  some portioned-out measurements. weighing capacity - Replace the tare with a lighter one. - If the error message does not disappear even when nothing is placed on the pan, mechanical parts may have failed.
  • Page 89 7-1 Error Messages balance influenced static - Unplug the AC adapter from the  electricity or noise. receptacle and then turn the power on again. - If this error occurs again, electric components may have failed. Contact our Sales Office or Technical Service Division.

  • Page 90: Troubleshooting

    Troubleshooting 7-2 Troubleshooting Problem Cause Remedy Nothing is displayed even when The AC adapter is not connected. - Check that the AC adapter is the balance is powered on. connected. - If nothing is displayed even if the AC adapter is properly connected, electric components of the balance, or...
  • Page 91 7-2 Troubleshooting Problem Cause Remedy Weight indication contains an The balance may have been The balance may be affected by error even after calibrated. affected by an external influence an external influence such as such as wind and vibration wind vibration.
  • Page 92 Troubleshooting Problem Cause Remedy No outputs Intended output function settings Make the balance compatible in are not established. communication conditions with the external device by referring Communication conditions to their operation manuals. disagree with the external device. Check outputs with the following methods: Initialize the function settings by referring...

  • Page 93: Initializing

    7-3 Initializing 7-3 Initializing The settings of the balance can be initialized with the following steps: Set to the function 2 setting mode. Press the [Function] key while pressing the [Zero/Tare] key. Release the fingers when “ ” is displayed. ...

  • Page 94: Maintenance

    Troubleshooting 7-4 Maintenance When taking care of the balance, be careful of the following: For heavy dirt If the balance is very dirty, disassemble and clean it. The parts that you can remove are only the pan and the pan base. Pan base Removing parts other than the pan and the pan base damages the waterproof function 注...
  • Page 95 Appendixes Appendixes The appendixes provide data including each type of data for the balance. This chapter includes: Function Setting List Measurement Mode List Printing in Compliance with ISO/GLP/GMP Specifications...

  • Page 96: Appendix 1 Function Setting List

    Appendix 1 Function Setting List 1：重量はかり ☆ Weighing mode 1: Weighing machine はかりの種類  ☆は、初期値です。 A star ( ) denotes an initial value. 2: Parts counting 2：個数はかり 3: Percentage weighing 3：パーセントはかり 5: Gravimeter (Measuring specific gravity of a solid) 5：比重はかり（固体比重測定） 6: Animal weighing (*Only displays when the lock 6：動物はかり...
  • Page 97 Appendix 1 Function Setting List A star ( ) denotes an initial value. ☆は、初期値です。 Auto-zero オートゼロ 0：停止 Disabled  1：動作 ☆ Enabled Stability judgment 安定判別 Wide (Mild)  2：広い（緩やか）☆ 3： Narrow (Strict) 4：狭い（厳密） Response speed 応答速度  0：はかり込み計量時 Measurement by consecutive weighings 1：速い...
  • Page 98 ☆は、初期値です。 A star ( ) denotes an initial value. 0：CAL操作無効 CAL operation disabled Span  スパン調整/ 3：外部分銅によるスパン調整 Span adjustment with external weight (Only available when the lock switch is off) adjustment/test スパンテスト 4：外部分銅によるスパンテスト ☆ Span test with external weight Bar graph バーグラフ...

  • Page 99: Appendix 2 Measurement Mode List

    Appendix 2 Measurement Mode List Appendix 2 Measurement Mode List In each weighing mode, pressing the [Function] key can toggle the function displayed. Displayable functions differ between modes. The additional functions usable concurrently in each function also differ. Displayed functions switched at each [Function] key Additional function Remarks press...

  • Page 100: Appendix 3 Printing In Compliance With Iso/Glp/Gmp

    Appendix 3 Printing in Compliance with ISO/GLP/GMP Span adjustment with external weight English Japanese (katakana) Span test with external weight Japanese (katakana) English -86-...
  • Page 101 Appendix 3 Printing in Compliance with ISO/GLP/GMP Measurement data: Header Japanese (katakana) English Measurement data: Footer Japanese (katakana) English The date and time shown in printing examples are printed only when the dedicated 注 意 Caution printer (CSP-160 or CSP-240) is used. -87-...

  • Page 102: Appendix 4 Specifications

    Appendix 4 Specifications Basic specifications Parts counting Percentage Gram [g] Dimension Weighing Minimum Scale Lower Model Accuracy Minimum unit capacity range interval Weight limit class weight [g] pan [mm] (Max) (Min) (e=d) CJ-220CE CJ-320CE φ140 0.01 0.01 CJ-620CE CJ-820CE Class II CJ-2200CE 2200 CJ-3200CE 3200 190 ×...
  • Page 103 Appendix 4 Specifications Output RS-232C compliant output is equipped as standard. SHINKO DENSHI standard format D-SUB9P male (RS-232C output, port for external tare range setting, bi-directional) Supported printer: CSP-160/CSP-240 (SHINKO DENSHI) Span adjustment Span adjustment/test with external weights (Weights used are at least 50% of the weighing capacity) * Only the unit g can be used for span adjustment.

  • Page 104: Minimum Display By Unit Of Measurement

    Minimum Display by Unit of Measurement Model 220CE 320CE 620CE 820CE Unit_of measuremant 0.01 0.01 0.01 0.01 0.22 0.32 0.62 0.82 0.0002 0.0002 0.0002 0.0002 0.00001 0.00001 0.00001 0.00001 1100 1600 3100 4100 (ct) 0.05 0.05 0.05 0.05 Model 2200CE 3200CE 6200CE 8200CE...

  • Page 105: Appendix 5 Conversion Table Units

    Appendix 5 Conversion Table Units Appendix 5 Conversion Table Units Unit Gram kilo gram carat 0.001 1 kg 1000 5000 1 ct 0.0002 -91-...

  • Page 106: Index For Terms

    Index for Terms Absolute value ............37 Net................15 AC adapter..............2, 8 Net addition.............. 35 Adjuster ..............9 Number of samples........... 21 Animal ..............32 Auto backlight off.............52 Operation key ............. 5 Auto power off............51 Average sample weight..........22 Pan..............2, 8, 80 Pan base............2, 8, 80 Bar graph ............12, 37 Percentage ..............
