This section describes the front panel of the PA-3000 Series firewalls.
•
"PA-3020 and PA-3050 Front Panel" on page 6
•
"PA-3060 Front Panel" on page 7

PA-3020 and PA-3050 Front Panel

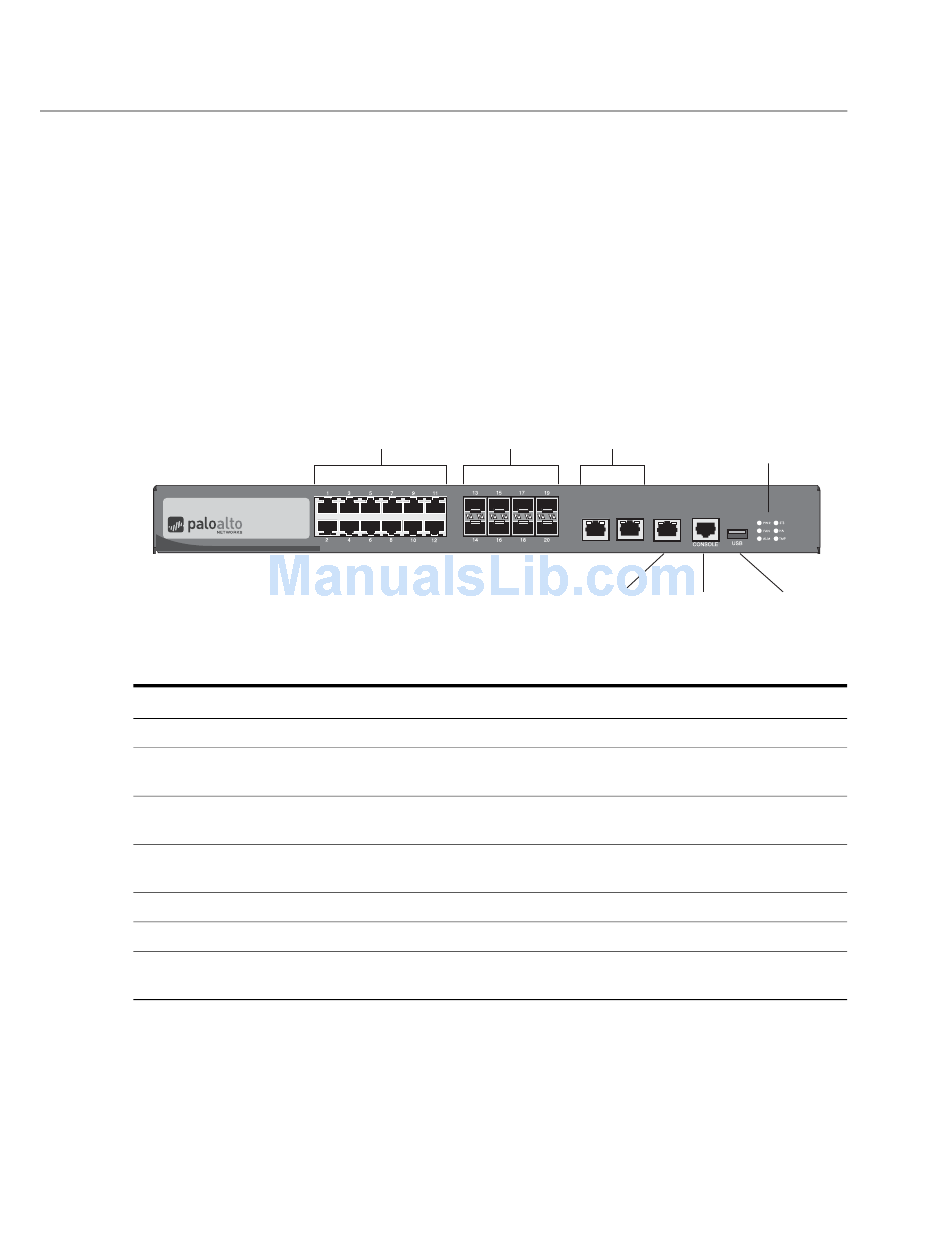

Figure 1 shows the front panel of the PA-3020 and PA-3050 firewalls and Table 1 describes the
front-panel features.
Figure 1. PA-3020 and PA-3050 Front Panel
Table 1. PA-3020 and PA-3050 Front-Panel Features
Item
Ethernet ports
SFP ports
High-availability (HA) ports
Management port
Console port
USB port
Status LEDs
6 • Overview
Ethernet SFP
ports ports
Description
Twelve RJ-45 10/100/1000 ports for network traffic.
Eight Small Form-Factor Pluggable (SFP) 1 Gbit/s ports for network
traffic.
Two RJ-45 ports for high-availability (HA) control and
synchronization.
One RJ-45 port to access the device management interfaces through
an Ethernet interface.
One RJ-45 port for connecting a serial console.
One USB port for future use.
Six LEDs indicating system status. Refer to "Interpret the Device
LEDs" on page 18 for LED definitions.
HA
Status
ports
LEDs
HA1 HA2
MGT
Management Console
port port
Palo Alto Networks
PA-3050
USB
port
