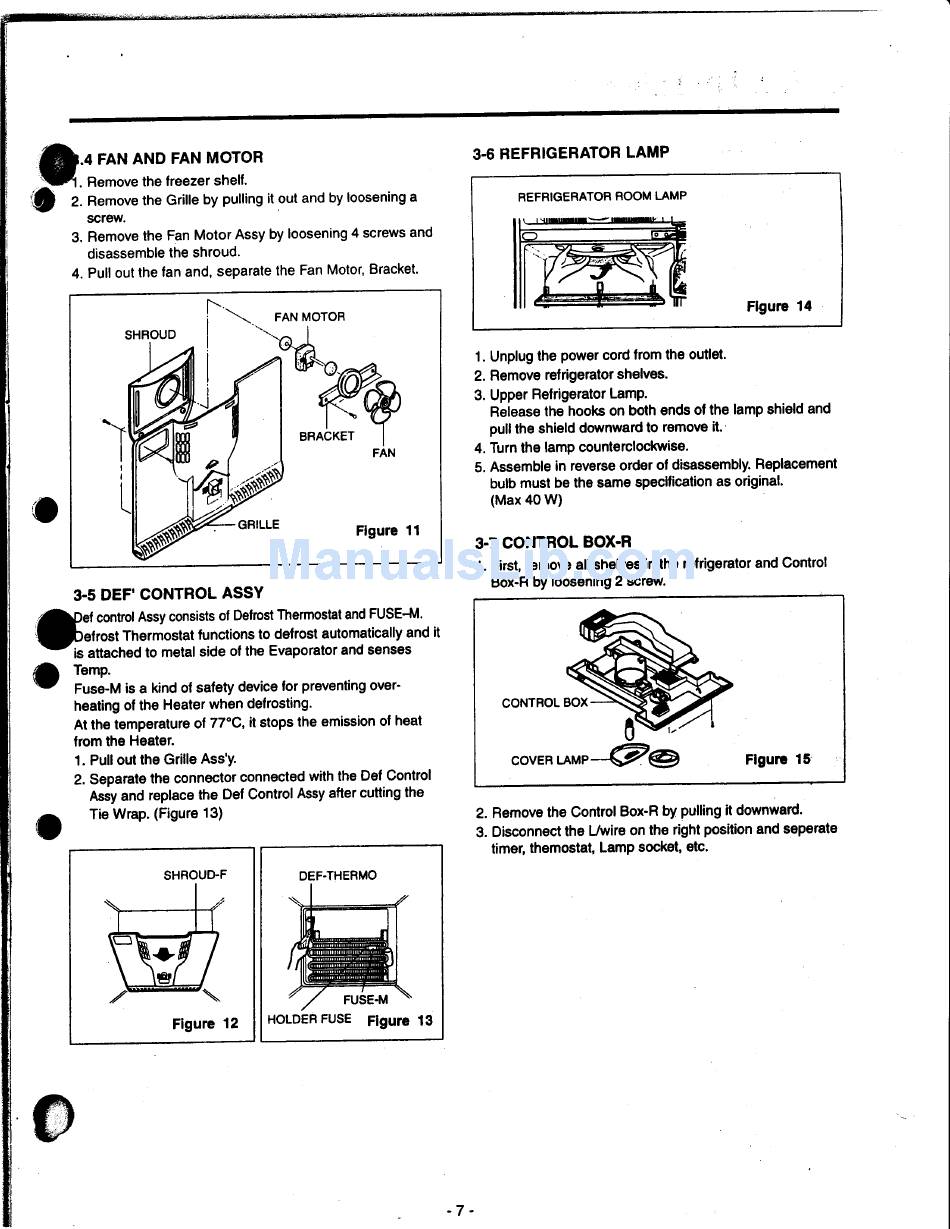

FAN AND FAN MOTOR
E
lFi.
Fiemove Ine lreezer sner'
r.-, 'A
2. Remove the Grille by pulling it out and by loosening a
screw.
3. Remove lhe Fan Motor Assy by loosening 4 screws and
disassemble the shroud.
4. Pull out the tan and, separate the Fan Motor, Bracket'
FAN MOTOR
SHROUD
'J
I
BRACKET
Flgure 11
3.5 DEF'CONTROL ASSY
ef control Assy consists ol Defrost Thermostat and FUSE-M.
efrost Thermostat functions to defrost automatically and it
is attached to metal side ol the Evaporator and senses
Temp.
Fuse-M is a kind of safety device for preventing over'
heating of the Heater when defrosting.
At th€ temperature of 77"C,il stops the emission ol heat
from the Heater.
'1. Pullout the Grille Ass'Y.
2. Separate the connector connected with the Def Control
Assy and replace the Def Control Assy atter cutling the
Tie Wrap. (Figure 13)
3-6 REFRIGERATOR
LAMP
REFRIGERATOR ROOM LAMP
Flgure 14
1. Unplug the power cord from the outlet.
2. Remove relrigerator shelves.
3. Upper Refrigerator LamP.
Release the hooks on both ends ol the lamp shield and
pullthe shield downward to remow it.
4. Turn the lamp counterclochrise.
5. Assemble in reverse order of disassembly. Replacemenl
bulb must be the same speclfication as original.
(Max 40W)
3.7 CONTROL BOX.B
1. First, remove all shelves in the relrigerator and Control
Box-R by loosening 2 screw
Flguru 15
2. Remove the Control Box'R by pulling it downward.
3. Disconnect the Uwire on the right position and seperate
timer, themoslat, LamP socket, stc.
SHROUD.F
Flgurc 12
DEF.THEFMO
HOLDER FUSE Flgure 13
- 7 -
