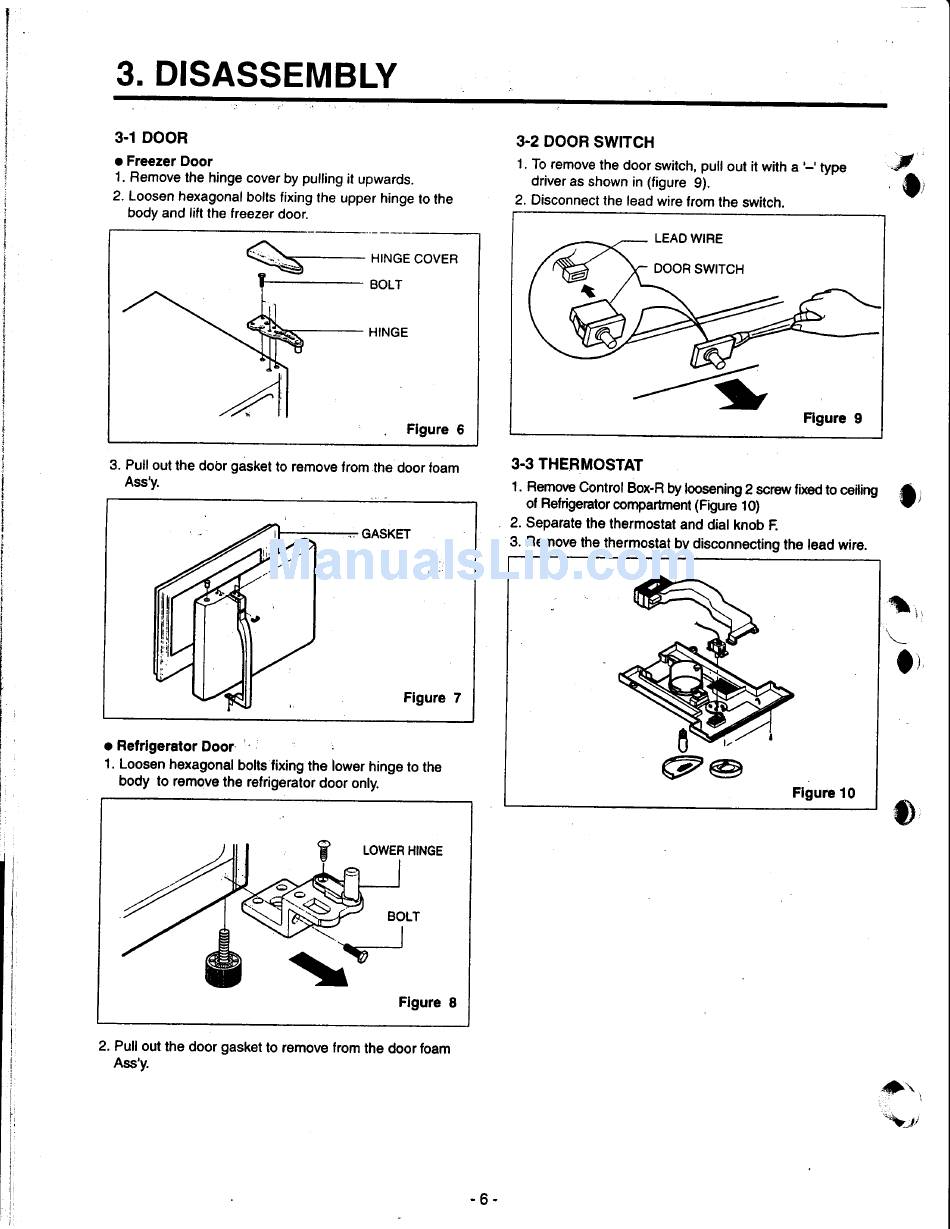

3. DISASSEMBLY
3-1 DOOR
o Freezer Door
1. Remove the hinge cover by pulling it upwards.
2. Loosen hexagonal bolts fixing the upper hinge to the
body and lilt the freezer door.
3. Pull oul the dobr gasket lo remove from the door foam
Ass'y.
GASKET
Flgure 7
o Refrlgerator Door' '. '
:
:
1. Loosen hexagonal bolts lixing the lower hinge to the
body to remove the refrigerator door only.
LOWER HINGE
Flgure 8
2. Pull out the door gasket to remove from the door foam
Ass'y.
3-2 DOOR SWTTCH
1. To remove the door switch, pull out it with a ,-, type
driver as shown in (ligure 9).
2. Disconnect the lead wire from the switch.
3.3 THERMOSTAT
1. Remore Control Box-R by loosening 2 screw fircd to ceiling i
,
of Refrigerator compartment (Figure 10)
{J'
2. Separate the thermostat and dial knob F.
3. Remove the thermostat by disconnecting the lead wire.
L i ,
O i
4 t '
vi
.t
f,
HINGE COVER
BOLT
H I N G E
.
Flgure 6
0\
e
@
Flgure 10
6 -
