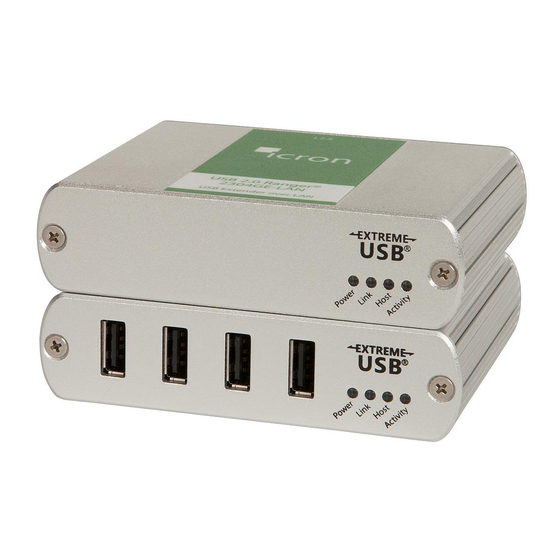

Icron USB 2.0 Ranger 2304-LAN Quick Start Manual

USB 2.0 Ranger® 2304-LAN
4-Port USB 2.0 Ethernet LAN
Extender System
Quick
Start
Guide
For additional details on configuration
and operation of your
USB 2.0 Ranger 2304-LAN, refer to the
complete user guide available online at:
icron.com/2304-LAN
For technical support with your
USB 2.0 Ranger 2304-LAN product, contact:
icron.com/support
icron.com
Icron's USB and Video
Extension Solutions
 Pro AV
 KVM Extension
 Digital Signage
 Medical Imaging
 Industrial Automation
 Digital Projection
90-01047-A04

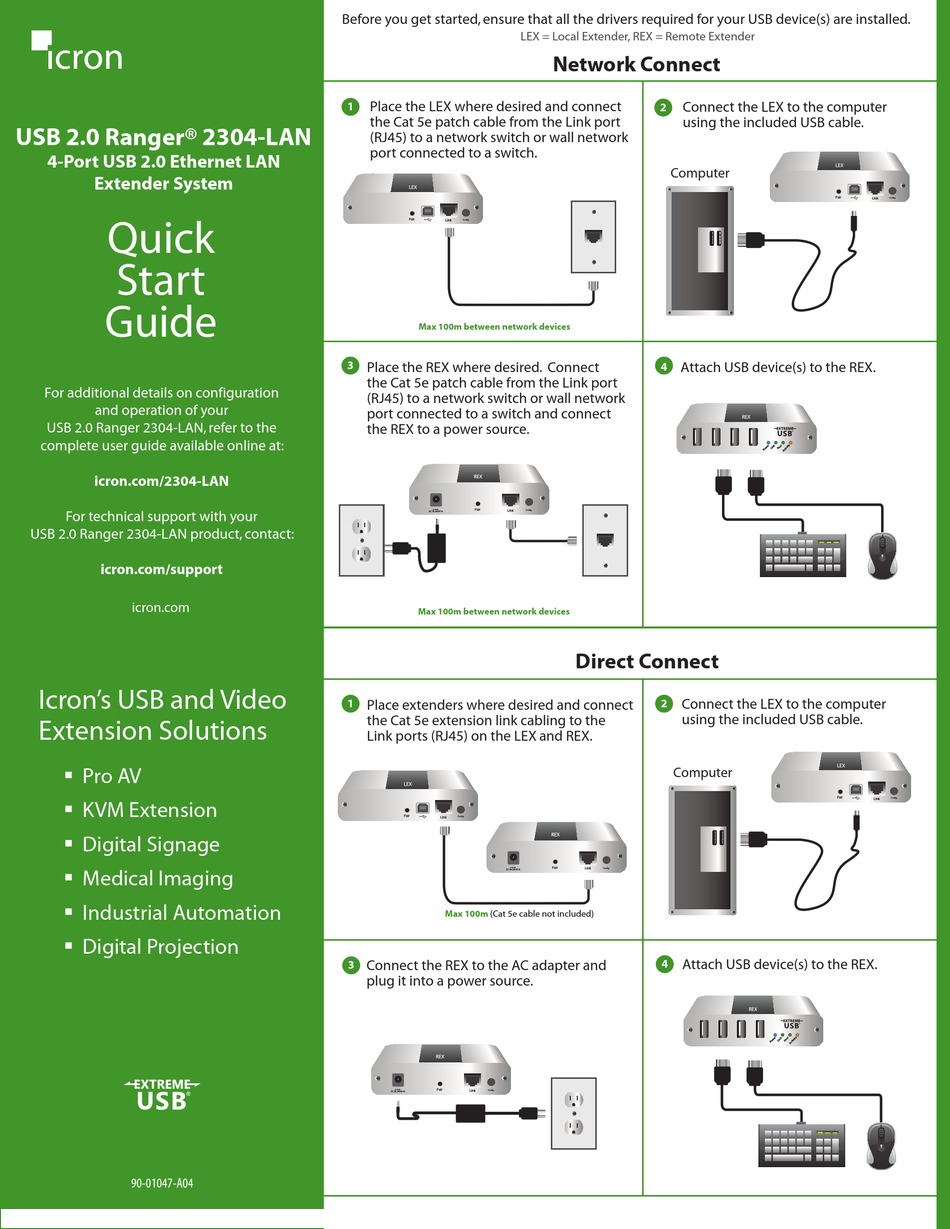

Before you get started, ensure that all the drivers required for your USB device(s) are installed.
LEX = Local Extender, REX = Remote Extender
Place the LEX where desired and connect
1 1
the Cat 5e patch cable from the Link port
(RJ45) to a network switch or wall network
port connected to a switch.
Pair
Link Config
Max 100m between network devices
3
Place the REX where desired. Connect
the Cat 5e patch cable from the Link port
(RJ45) to a network switch or wall network
port connected to a switch and connect
the REX to a power source.
Pair
Link
DC IN 24V@1A
Max 100m between network devices
1 1 Place extenders where desired and connect
the Cat 5e extension link cabling to the
Link ports (RJ45) on the LEX and REX.
Pair
Link Config
DC IN 24V@1A
Max 100m (Cat 5e cable not included)
Connect the REX to the AC adapter and
3
plug it into a power source.
Pair
Link Config
DC IN 24V@1A
Network Connect
Connect the LEX to the computer
2
using the included USB cable.
Computer
Attach USB device(s) to the REX.
4
Config

Direct Connect

2 Connect the LEX to the computer
using the included USB cable.
Computer
Pair
Link Config
Attach USB device(s) to the REX.
4
Pair
Link Config
Pair
Link Config
