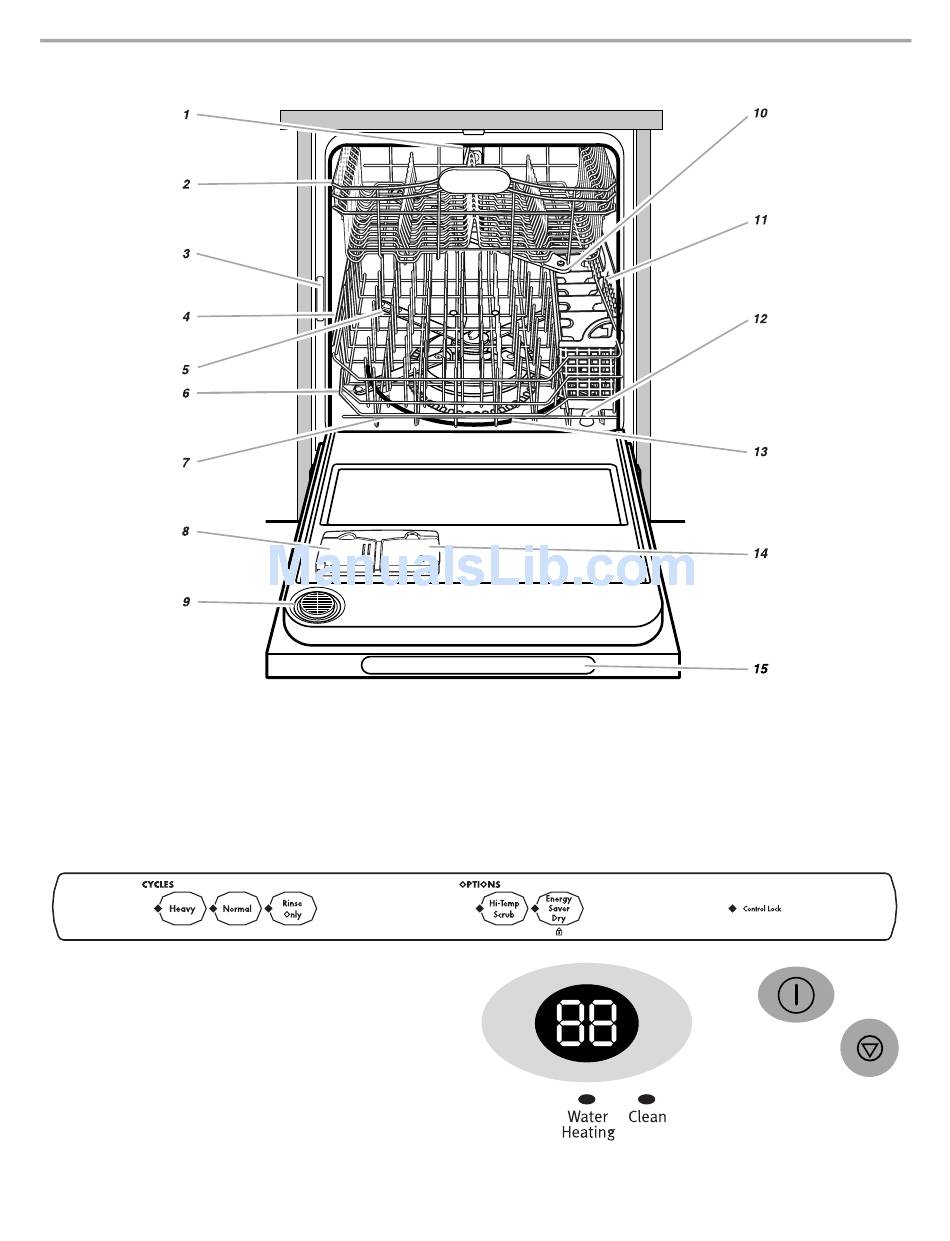

1. Upper spray
2. Top rack
3. Model and serial number label
4. Water inlet opening [in tub wall
5. FLEXI-FOLD DOWN™ flexible tines
Control Panel
PARTS AND FEATURES
6. 4-way HYDRO SWEEP™
spray arm
7. Bottom rack
8. Detergent dispenser
9. Vent
10. Middle spray arm
11. Silverware basket
12. Overfill protection float
13. Heating element
14. Rinse aid dispenser
15. Control panel
5
- Quick Links:
- Parts and Features
- Troubleshooting
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the KUDI01DL and is the answer not in the manual?
Questions and answers
CONTROL LOCK LIGHT REMAINS ON AND UNIT WILL NOT LOCK DOOR UPON ATTEMPTING TO BEGIN CYCLE AND GO INTO OPERATING MODE
The control lock light remains on because the Control Lock feature is activated. When this feature is on, the dishwasher controls are locked, preventing operation. Additionally, the KitchenAid KUDI01DL unit does not lock the door when starting a cycle because the door latch mechanism is separate from the control lock function.
To disable the Control Lock and allow normal operation:
1. Press and hold the ENERGY SAVER™ Dry System control for 4 seconds until the Control Lock light turns off.
2. Ensure the door is firmly closed and latched.
3. Restart the cycle as needed.
