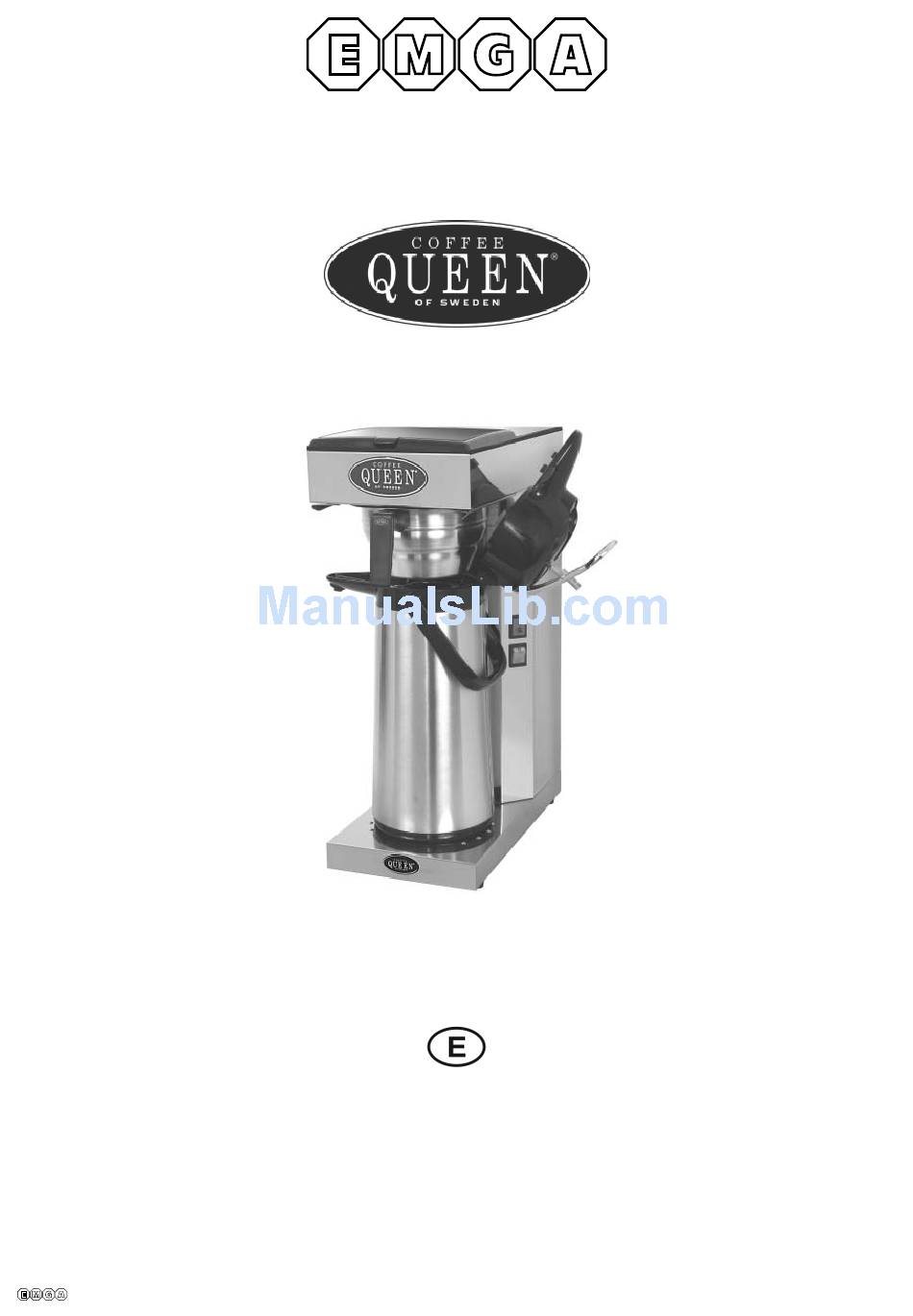

Page 1: User Manual

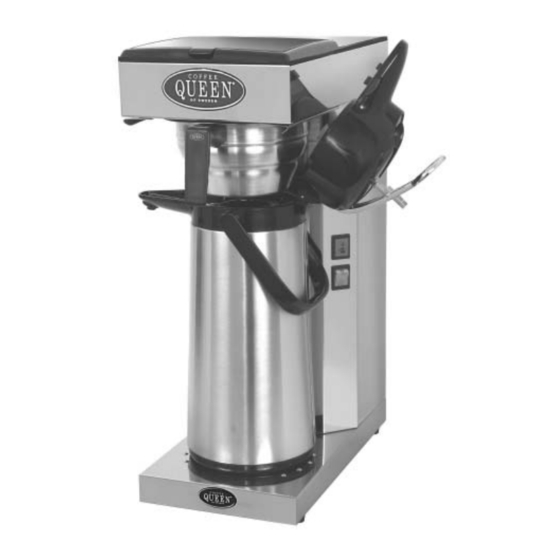

User manual COFFEE QUEEN *320.415 Power saving coffee machines. Capacity 2,2 litres Simple installation and easy to use. 1/11 320415 en ma 2012 04... - Page 2 1. Table of contents 1. Table of contents å / l l 2. Instructions o i t i r k o i t 3. Installation and start 4 - 5 a l l o i t å t ä a l l o i t 4.
- Page 3 Brewing lamp Starts brewing Instructions Coffee machine for manual water filling. In the tank there is a float which activates a microswitch when water is filled. Microswitch activates element unit and brewing starts. During brewing the brewlamp is lit. When the tank is empty the current to the boiler is cut and the brewlamp is switched off. The machine is equipped with an overheating protection which is manually restored when the current has been cut.
-
Page 4: 3. Installation And Start N O Å N G N A N D S
3. Installation and start Placing machine. 3.1. Place the machine on a flat level and waterproof surface. Electrical coupling 3. 2. CAUTION! Connect the plug to a separate wall socket. 240 V, 13 amp. (230 V, 10 amp). 4/11 320415 en ma 2012 04... - Page 5 3. Installation and start 3.3. Do the first brewings with water only . To filling up water system. Place filter holder without filter and coffee. Lift up the cover and fill the machine with fresh tap water. Place the pot under the filter holder. Wait two minutes .
-
Page 6: Brewing Of Coffee
4. Brewing of coffee. 4.1. Place a 90mm filter in the filter holder. 4.2. Add coffee , restaurant / catering grounded coffee). Make sure that the coffee is evenly spread. 4.3. Place the filter holder. 4.4. Lift up the cover and pour in a pot of fresh tap water (2,2L ). - Page 7 4. Brewing of coffee. 4.5. Place the thermos pot under the filterholder. 4.6. Turn on control switch for brewing. During the brewing, (about 6 minutes) the brew lamp is lit. 7/11 320415 en ma 2012 04...
- Page 8 5. Maintenance CAUTION! Before each brewing. The machine should not be submerged in Rinse the thermos. water or washed in a dishwasher Each day. Wash the thermos and the filterholder with liquid solution for coffee machines. Clean the spray nozzle and the surrounding area. Use a soft rag and liquid solution that does not scratch.
- Page 9 5. Maintenance. Each week. Descaling and cleaning. Pour 50 ml descaling / cleaning solution in a pot and fill it up with cold water. Pour the mixture in the machine and proceed with a brewing without a filterpaper or coffee. Rinse by brewing at least 3 times with clean water so that the particles from descaling solution disappear.
- Page 10 6. Important. Important. The machine should stand on a flat surface so that it will function properly. The machine should be placed on a water-proof surface so that any leakage is easily noticeable. Do not leave the machine unattended while using. The machine must be disconnected from electrical supply before any maintenance.
-
Page 11: Possible Solution
7. Possible solutions. A. Switch does not light. 1. Check plug connection to wall socket. 2. Check fuse in plug. B. Brewer omits excess steam. 1. Machine may require descaling. 2. Spray nozzel may need unblocking. 3. Hose may be bent? 4.
