OSEE MVM230 User Manual

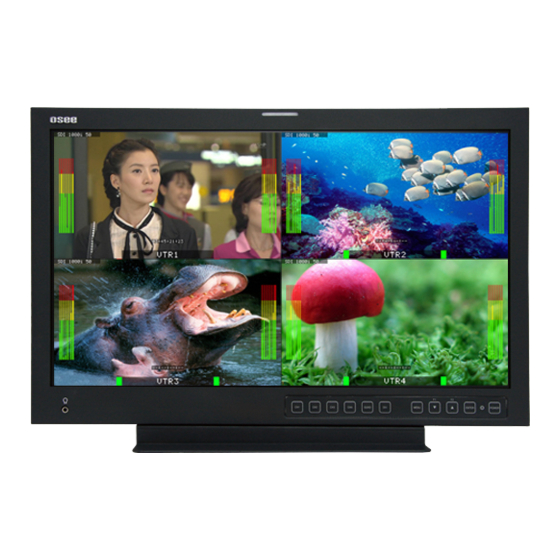

Quad split lcd monitor
Hide thumbs Also See for MVM230:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
MVM230
Quad Split LCD
Monitor
U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVM230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OSEE MVM230

Summary of Contents for OSEE MVM230

  • Page 1 MVM230 Quad Split LCD Monitor U S E R M A N U A L...
  • Page 2 PRODUCT INFORMATION MODEL: MVM230 Quad Split LCD Monitor Version: V010001 Modified: August 17, 2011 COMPANY NAME 北京时代奥视数码技术有限公司 Beijing Osee Digital Technology Ltd. CONTACT US Address: Room 702, Tower D, Jinyujiahua Building, No.9, 3rd Shangdi Street, Haidian District, Beijing, China Post code:100085...

  • Page 3: Table Of Contents

    User Manual MVM230 Quad Split LCD Monitor Content Chapter 1 Overview ..................1 Introduction ..........................1 Feature ............................1 Chapter 2 Unpackaging and installation ............. 2 Chapter 3 Description of product structure ..........3 Chapter 4 Usage ..................5 4.1 Description for Display status ..................... 5 4.2 Signal Format ........................

  • Page 4: Chapter 1 Overview

    Each display screen of the MVM230 is an independent professional monitor. So it can achieve the various professional parameters and can be adjusted independently, including GAMMA, color temperature, brightness, and so on.

  • Page 5: Chapter 2 Unpackaging And Installation

    1. Install the base. Installation 2. Put the MVM230 on the position you need for installing, and connect the power. Please make sure the place you put is safety. 3. Connect a standard signal lines to the corresponding input port. All BNC connector impedance must be 75Ω.

  • Page 6: Chapter 3 Description Of Product Structure

    User Manual MVM230 Quad Split LCD Monitor Chapter 3 Description of product structure Front panel (Unit: mm) Rear panel (Unit: mm) Side view (Unit: mm)
  • Page 7 User Manual MVM230 Quad Split LCD Monitor Top view (Unit: mm)

  • Page 8: Chapter 4 Usage

    User Manual MVM230 Quad Split LCD Monitor Chapter 4 Usage 4.1 Description for Display status  Status information: Displayed in the upper left corner of each window, including the input channel number and signal format.  TC code: Display Format: HH: MM: SS: FF and if there is no TC code, display --:--:--:--.
  • Page 9 User Manual MVM230 Quad Split LCD Monitor Four-screen, full 16-channel audio meter One-big and with three-small screen, full 16-channel audio meter  Waveform and vector display: Display in the screen. As below.

  • Page 10: Signal Format

    User Manual MVM230 Quad Split LCD Monitor 4.2 Signal Format Video input signal: 4 adaptive CVBS, SD/HD/3G-SDI video (supports embedded audio) and one DVI -D/ HDMI (as the same as IN1). Audio input signal: Four pairs of stereo analog audio.

  • Page 11: Interface Of Rear Panel

    User Manual MVM230 Quad Split LCD Monitor 4.3 Interface of rear panel Detail (Left) Note: The specs are subject to change without prior notice.

  • Page 12: Interface Of Front Panel

    User Manual MVM230 Quad Split LCD Monitor (Right) 4.4 Interface of front panel Headphone port Detail 1~4： Channel 1-4, switch to full screen for CH. 5：Layout, there are two modes to choose. 6：DVI input, there are two formats: HDMI or NONE (OFF).

  • Page 13: Chapter 5 Menu Description

    User Manual MVM230 Quad Split LCD Monitor 10：ENTER, save the setup or enter the item selected. 11：Power switch 12：Power indicator, Red: standby, Green: normal. Chapter 5 Menu Description 5.1 Main menu It displays by pressing the MENU button. COLOR TEMP...
  • Page 14 User Manual MVM230 Quad Split LCD Monitor MARKER ( ), AUDIO CONFIG ( ), USER CONFIG ( ) and OSD CONFIG ( ). By pressing UP and DOWN, select the 6 items and when selected one press ENTER key to enter the sub-menu. Press UP or DOWN to select the items to setup.
  • Page 15 User Manual MVM230 Quad Split LCD Monitor (2) COLOR TEMP COLOR TEMP -COLOR TEMP -RED GAIN -GREEN GAIN -BLUE GAIN -RED BIAS -GREEN BIAS -BLUE BIAS -RESET *COLOR TEMP includes for modes: D65, D56, D93 and USER (User setup). In USER, RED GAIN, GREEN GAIN, BLUE GAIN, RED BIAS, GREEN BIAS, BLUE BIAS and RESET can be adjusted.
  • Page 16 User Manual MVM230 Quad Split LCD Monitor (3) MARKER MARKER -AREA MARKER -CENTER MARKER -SAFETY MARKER -MARKER LEVEL -MARKER MAT HALF Only when one single screen displays as full-screen, MARKER is enabled. The current state is NATIVE or DVI input, MARKER is disenabled.
  • Page 17 User Manual MVM230 Quad Split LCD Monitor (4) AUDIO CONFIG AUDIO CONFIG -AUDIO SOURCE -EBD SEL L - EBD SEL R -ACTIVE ONLY -METER DISP 16CH -REF LEVEL -20dB -OVER LEVEL -10dB *AUDIO SRC Show audio source options, including OFF, EXT and EBD.
  • Page 18 User Manual MVM230 Quad Split LCD Monitor （5） USER CONFIG USER CONFIG -B.LIGHT -LANGUAGE ENGLISH - PHASE -APERTURE -F1 BUTTON SCAN MODE - F1 BUTTON ASPECT MODE -LAYOUT2 MODE 16:9 -LOCK NUMBER RVAA003J *BACK LIGHT Monitor backlight brightness adjustment, range from 0 to 30.
  • Page 19 User Manual MVM230 Quad Split LCD Monitor (6) OSD CONFIG  PAGE 1：OSD DISPLAY OSD CONFIG -NEXT PAGE -IMD DISPLAY - IMD COLOR -IMD CHAR MVM230-H -TC DISPLAY -WAVE FORM -WAVE OVER LIMIT -WAVE UNDER LIMIT -FORMAT DISPLAY AUTO *IMD DISPLAY IMD turns on and off.

  • Page 20: Function Menu

    User Manual MVM230 Quad Split LCD Monitor  PAGE 2：IMD DISPLAY OSD CONFIG -NEXT PAGE -IMD PROTOCOL LOCAL - IMD ID -IMD NAME M00000 -BAUD RATE 19200 -OSD TLY MODE -IMD TLY MODE -TLY SOURCE STANDARD *IMD PROTOCOL IMD protocol includes LOCAL, TSL3.1, TSL4.0 and IMAGE VIDEO four options.

  • Page 21: Adjustment Menu

    User Manual MVM230 Quad Split LCD Monitor 5.3 Adjustment menu Press ENTER to enter the adjustment menu. It includes VOLUME, BRIGHTNESS, CONTRAST, and CHROMA. It displays as follow: Press UP and DOWN to adjust the parameter of the current item and press ENTER to enter the next item of the adjustment menu.

  • Page 22: Chapter 6 Specification

    User Manual MVM230 Quad Split LCD Monitor Mode 2: three-small screen display layout as 16:9 or 4:3 Window 1 Window 2 Window 3 Window 4 All images show the biggest screen in center under the premise of keeping the same aspect ratio.

  • Page 23: Input Signal Format

    User Manual MVM230 Quad Split LCD Monitor 6.2 Input signal format Analog Composite: PAL, NTSC SD-SDI: 480i、576i HD-SDI: 1080i50、1080i 59.94、 1080i 60， 720p50、720p 59.94、720p 60， 1035i59.94、1035i 60 3G-SDI: 1080p50、1080p 59.94、1080p 60 6.3 Specifications CVBS Input/ Output: Signal Type NTSC, PAL...
