Zuvo Water Purator
Butler Faucet Kit

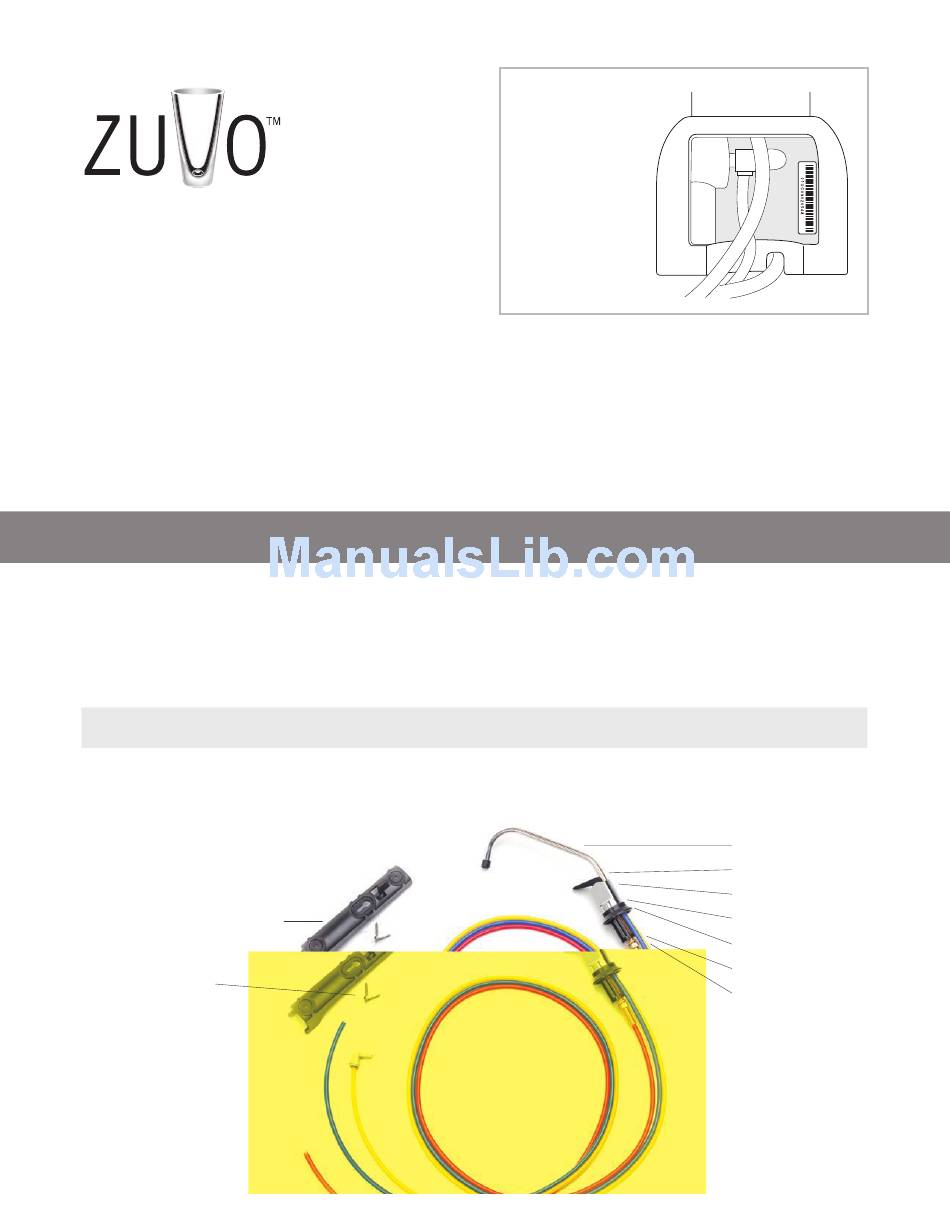

The Zuvo™ Water Purator™ Butler Faucet Kit allows connection of your Zuvo unit to a separate, dedicated
faucet mounted to your sink top. Installing the kit is straight forward and most "do-it-yourself" types will
find it relatively easy. If you are uncomfortable working with or around plumbing, enlist the help of a
licensed plumber.
1. UNPACKING AND INSPECTION
Unpack all pieces and insure that you have all components listed below. If any parts are missing contact
Zuvo or your Zuvo dealer.
Butler Faucet Assembly
Wall mount bracket and screws
Elbow tube adapter
Prior to installing
the Butler Faucet,
locate and record
the serial number
on your Zuvo
Water Purator.
This serial number
appears on the
lower back of the
device.
™
Installation Guide
Spout
On/Off lever
Faucet body
Chrome washer
Rubber gasket/O-ring
Slotted washer
Nut
Fig. 1
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zuvo Water Purator
Summary of Contents for Zuvo Water Purator
- Page 1 Butler Faucet Kit Installation Guide The Zuvo™ Water Purator™ Butler Faucet Kit allows connection of your Zuvo unit to a separate, dedicated faucet mounted to your sink top. Installing the kit is straight forward and most “do-it-yourself” types will find it relatively easy. If you are uncomfortable working with or around plumbing, enlist the help of a licensed plumber.
-
Page 2: Tools Required
Compression Plastic plumbing fitting that attaches to YELLOW/WHITE 1/4"C x 1/4" Stem Elbow Fitting tube of Zuvo Butler Faucet Assembly and to inlet in base of Zuvo Water Purator Teflon® “plumber’s” tape used to wrap male pipe threads Teflon® Tape... - Page 3 Prior to installing the Butler Faucet, select a suitable under-counter location for mounting or placing your Zuvo unit (Refer to your Owner’s Manual for installation details). The Zuvo unit should be mounted/located no more than about 3 feet from the Butler Faucet.
- Page 4 Push slotted tool against grey or blue ring, pull out tubes. Lay the Zuvo Water Purator on a flat surface with the back (spine) exposed. Locate the plastic “spanner” tool that came in the package with the faucet aerator adapter.
- Page 5 5. 1/2" PIPE TAP or 3/8" COMPRESSION TEE INSTALLATION Turn off cold water supply shutoff valve Cold water supply Turn off the cold water supply by turning the shut off valve handle all the way to the right. Test your faucet to ensure there is no cold water flow. Place a bucket or pan on the floor under the cold water supply in the event that a small amount of water drains down from the sink.
-
Page 6: Plumbing Connections
Cold water supply Reconnect the flexible hose to the 1/2" pipe tap or the 3/8" supply adapter. Use adjustable wrench to tighten nut securely. Fig. 10 Cold water supply Using scissors, trim the RED tubing, coming from the Butler Faucet, to the desired length. AVOID CUTTING THE TUBE TOO SHORT! Insert the RED tubing into the 1/4"... - Page 7 Insert YELLOW/WHITE and BLUE tubing into compression fittings Place your Zuvo Water Purator in the appropriate location and trim the YELLOW/WHITE tubing from the Butler Faucet to length. AVOID CUTTING THE TUBE TOO SHORT! Insert the YELLOW/WHITE tubing into the 1/4"...
-
Page 8: System Checkout
© Copyright 2009. Zuvo™, the Zuvo logo and the Purator™ name are trademarks of Zuvo Water LLC. Zuvo Water Purator is protected by U.S. patents #6,461,520, #7,033,502, #5, 266, 215, #5,540, 848, DES 357,058, and other U.S. and foreign patents pending. All rights reserved. L129 06/09...
