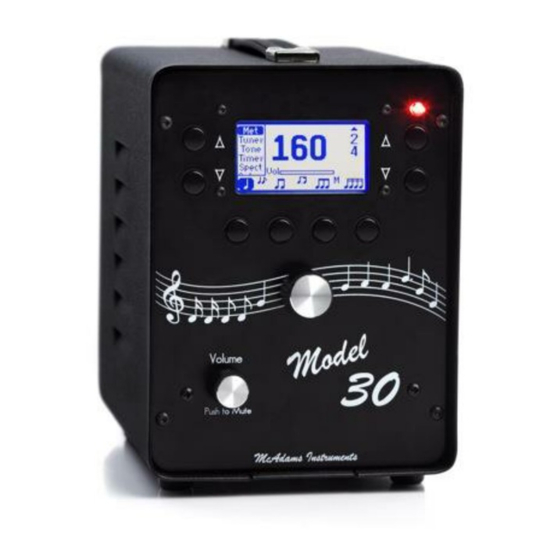

- Page 1 Div. of Interlink Systems, Inc. 40219 Otero Road, Magnolia, TX 77354 Telephone and fax: (281) 356-7567 jpmcadams@sbcglobal.net Operator’s Manual for the Model 30 Metronome/Tuner Rev. 8 For metronome firmware revision 1.33 Copyright 2012, McAdams Instruments. All rights reserved.
-
Page 2: Table Of Contents
Preliminary Manual for the Model 30 Metronome/Tuner Rev. 08 TABLE OF CONTENTS 1. Overview 2. Safety Warnings 2.1 It is LOUD 2.2 Electrical Safety 2.3 It is heavy 3. Metronome 3.1 Rate 3.1.1 Adjust the Rate 3.1.2 “Tap” the Rate 3.1.3 Set the Rate Digitally... - Page 3 Preliminary Manual for the Model 30 Metronome/Tuner Rev. 08 6.1 Start 6.2 Stop 6.3 Reset 6.4 Hold 7. Spectrum Analyzer 7.1 The Display 7.1.1 Frequency Cursor 7.1.2 Scale Magnification 7.2 Tone Quality 7.3 Microphone Level 7.4 Lo Pitch – Hi Pitch 8.
-
Page 4: Safety Warnings
2.1 It can be LOUD One of the things that makes the Model 30 useful is that it can be very loud. Use caution and good sense in the placement of the Model 30 and adjustment of the volume control. The volume an ear is subjected to changes a lot depending on how close you are, placement of other objects, and the size of the room. -
Page 5: Electrical Safety
2.3 It is heavy Don’t drop the Model 30 on your foot or throw it at anyone. Use care if you place it on a high shelf since it could fall and injure someone. The absence of sharp corners is helpful, but it can still smash a toe. -
Page 6: Beat Subdivisions
For instance, if the note before the = sign is a dotted quarter and the tempo is set to 100, the Model 30 will play 100 dotted quarters per minute, or equivalently, eighth notes will sound at 300 per minute. -
Page 7: X/4 Meters
Preliminary Manual for the Model 30 Metronome/Tuner Rev. 08 3.3.2 X/4 Meters For time signatures of the form X/4 the tempo display always indicates the number of quarter notes per minute. 3.3.3 X/8 Meters For time signatures of the form X/8 the tempo can be based on the dotted-quarter note or the quarter note. -
Page 8: Preliminary Manual For The Model 30 Metronome/Tuner Rev
Preliminary Manual for the Model 30 Metronome/Tuner Rev. 08 A second type of mute happens when you press STOP on the remote control. In Metronome Mode, STOP causes the metronome be muted, but the metronome also halts and the blinking light stops. -
Page 9: Transposition
Preliminary Manual for the Model 30 Metronome/Tuner Rev. 08 4.3 Transposition You can set the tuner to indicate notes in something other than concert pitch. To do this, see the section on Options Mode (section 8.2). If a transposition is in effect, the transposed note will appear in a large font, and the concert pitch note and octave will appear in a smaller font. -
Page 10: Set The Note Directly
6. TIMER The timer is simply a stop watch. It can be used to time anything while the Model 30 is being used for any other purpose. If you change to another mode, the timer continues to run. To select the Timer mode, use the Mode Select to scroll to “Timer”... -
Page 11: Start
NOTE: when you are clapping hands, singing, hitting gongs, and playing instruments into the Model 30, avoid the temptation to whack the Model 30 itself. This seems obvious and unnecessary to say, but you haven’t seen what I get back for repair! 7.1 The Display... -
Page 12: Frequency Cursor
Preliminary Manual for the Model 30 Metronome/Tuner Rev. 08 are normally evenly spaced, with the spacing being the same as the fundamental frequency. Some percussion instruments like gongs may have harmonics that are not evenly spaced, giving them a harsh or “clangy” sound. -
Page 13: Microphone Level
440Hz in either 1Hz or 1 cent steps. See Setup section 9.4 for more details. Changing this option is not permanent and changes will be forgotten when the Model 30 is turned off unless you save the state in a memory register (see section 11). -
Page 14: Setup
9.2 Kill the speaker The Model 30 can sense when you have plugged a remote cable into the ¼” phone jack. You can choose to have it sound the Model 30 speaker along with your external amplifier, or you can have the Model 30 mute its internal speaker when an external amplifier is connected. -
Page 15: The Output Jack
Rev. 08 You can set the Model 30 up to adjust the pitch reference in 1Hz steps (like A = 442) or you can select the pitch reference in 1 cent steps, such as A = 440 + 12 cents. The Model 30 always powers up with A4=440. -
Page 16: Use Of The Remote Control
The remote control transmitter shines a strong beam of infrared light to communicate with the Model 30. To operate the remote control, point the red end toward the Model 30 and press the desired button. You can find infrared receivers on the back of the Model 30 between the light and the output jack, and on the front panel to the left of the display. -
Page 17: Why Is There A Remote Receiver On The Back
The front receiver blinks the light on the front, while the rear receiver blinks the light on the rear of the cabinet. If the lights do not come on, the Model 30 is not detecting the remote. This could be because of something blocking the infrared beam, the remote is not pointed the right direction, or because the remote has low batteries. -
Page 18: Specifications And Summary Of Functions
Preliminary Manual for the Model 30 Metronome/Tuner Rev. 08 13. SPECIFICATIONS AND SUMMARY OF FUNCTIONS Speaker Power 200 watts peak Mechanical 4"x6" oval, heavy duty magnet for high efficiency Remote Control Infrared, full function 2 receivers, one on front and one on back. -
Page 19: Mcadams Instruments - 18 June 2012
McAdams Instruments will repair or replace components to the extent deemed necessary to restore said Model 30 metronome to proper operating condition at no charge for parts or labor.
