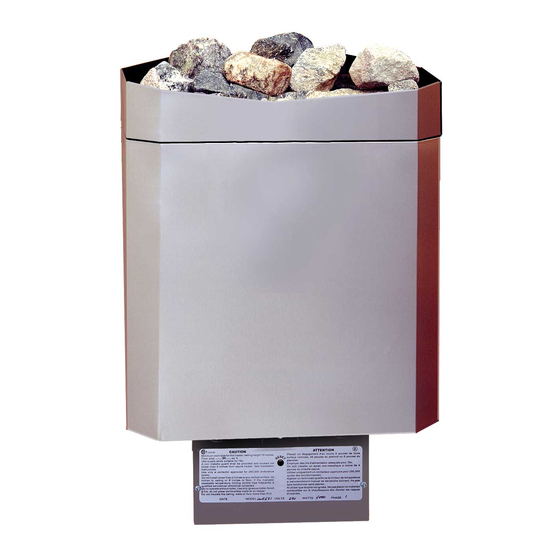

Sauna Craft CW Series Installation Manual

Sauna Craft Heater & Control
NOTES FOR ALL HEATERS
Heater Guard Fence:
A non-metallic guard (not included) shall be provided and installed as follows:
a) 4" from CW Series heaters
b) 6" from FM Series heaters
Sauna Rocks (included):
1) Wash the rocks before placing on heater.
2) Do not pack rocks too tightly into rock tray. There should be pockets of air. Stack
rocks loosely in a "pyramid" like pile. Packing rocks too tightly will trap heat and
cause the hi-limit to trip.
3) These units must not be operated without the igneous rocks in place
Water:
Do not soak the heater with water. Water should be used in moderation Sprinkling with a ladle is
recommended.
Manual Reset High Limit Control:
1) This safety device must not be by-passed in the wiring of this sauna heater.
2) Should the high temperature limit control trip frequently, a qualified serviceman should be
contacted.
A licensed electrical contractor should do all electrical work.
•
• Do NOT use a G.F.I breaker.
• All cables used in the installation of these units must be rated for 300 VAC.
• All cables supplied and connected to these units must be rated for 90
When using the sauna for the first time it is normal to have a little smoke. The elements are
burning off oil residue left by the manufacturing process. Turn the sauna on for ½ hour,
leave the door open and do not go inside.

Installation Manual

FIRST TIME USE
o
Celsius.
