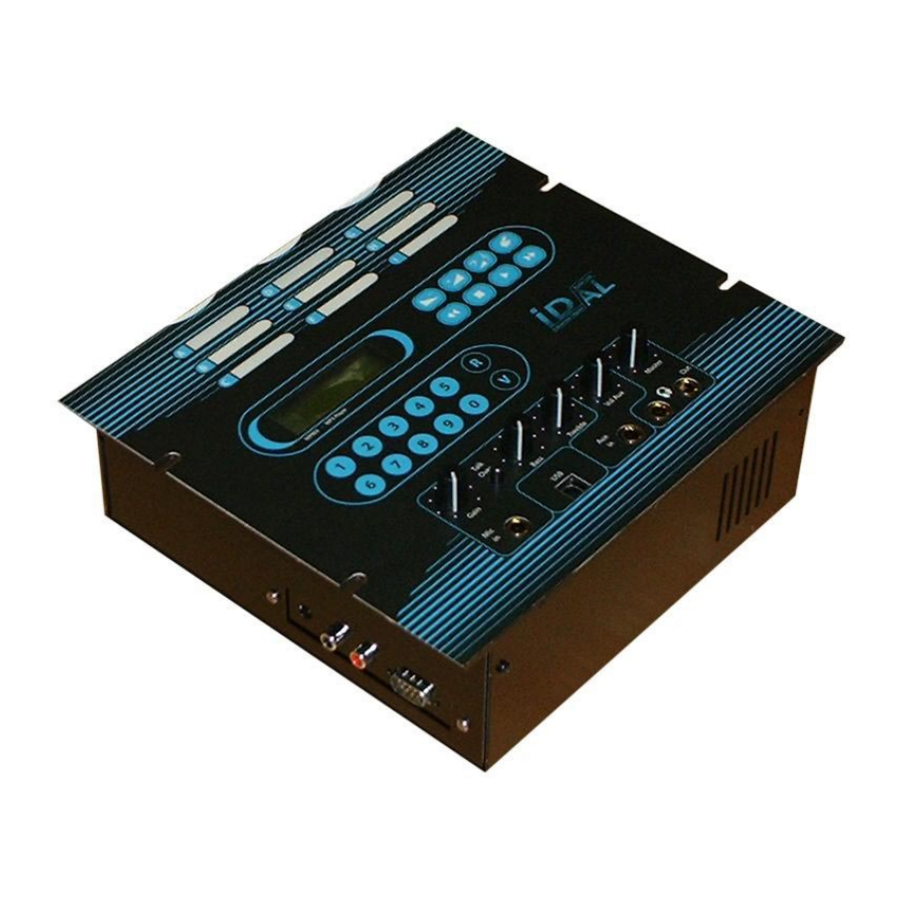

waves system MP 903 Manual Manual

I.d. al - mp903 - professional mp3 audio player
Hide thumbs

Advertisement

Quick Links

Download this manual
I.D. AL - MP903 - Professional MP3 audio player - Manual
I.D. AL - MP903 - Professional MP3 audio player - Manual
I.D. AL - MP903 - Professional MP3 audio player - Manual
I.D. AL - MP903 - Professional MP3 audio player - Manual
I.D. AL - MP903 - Professional MP3 audio player - Manual
MP 903
® Waves System
MANUAL
V 3.x - 2004

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP 903 and is the answer not in the manual?

Questions and answers

Related Manuals for waves system MP 903

Summary of Contents for waves system MP 903

  • Page 1 I.D. AL - MP903 - Professional MP3 audio player - Manual I.D. AL - MP903 - Professional MP3 audio player - Manual I.D. AL - MP903 - Professional MP3 audio player - Manual MP 903 MANUAL ® Waves System V 3.x - 2004...

  • Page 2: Table Of Contents

    Information in this manual is subject to change without notice and do not represent any commitment from Waves System. The equipment described in this manual is supplied under condition of the terms of license specifying the legal use conditions. This manual can’t be reproduced or used, in whole or in part, in any form and by any mean, for other use than private, without the written permission from Waves System.

  • Page 3: Safety Instructions

    • The MP903 player complies with the applicable technical safety standards at the date of print. All rights reserved for electrical diagrams, procedures, mentioned names and equipments. • No reproduction, in whole or in part, without the written permission from Waves System. 1.4 General safety instructions This equipment left our facilities in perfect conditions of operation.
  • Page 4 Only the original packing guarantees optimal safety of the appliance during transport. Should it be necessary to ship the product during the guarantee period, Waves System will not accept claims for damage arising during the transport from using incorrect packing material! •...
  • Page 5 • When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around, for your own safety and that of bystand- ers. ® Waves System V 3.x - 2004 - 4 -...

  • Page 6: Product Information

    DC (V) 12 2.5 INSTALLATION The apparatus must be set up in a dry and dust-free room. 2.6 ELECTRICAL CONNECTION Before use, compare mains voltage with that specified on model plate. ® Waves System V 3.x - 2004 - 5 -...
  • Page 7 When the talk over function is not activated, the microphone sound is mixed with the main program without changing its level. 8 and 9 Bass and Treble controls Adjust the microphone tone to match your voice timbre. ® Waves System V 3.x - 2004 - 6 -...
  • Page 8 You can send commands to your MP903 from a computer, an external remote control or an automated system. B) Infrared receiver Connect here an infrared sensor in order to remotely control your player (see chapter 8). ® Waves System V 3.x - 2004 - 7 -...

  • Page 9: Hard Disk Installation Or Change

    6 – Place the hard disk in front of the holes and secure it with the 4 screws. 7 – Replace the case cover and secure it with the 6 screws. ® Waves System V 3.x - 2004 - 8 -...
  • Page 10 2 – Search MP3 files on your hard disk or CD ROM or any other media. 3 – Select the files to be copied and transfer them in one of the MP903 player’s directories. ® Waves System V 3.x - 2004 - 9 -...
  • Page 11 4 – Search and select the files on your hard disk. 5 – Copy the selected files in the desired directory. 6 – You must then switch off your player to exit USB mode. ® Waves System V 3.x - 2004 - 10 -...
  • Page 12 "transparent" : you will be able to navigate amongst the music files as if sub-direcotries did not exist. The use of sub-directories is highly recommanded for directories which include more than 1000 files in order to reduce the searching delay between tracks. ® Waves System V 3.x - 2004 - 11 -...
  • Page 13 If you don’t have this kind of software, we suggest you to use the SwissKnife Freeware that you can download on our site. This utility software will allow you to create any kind of parti- tion and formatting without size limitation. ® Waves System V 3.x - 2004 - 12 -...
  • Page 14 - Set the formatting capacity to maximum (setting at the right of the pie) Click then on “Create” and restart your computer. Your hard disk is now ready to receive data. ® Waves System V 3.x - 2004 - 13 -...
  • Page 15 Downloadable on www.id-al.com Quick user’s guide for CDex. 1 – Launch the program and select the Option menu to configure the software. General You can leave all the default settings. ® Waves System V 3.x - 2004 - 14 -...
  • Page 16 - Flag: Private - Checksum - Original - Copyright Avoid changing these parameters. - Quality: Encoding output quality, or preset selection. R3Mix Preset is a good compromise. - Méthode VBR: VBR method. Avoid this encoding type. ® Waves System V 3.x - 2004 - 15 -...
  • Page 17 4 – Retrieve MP3 files in the destination folder and transfer them in your player. Note: You can download Sound Forge demo version or a full version of CDex on our site: www.id-al.com ® Waves System V 3.x - 2004...

  • Page 18: Player Operation And Settings

    Previous song Next song Next directory Previous directory Volume and tone settings. Press several times to scroll parameters. Press then to increase or decrease the value for the selected parameter. Dummy ® Waves System V 3.x - 2004 - 17 -...
  • Page 19 Note: in “standby” mode (no play) and after 60 seconds, current date and time are displayed. A dot at the left of the time digits means that timer is active. Password ON - Password is actived OFF - Password is desactived ® Waves System V 3.x - 2004 - 18 -...
  • Page 20 Be careful, you can call a file only if it is located in the currently played directory. If this directory doesn’t exist, the player will play another file, randomly selected. ® Waves System V 3.x - 2004 - 19 -...
  • Page 21 Pressing one of these 9 keys, you access all of the player’s functions (next and previous song, stop, play ...). Pressing these keys stops the currently played file and immediately plays one file in the selected directory. ® Waves System V 3.x - 2004 - 20 -...

  • Page 22: Rs232 Serial Link

    Your player is now ready to operate with the new version. Note: A text file contains the detailed proce- dure. It is supplied with the downloadable ver- sion. ® Waves System V 3.x - 2004 - 21 -...
  • Page 23 With this remote control, you can send commands to the player and remotely control it to update the musical contents or automate play according to computer managed events. ® Waves System V 3.x - 2004 - 22 -...
  • Page 24 RS232 link for firmware update and remote control. Internal clock to switch the player on/off according to a complete programming. 255 time programs at disposal to broadcast advertisements or to change the musical style. ® Waves System V 3.x - 2004 - 23 -...
  • Page 25 C - Information received from a computer, remote control, Plc… through the serial RS232 link D - Program number included in a MP3 file name E - Command sent by the optional Ethernet/Modem card ® Waves System V 3.x - 2004 - 24 -...
  • Page 26 In public places , various detectors (light, temperature, door contact….) can trigger security or warning messages. Note : the ID-AL player is not a security device (in relation to current regulations) ® Waves System V 3.x - 2004 - 25 -...
  • Page 27 Takes control of the MP3 player through the internet and starts any program remotely. Using a remote computer or just an internet navigator, you can launch an audio message, activate a program… for one or several units connected to the network. ® Waves System V 3.x - 2004 - 26 -...
  • Page 28 The message files must be stored in the “IN” directory and start with the letter “T” followed by 3 numbers. Example : T005.mp3 - It is possible to name the file after the code - Example : T005 welcome message.mp3 ® Waves System V 3.x - 2004 - 27 -...
  • Page 29 VOL- : volume - 1dB USB mode : Switch to USB mode Volume adjustment Choose the required volume value from the list 00 dB = maximum volume -71 dB = minimum volume ® Waves System V 3.x - 2004 - 28 -...
  • Page 30 In this case, just select a different program number. The 2 programs will run successively and 11 actions will then be available. There is no limit to the number of programs you can link up. ® Waves System V 3.x - 2004 - 29 -...
  • Page 31 3 – Then click on “Créer les répertoires” (Create directo- ries) to start the operation. If some directories already ex- ist, the files are neither modi- fied nor deleted. ® Waves System V 3.x - 2004 - 30 -...
  • Page 32 I.D. AL - MP903 - Professional MP3 audio player - Manual I.D. AL - MP903 - Professional MP3 audio player - Manual http://www http://www .id-al.com .id-al.com http://www .id-al.com .id-al.com http://www http://www .id-al.com http://www http://www .wsystem.com .wsystem.com http://www http://www .wsystem.com http://www .wsystem.com .wsystem.com ® Waves System V 3.x - 2004...
