Kidde SIRIUS TM0109 User Manual

Sirius II II II II 2, 4 & 8 ZONE FIRE ALARM PANEL
1.

GENERAL

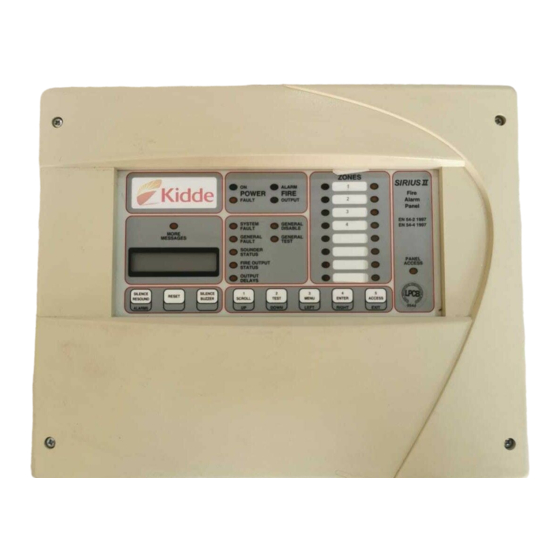

The Sirius II fire alarm panel comes in 2, 4 and 8 zone versions. The panel is mains powered and
also has two standby batteries (12 V, 7 Ah). The front panel features an LCD display, a zone window,
status windows and user controls.
2.

PANEL DISPLAY

The zone windows have an alarm light (red) and a fault light (yellow) next to each zone. The panel
status windows have a single light next to each category. All lights are coloured yellow except the
POWER ON light (green) and the ALARM light (red). The lower row contains the control switches
used for programming, test and maintenance.
3.

OPERATION

There are two levels of user access to the panel's controls. Access Level 1 is the normal operating
condition, where with no zones disabled, the green POWER ON light is on and all other lights are off.
The TEST button, which is used to test all of the lights in the panel display, is operative. All other
controls are inoperative and are only available in Access Level 2. A pass code is required to enter
Access Level 2.
To enter Access Level 2, press the ACCESS button and, using the UP, DOWN and ENTER buttons,
enter the pass code 7179. The yellow PANEL ACCESS light comes on. To revert to Access Level 1,
press the ACCESS button twice.
Note: The panel can be configured for the internal buzzer to be disabled. All references to it in
this User Guide assume that it is enabled. If you are unsure about whether the internal buzzer
is enabled or not, contact your service provider.
TM0109
USER GUIDE
Status Windows
Control Switches
Page 1 of 4
Zone Windows
Rev 1
