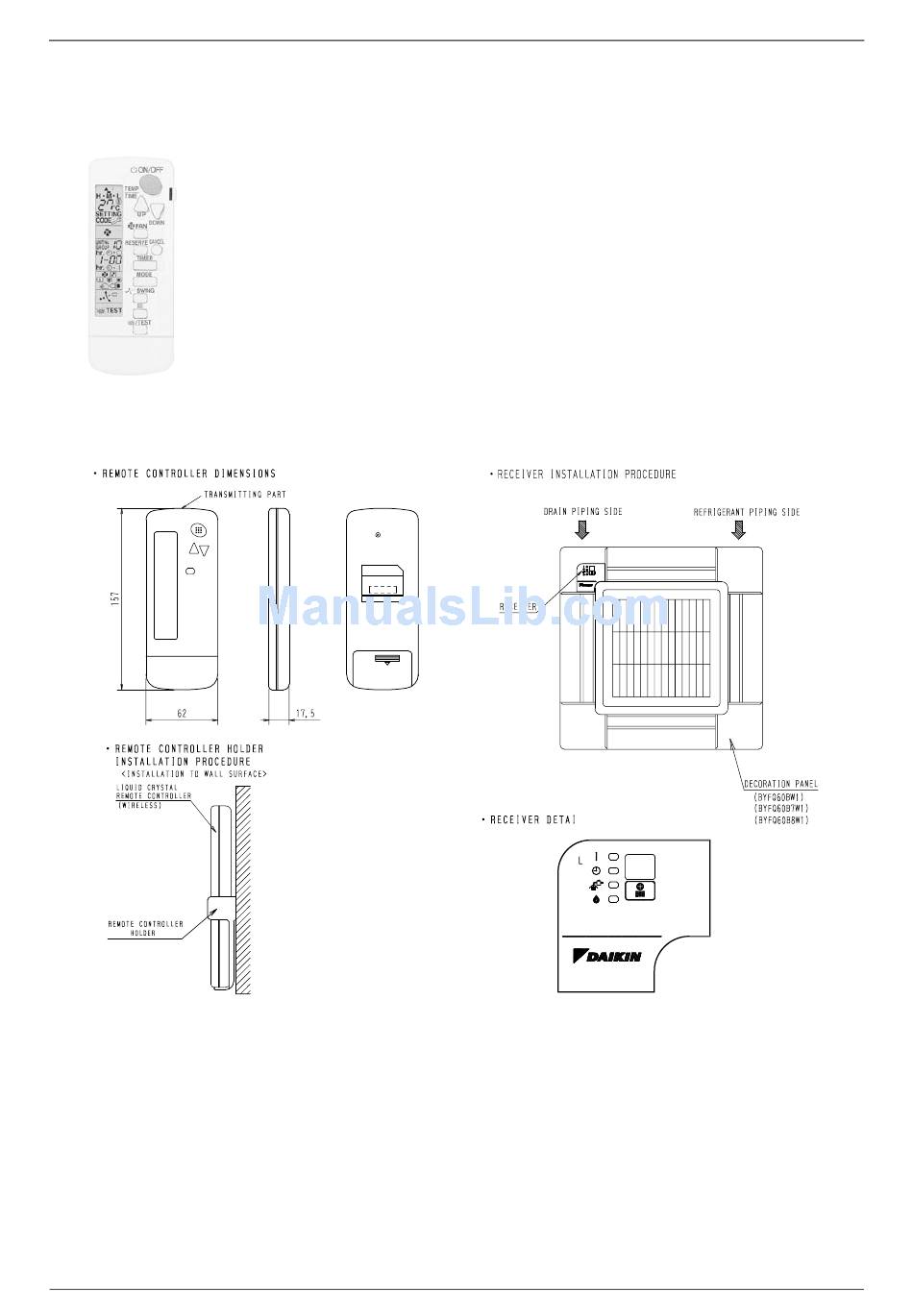

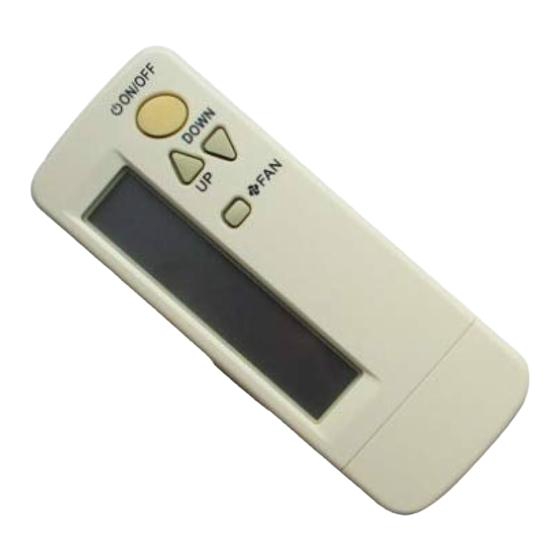

- Page 1 Remote Controller (Wireless Type) OH12-01 BRC7E530W / BRC7E531W (for FXZQ) 1.8.1 Features 1.8.2 Dimensions Unit (mm) 3D038937A Control Systems...
- Page 2 OH12-01 Remote Controller (Wireless Type) 1.8.3 Operation Manual ON OFF DOWN ON OFF TEMP TIME DOWN RESERVE CANCEL TIMER TEST MODE SWING TEST TEST COOL/HEAT CHANGEOVER REMOTE CONTROL SWITCH 3P107422-1S Control Systems...
-
Page 3: Table Of Contents
Remote Controller (Wireless Type) OH12-01 CONTENTS After reading, keep this manual in a con- venient place so that you can refer to it ILLUSTRATION....... [1] whenever necessary. If the equipment is PRIOR TO USE ......[2] transferred to a new user, be sure also to hand over the manual. - Page 4 OH12-01 Remote Controller (Wireless Type) Consult your local dealer regarding Do not use the product in the atmo- what to do in case of refrigerant leak- sphere contaminated with oil vapor, age. such as cooking oil or machine oil When the air conditioner is to be installed vapor.
- Page 5 Remote Controller (Wireless Type) OH12-01 After prolonged use, check the unit The batteries must be removed from stand and its mounts for damage. the appliance before it is scrapped If left in a damaged condition, the unit and they are disposed of safely. may fall and cause injury.
-
Page 6: Names And Functions Of The Operating Section
OH12-01 Remote Controller (Wireless Type) Do not leave the remote controller DISPLAY “ TEST ” wherever there is a risk of wetting. (INSPECTION/ TEST OPERATION) If water gets into the remote controller there is a risk of electrical leakage and When the INSPECTION/TEST OPER- damage to electronic components. -
Page 7: Handling For Wireless Remote Controller
Remote Controller (Wireless Type) OH12-01 RECEIVER 3. HANDLING FOR This receives the signals from the WIRELESS REMOTE remote controller. CONTROLLER OPERATING INDICATOR LAMP (Red) Precautions in handling remote controller This lamp stays lit while the air Direct the transmitting part of the remote conditioner runs. -
Page 8: Operation Range
Slide from above Pull it upward it is necessary to switch the remote control- ler’s setting. In this case, contact your DAIKIN dealer. 4. OPERATION RANGE SKYAIR System If the temperature or the humidity is beyond the following conditions, safety devices may work... -
Page 9: Operation Procedure
This system does not go into operation if • Operating procedure varies with heat the room temperature is below 16˚C. pump type and cooling only type. Contact your Daikin dealer to confirm your system type. ON OFF ON/OFF To protect the unit, turn on the main power •... - Page 10 OH12-01 Remote Controller (Wireless Type) • Hot air is circulated to warm the room. It FAN OPERATION ...... “ ” will take some time from when the air con- ditioner is first started until the entire room DRY OPERATION ..... “ ”...
- Page 11 UP AND DOWN DIRECTION flaps blow horizontally to • The movable limit of the flap is changeable. avoid blowing cold air Contact your Daikin dealer for details. directly on the occupants of the room.) NOTES • If you try cooling or programmed drying, while the flaps are facing downward, air flow direction may change unexpectedly.
- Page 12 OH12-01 Remote Controller (Wireless Type) NOTES TIMER MODE START/ • When the timer is programmed to stop the TIMER STOP system after 3 hours and start the system after 4 hours, the system will stop after 3 Press the TIMER MODE START/STOP hours and then 1 hour later the system will button several times and select the start.
- Page 13 Remote Controller (Wireless Type) OH12-01 For Heat recovery system MODE When one BS unit is connected with several indoor units. Continuously press the OPERATION MODE SELECTOR but- ton for 4 seconds. Outdoor unit The displays showing “ ” of all slave indoor unit connected to the same outdoor unit or BS unit BS unit flash.
-
Page 14: Not Malfunction Of The Air Conditioner
TROUBLE SPOTS NOTE I. EMERGENCY STOP • Contact your Daikin dealer in case of changing the combination or setting of When the air conditioner stops in emergency, group control and two remote controller the run lamp on the indoor unit starts blink- control systems. - Page 15 Remote Controller (Wireless Type) OH12-01 MODE TEST Press OPERATION MODE SELECTOR Press the INSPECTION/TEST button BUTTON to select the inspection mode “ ”. “ ” on the right-hand of the malfunction “ ” appears on display and blinks. “UNIT” code blinks. lights up.
- Page 16 “1”) Notify and inform the model name and what the malfunction code indicates to your Daikin 2. The system operates but it does not dealer. sufficiently cool or heat.
-
Page 17: Safety Considerations
Remote Controller (Wireless Type) OH12-01 1.8.4 Installation Manual BRC7E530W BRC7EA530W Wireless Remote Controller Kit Installation manual BRC7E531W BRC7EA531W CONTENTS 1. SAFETY CONSIDERATIONS ..................1 2. BEFORE INSTALLATION ....................2 3. REMOTE CONTROLLER INSTALLATION ..............2 4. RECEIVER INSTALLATION...................3 5. FIELD SETTING......................6 6. TEST OPERATION ......................8 1. -
Page 18: Before Installation
OH12-01 Remote Controller (Wireless Type) 2. BEFORE INSTALLATION 2-1 ACCESSORIES Check if the following accessories are included with your unit. Tapping screw for Wireless remote Remote controller Name Receiver Transmitter board transmitter board controller holder Quan- 1 set. 1 pc. 2 pcs. -
Page 19: Receiver Installation
Remote Controller (Wireless Type) OH12-01 • How to insert the batteries 1. Open the back cover of the remote controller by sliding it in the direction of the arrow. 2. Insert the attached dry cell batteries. Properly insert, set the batteries by matching the (+) and (–) polarity marks as indi- cated. - Page 20 OH12-01 Remote Controller (Wireless Type) 2. Setting the address of wireless remote controller (It is factory set to “ 1 ” ) “Setting from the remote controller” 1. Hold down the button and the button for at /TEST least 4 seconds to get the Field Set mode. Mode TEMP (Indicated in the display area in the figure at right.)
- Page 21 Remote Controller (Wireless Type) OH12-01 (3) Receiver installation 1. As shown at right, pass the harness from the receiver through the wiring hole of the decoration panel. Then, attach the receiver to the decoration panel. 2. Hook the harness from the receiver on the upper part of the panel temporary suspension of the decoration panel.
-
Page 22: Field Setting
OH12-01 Remote Controller (Wireless Type) 5. Use two tapping screws to attach the transmitter board to the indoor unit, as shown in the figure. 6. Connect the harness from the transmitter board to the connector X24 on the indoor unit PC board. Be sure to pass only the harness connecting to the indoor unit PC board under the tab. - Page 23 Remote Controller (Wireless Type) OH12-01 (Example) If the time to clean air filter is set to “Filter Contamination-Heavy”, set Mode No. to “10”, FIRST CODE NO. to “0”, and SECOND CODE NO. to “02”. FIRST SECOND CODE NO. NOTE) MODE CODE DESCRIPTION OF SETTING Filter Contamination-...
-
Page 24: Test Operation
OH12-01 Remote Controller (Wireless Type) 6. TEST OPERATION • Perform test operation according to the instructions in the installation manual attached to the indoor unit. • After refrigerant piping, drain piping, and electric wiring, operate according to the table to protect the unit. [PRECAUTIONS] 1.
