Whirlpool WHELJ1 Installation And Operation Manual page 21

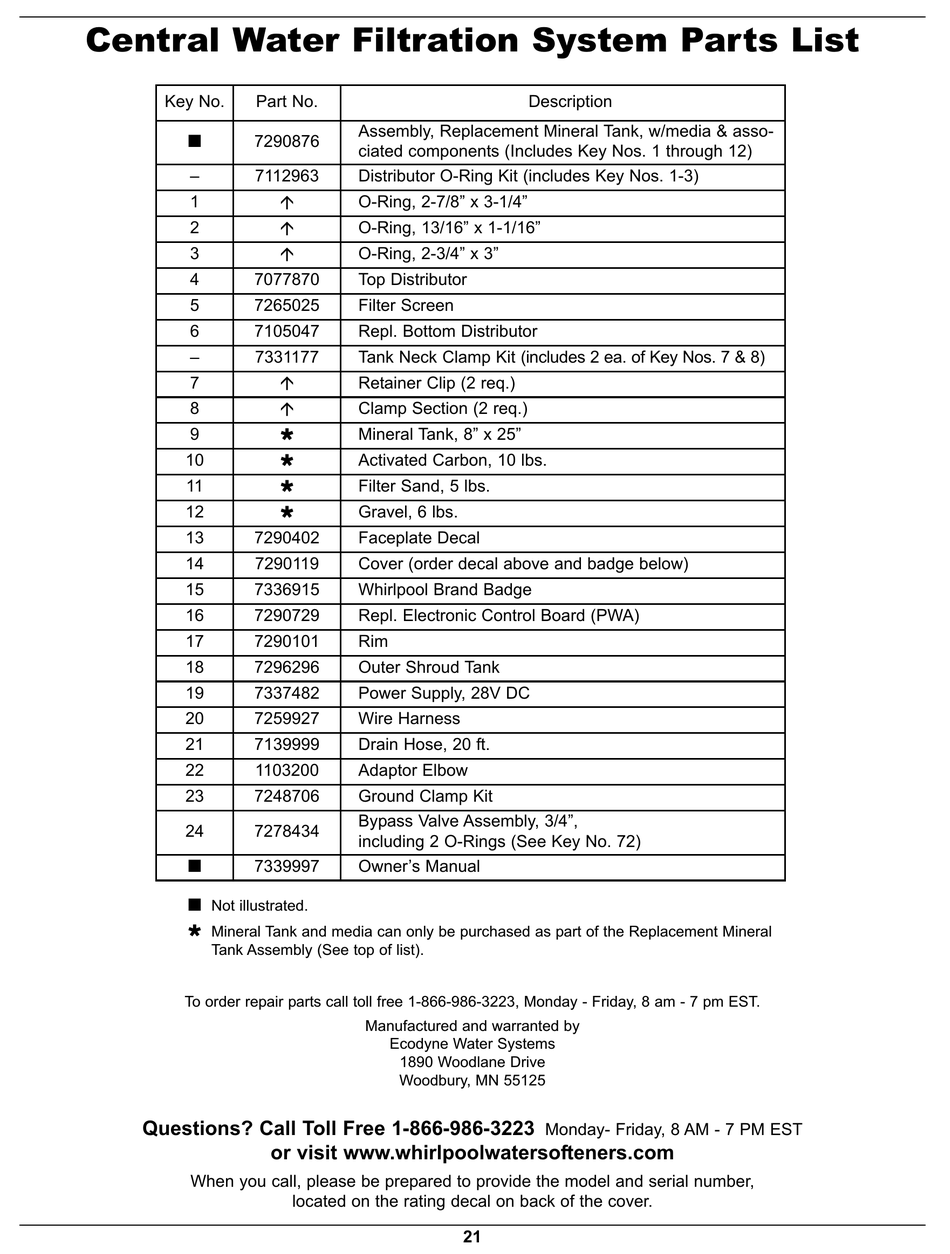

Central Water Filtration System Parts List
Key No. Part No.
7290876
– 7112963
1
2
3
4 7077870
5 7265025
6 7105047
– 7331177
7
8
9
10
11
12
13 7290402
14 7290119
15 7336915
16 7290729
17 7290101
18 7296296
19 7337482
20 7259927
21 7139999
22 1103200
23 7248706
24 7278434
7339997
Not illustrated.
Ù
Mineral Tank and media can only be purchased as part of the Replacement Mineral
Tank Assembly (See top of list).
To order repair parts call toll free 1-866-986-3223, Monday - Friday, 8 am - 7 pm EST.
Questions? Call Toll Free 1-866-986-3223
When you call, please be prepared to provide the model and serial number,
Assembly, Replacement Mineral Tank, w/media & asso-
ciated components (Includes Key Nos. 1 through 12)
Distributor O-Ring Kit (includes Key Nos. 1-3)
O-Ring, 2-7/8" x 3-1/4"
O-Ring, 13/16" x 1-1/16"
O-Ring, 2-3/4" x 3"
Top Distributor
Filter Screen
Repl. Bottom Distributor
Tank Neck Clamp Kit (includes 2 ea. of Key Nos. 7 & 8)
Retainer Clip (2 req.)
Clamp Section (2 req.)
Mineral Tank, 8" x 25"
Ù
Activated Carbon, 10 lbs.
Ù
Filter Sand, 5 lbs.
Ù
Gravel, 6 lbs.
Ù
Faceplate Decal
Cover (order decal above and badge below)
Whirlpool Brand Badge
Repl. Electronic Control Board (PWA)
Rim
Outer Shroud Tank
Power Supply, 28V DC
Wire Harness
Drain Hose, 20 ft.
Adaptor Elbow
Ground Clamp Kit
Bypass Valve Assembly, 3/4",
including 2 O-Rings (See Key No. 72)
Owner's Manual
Manufactured and warranted by
Ecodyne Water Systems
1890 Woodlane Drive
Woodbury, MN 55125
or visit www.whirlpoolwatersofteners.com
located on the rating decal on back of the cover.
Description
Monday- Friday, 8 AM - 7 PM EST
21
