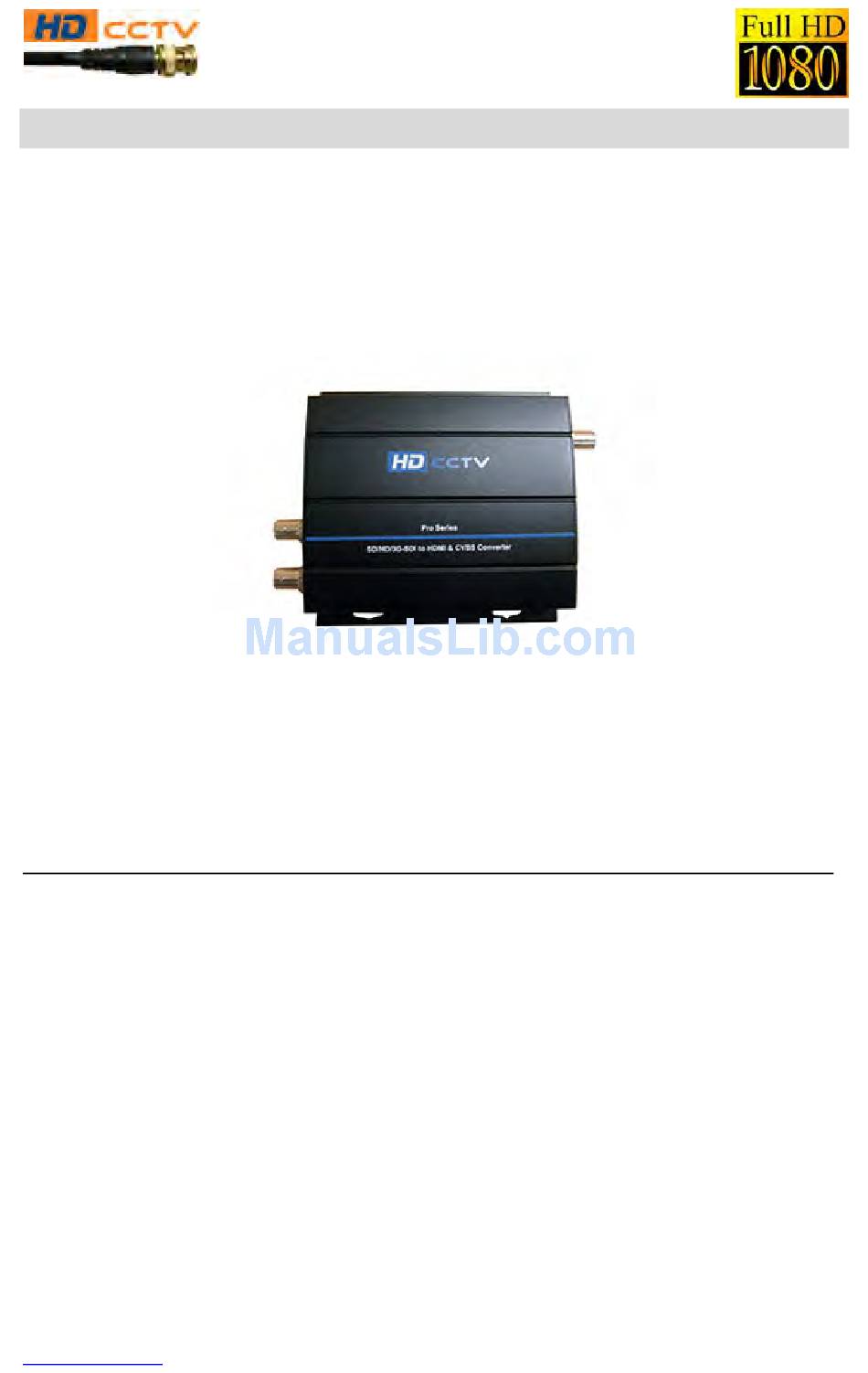

SD/HD/3G-SDI to HDMI & CVBS Converter
Pro series with no delay
This device converts a single channel SDI signal to different kinds of HD Multimedia HDMI signals
and CVBS signals. It integrates SDI Cable equalizer and reclocker to enhance video performance
and stability. Simultaneously, it also separates and converts the audio signals of SDI, embedding
it to HDMI signal or output to analog audio DACs.
Features
•
Support SDI input format: All SDI Formats
SD:
HD:
3G:
•
Support SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
•
Carry 1 channel SDI signal loop out.
•
Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI
140m/450ft
•
Automatically embed SDI audio signal to HDMI signal.
•
User selectable output format (HDMI and CVBS)
•
5V~24V DC with Locking Power Connector
Copyright © 2012 by AAS Technology
www.AAS.com.tw
User Manual
HD-SD-HDMI-PRO
525i @ 59.94Hz, 625i @ 50Hz
720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
720p @ 50Hz / 59.94Hz / 60Hz
1080i @ 50Hz / 59.94Hz / 60Hz
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
1080p @ 50Hz / 59.94Hz / 60Hz
NOTE: The casing design
is subject to change
without notice.
R201302-V18
..
SD-8P
Advertisement
Table of Contents
Summary of Contents for AAS HD-SD-HDMI-PRO
-
Page 1: User Manual
Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI 140m/450ft • Automatically embed SDI audio signal to HDMI signal. • User selectable output format (HDMI and CVBS) • 5V~24V DC with Locking Power Connector Copyright © 2012 by AAS Technology SD-8P www.AAS.com.tw R201302-V18... - Page 2 Please read the M anual before attem pting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Package Contents
6. Servicing Do not attempt to service this product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel. Package Contents One (1) SDI to HDMI & CVBS Converter One (1) 12V DC 1Amp Power Adapter w/ Locking Power Connector One (1) User Manual For any returns, please include all components listed above with original packaging in Resalable... -
Page 4: Technical Specifications
Technical Specifications Model HD-SD-HDMI-PRO Input Interface 1x BNC SDI SD-SDI (270Mbps), HD-SDI (1.485Gbps), Input Signal Type 3G-SDI (2.97Gbps) SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz Support Input Format 1080i @ 50Hz / 59.94Hz / 60Hz... - Page 5 Eye Diagram SD Mode 525i59 625i50...
- Page 6 HD Mode 720p30 720p60...
- Page 7 1080i60 1080p30 3GA-1080p60...
-
Page 8: Limited Warranty
The remedies, provided therein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise. www.AAS.com.tw HD-SD-HDMI-PRO MADE IN CHINA Copyright © 2012 by AAS Technology SD-8P www.AAS.com.tw R201302-V18...
