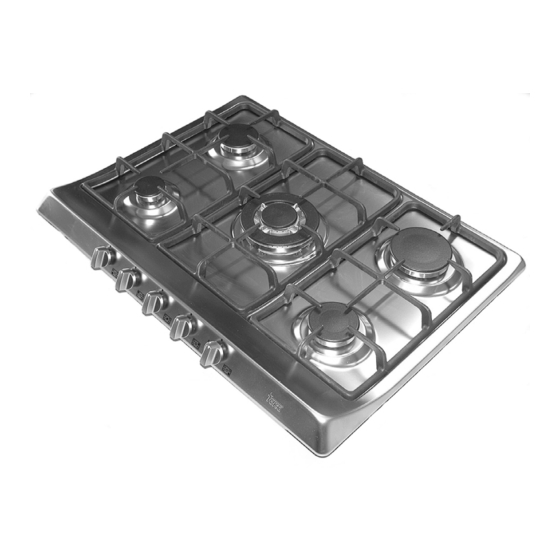

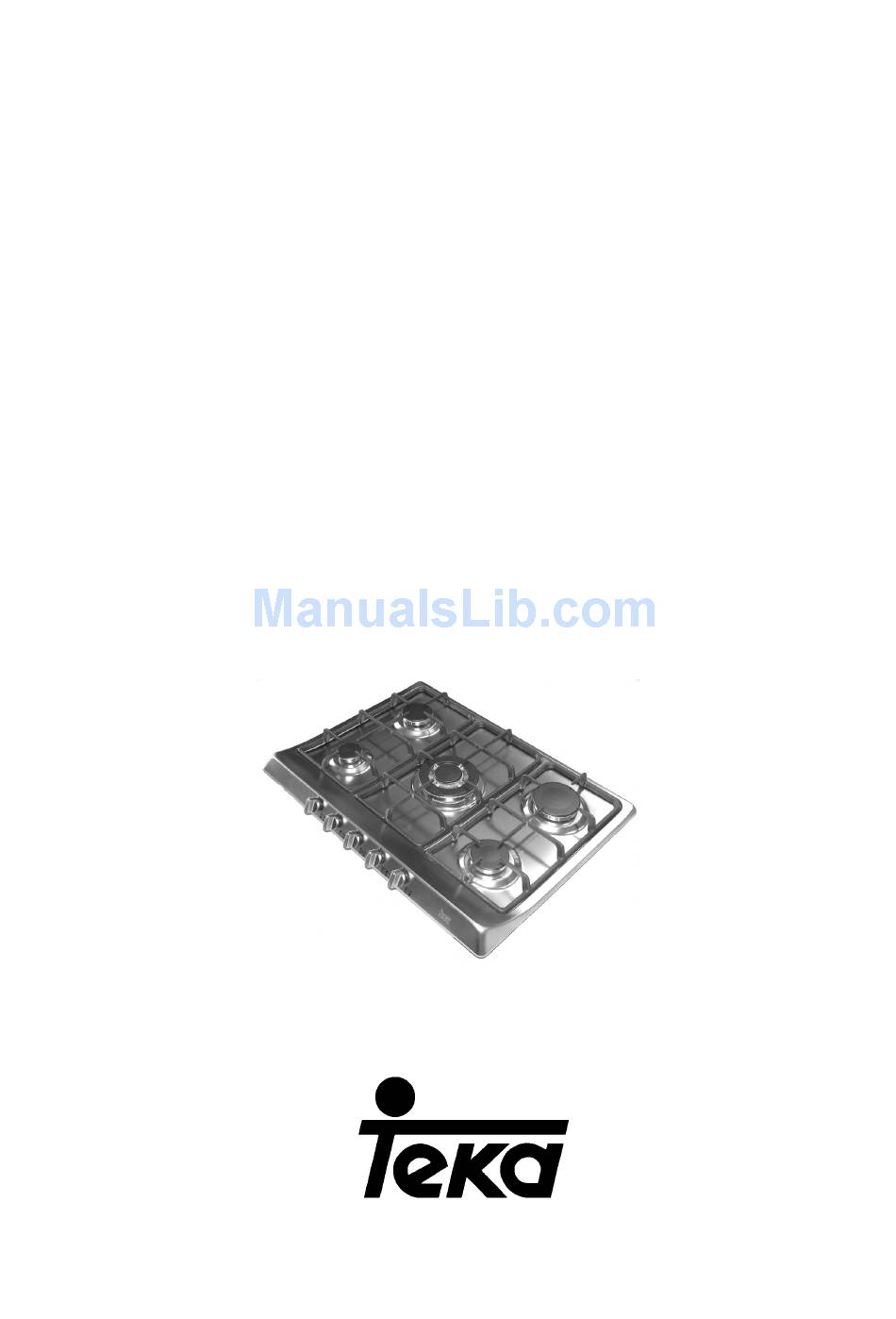

- Page 1 Instructions for the installation and advice for the maintenance EX/60 4G AI FUND EX/70 5G AI TR FUND - EX/70 5G AI AL TR FUND Instructions Manual EX/60 4G AI FUND EX/70 5G AI TR FUND - EX/70 5G AI AL TR FUND...
- Page 2 DESCRIPTION OF THE HOT PLATES TYPES: EX/60 4G AI FUND - EX/70 5G AI TR FUND - EX/70 5G AI AL TR FUND 1 Ultra rapid burner of 3100 W 2 Rapid gas burner of 2800 W 3 Semirapid gas burner...
- Page 3 Burners Power ratings Pan Ø in cm 1) BURNERS A diagram is screen-printed above each knob on Ultra rapid 3100 24 ÷ 26 the front panel. This diagram indicates to which Rapid 2800 20 ÷ 22 burner the knob in question corresponds. After Semirapid 1750 16 ÷...
- Page 4 Notes: Use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5). Intensive and lengthy use of the appliance may require additional ventilation.
- Page 5 CLEANING - The exact position of the pan support is IMPORTANT: established by the rounded corners, which Always disconnect the appliance from the gas should be set towards the side edge of the hot and electricity mains before carrying out any plate.
-
Page 6: Installation
INSTALLATION The appliance belongs to class 3 and is TECHNICAL INFORMATION therefore subject to all the provisions FOR THE INSTALLER established by the provisions governing such Installation, adjustments of controls and appliances. maintenance must only be carried out by a 4) FIXING THE HOT PLATE qualified engineer. -
Page 7: Room Ventilation
INSTALLATION I M P O R T A N T I N S T A L L A T I O N 7) GAS CONNECTION I N S T R U C T I O N S Before connecting the appliance, check that the values on the data label affixed to the underside The installer should note that the appliance that of the hot plate correspond to those of the gas... -
Page 8: Electrical Connection
INSTALLATION When the appliance is connected straight to the 8) ELECTRICAL CONNECTION electricity main: The electrical connections of the appliance - Install an omnipolar circuit-breaker between the must be carried out in compliance with the appliance and the electricity main. This circuit- provisions and standards in force. - Page 9 ADJUSTMENTS Always disconnect the appliance from the the burner flame has been adequately regulated to electricity main before making any adjustments. the "Reduced rate" position. All seals must be replaced by the technician at the end of any adjustments or regulations. Check that the flame does not go out when the Our burners do not require primary air knob is sharply switched from the "Full on"...
-
Page 10: Replacing The Injectors
CONVERSIONS The technician must reset any seals on the 10) REPLACING THE INJECTORS regulating pre-regulating devices. The burners can be adapted to different types of The envelope with the injectors and the labels can gas by mounting injectors suited to the type of gas be included in the kit, or at disposal to the in question. - Page 11 SERVICING Always disconnect the appliance from the - Lightly spread the cone with the relative grease. electricity and gas mains before proceeding - Fit the cone back in place, operate it several with any servicing operation. times and then remove it again. Eliminate any excess grease and check that the gas ducts have 11) REPLACING HOT PLATE PARTS not become clogged.
- Page 12 SERVICING CABLE TYPES AND SECTIONS SINGLE - PHASE TYPE OF HOT PLATE TYPE OF CABLE POWER SUPPLY Gas hot plate H05 RR - F Section 3 x 0.75 mm ATTENTION!!! If the power supply cable is replaced, the installe should leave the ground wire longer than the phase conductors (fig.
- Page 13 TECHNICAL DATA ON THE DATA LABEL 5 BURNERS 4 BURNERS CATEGORY = II CATEGORY = II 2H3+ 2H3+ G30 - BUTANE = 28 - 30 mbar G30 - BUTANE = 28 - 30 mbar G31 - PROPANE = 37 mbar G31 - PROPANE = 37 mbar G20 - NATURAL = 20 mbar G20 - NATURAL = 20 mbar...
- Page 14 TECHNICAL DATA FOR THE APPLIANCE GAS REGULATION TECHNICAL ASSISTENCE AND SPARE PARTS Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.
- Page 15 Malaysia Kuala Lumpur TEKA KÜCHENTECHNIK 3 – 762.01.600 3 – 762.01.626 (MALAYSIA) Mexico Mexico D.F. TEKA MEXICANA S.A. DE C.V. 5 - 762.04.90 5 – 762.05.17 Poland Warszawa TEKA POLSKA SP Z O.O. 22 - 652.18.94 22 - 850.12.48 Portugal Ilhavo TEKA PORTUGUESA LTDA.
