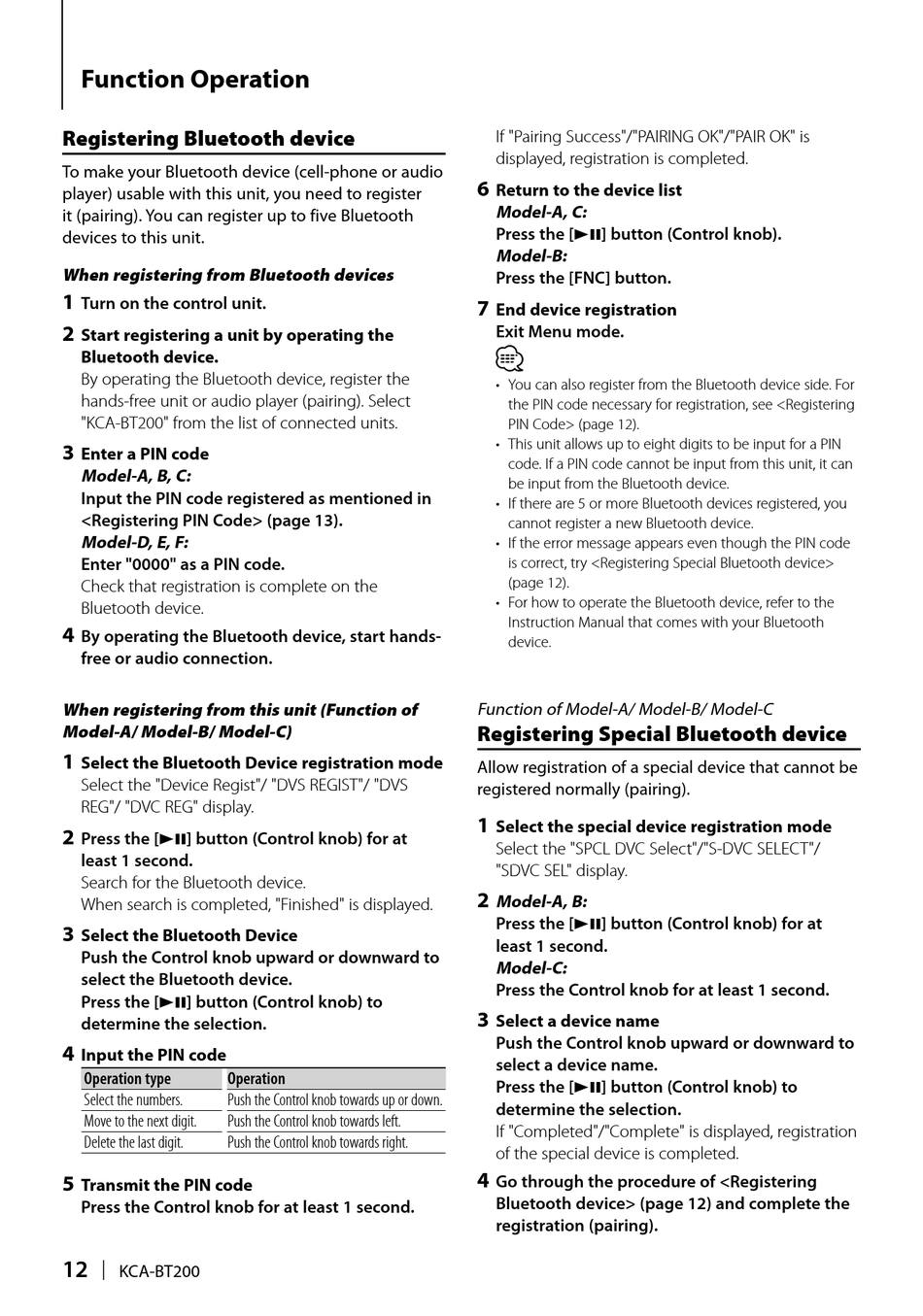

Function Operation

Registering Bluetooth device

To make your Bluetooth device (cell-phone or audio
player) usable with this unit, you need to register
it (pairing). You can register up to five Bluetooth
devices to this unit.
When registering from Bluetooth devices
1
Turn on the control unit.

2

Start registering a unit by operating the
Bluetooth device.
By operating the Bluetooth device, register the
hands-free unit or audio player (pairing). Select
"KCA-BT200" from the list of connected units.
3
Enter a PIN code
Model-A, B, C:
Input the PIN code registered as mentioned in
<Registering PIN Code> (page 13).
Model-D, E, F:
Enter "0000" as a PIN code.
Check that registration is complete on the
Bluetooth device.
4
By operating the Bluetooth device, start hands-
free or audio connection.
When registering from this unit (Function of
Model-A/ Model-B/ Model-C)
1
Select the Bluetooth Device registration mode
Select the "Device Regist"/ "DVS REGIST"/ "DVS
REG"/ "DVC REG" display.
2
Press the [38] button (Control knob) for at
least 1 second.
Search for the Bluetooth device.
When search is completed, "Finished" is displayed.
3
Select the Bluetooth Device
Push the Control knob upward or downward to
select the Bluetooth device.
Press the [38] button (Control knob) to
determine the selection.
4
Input the PIN code
Operation type Operation
5
Transmit the PIN code
Press the Control knob for at least 1 second.
12
|
KCA-BT200
If "Pairing Success"/"PAIRING OK"/"PAIR OK" is
displayed, registration is completed.
6
Return to the device list
Model-A, C:
Press the [38] button (Control knob).
Model-B:
Press the [FNC] button.
7
End device registration
Exit Menu mode.
⁄
• You can also register from the Bluetooth device side. For
the PIN code necessary for registration, see <Registering
PIN Code> (page 12).
• This unit allows up to eight digits to be input for a PIN
code. If a PIN code cannot be input from this unit, it can
be input from the Bluetooth device.
• If there are 5 or more Bluetooth devices registered, you
cannot register a new Bluetooth device.
• If the error message appears even though the PIN code
is correct, try <Registering Special Bluetooth device>
(page 12).
• For how to operate the Bluetooth device, refer to the
Instruction Manual that comes with your Bluetooth
device.
Function of Model-A/ Model-B/ Model-C

Registering Special Bluetooth device

Allow registration of a special device that cannot be
registered normally (pairing).
1
Select the special device registration mode
Select the "SPCL DVC Select"/"S-DVC SELECT"/
"SDVC SEL" display.
2
Model-A, B:
Press the [38] button (Control knob) for at
least 1 second.
Model-C:
Press the Control knob for at least 1 second.
3
Select a device name
Push the Control knob upward or downward to
select a device name.
Press the [38] button (Control knob) to
determine the selection.
If "Completed"/"Complete" is displayed, registration
of the special device is completed.
4
Go through the procedure of <Registering
Bluetooth device> (page 12) and complete the
registration (pairing).
