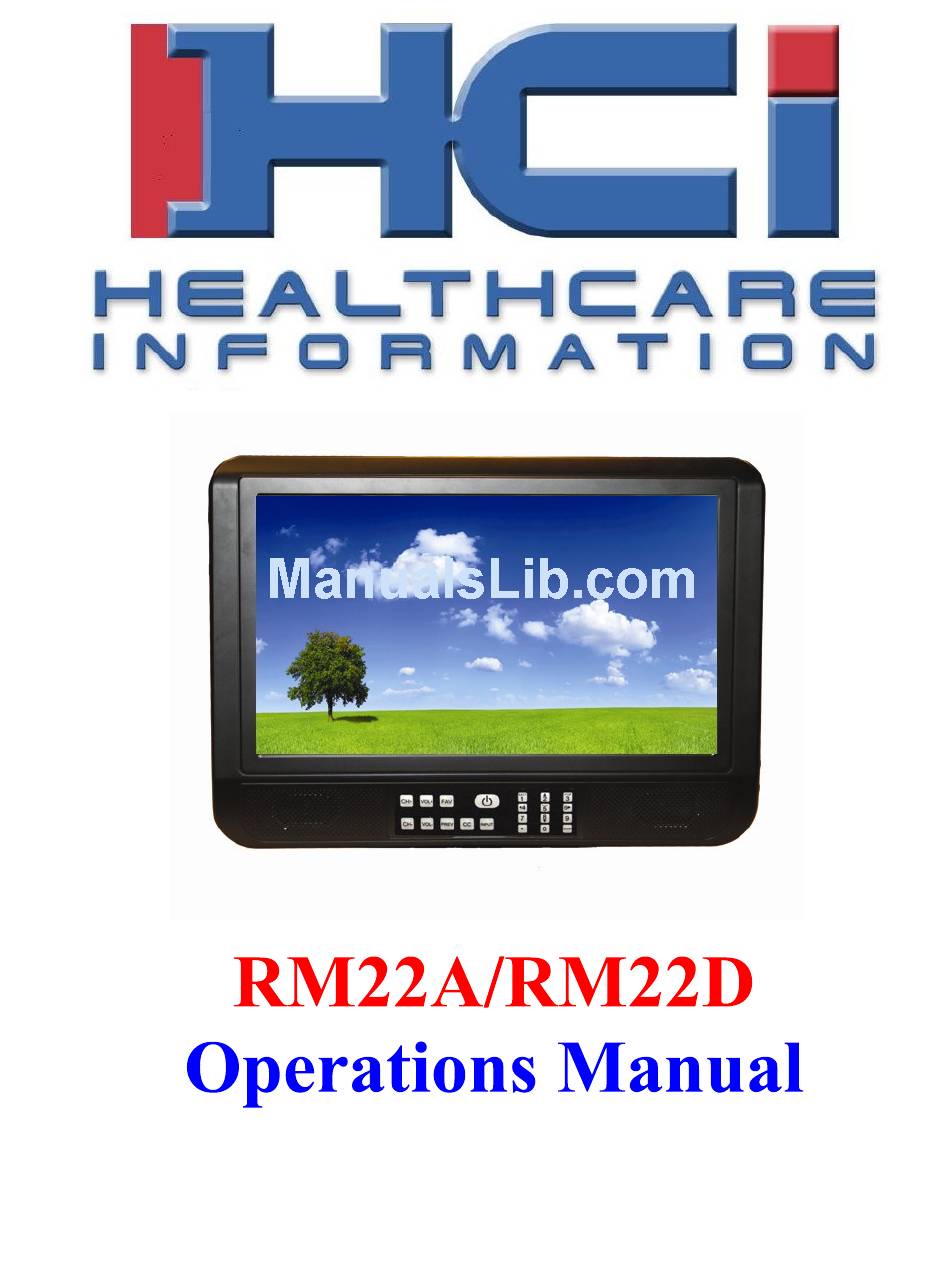

- Page 1 REVISION 1.03...
-
Page 3: Table Of Contents
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL TABLE OF CONTENTS LED Control KeyPad Lock SAFETY INSTRUCTIONS OSD Timer Restore Default PACKAGE CONTENTS Lock Menu PRODUCT INTRODUCTION 8-11 Parental Control IR Remote Control Change Password 22 I/O Panels System Lock Keypad Canada RRT Setting INSTALLATION... -
Page 4: Regulatory Information
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and this apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. - Page 5 ---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL CAUTION* THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND REPAIR YOURSELF. REFER SERVIVING TO QUALIFIED PERSONNEL.
-
Page 6: Safety Instructions
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 7: Package Contents
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL PACKAGE CONTENTS After opening, carefully check the package contents: 22 Inch LCD-TV IR Remotes are shipped per order. Manuals are shipped per order* *The latest version of this manual can be downloaded from www.hci-tv.com HealthCare Information, LLC... -
Page 8: Product Introduction
USED ENTER FUNCTION CODES AND USER FUNCTIONS BACK NO FUNCTION HOME NO FUNCTION MEDIA CONTROL CONTROLS MEDIA PLAYBACK MEDIA TITLE DISPLAYS INFORMATION ABOUT CURRENT SELECTION NOTE: All HCI BedMate and RoomMate sets use the same IR remote control. HealthCare Information, LLC... -
Page 9: I/O Panels
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL PRODUCT INTRODUCTION REAR I/O PANEL LEFT SIDE INPUT PANEL HealthCare Information, LLC... -
Page 10: Dvd
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL OPTIONAL DVD PLAYER HealthCare Information, LLC... -
Page 11: Keypad
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL PRODUCT INTRODUCTION FRONT PANEL Button Definitions CHANNEL UP - Goes to the next higher programmed channel. If TV is on the highest programmed channel, goes to lowest programmed channel. CHANNEL DOWN - Goes to the next lower programmed channel. If TV is on the lowest programmed channel, goes to highest programmed channel. -
Page 12: Installation
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL BASIC CONNECTIONS .Equipment with Composite Audio and Video Outputs You can connect a device with composite audio/video outputs such as a DVD or VCR player to the composite input jacks on the left side of the monitor. Connect the video output of the device to the yellow jack, the right audio output of the device to the white jack and the left video output of the device to the red jack. -
Page 13: Setup And Operation
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL SETUP AND OPERATION Installing the IR Remote Control Batteries Turn the IR Remote over. Press down on the arrow and slide the battery cover off the bottom. Install the two included AAA batteries. The polarity is indicated on the bottom of the battery compartment. -
Page 14: Advanced Setup
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL ADVANCED SETUP Enter function code “9999” and press the “SETUP” button on the IR remote to enter the main setup menu. See page 26 for a full menu tree. Use the navigation buttons to select and change menu items. Press the "BACK" button to go back one menu level, press "ENTER"... -
Page 15: Color
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Color Adjusts the color level of the display. Tint Adjusts color balance. Sharpness Adjusts sharpness of the display. Color Mode Adjusts the over all color scheme. Selections are: Warm-Cool-Normal Audio Menu Advanced Selects advanced source. Selections are: TV Max Volume –... -
Page 16: Sound Mode
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Sound Mode Selects the audio mode. Selections are: Personal - Standard – Music – Movie Personal Allows user to adjust sound settings. Selections are: Standard Default factory setting. Music Default setting for music. Movie Default setting for movie. -
Page 17: Closed Caption
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Closed Sets Closed Caption mode. Caption CC Mode Sets Closed Caption mode. Selections are. Off – ON – CC on & Mute – CC off & Mute Closed Captions off. Closed Captions on. CC on & Mute CC off &... -
Page 18: Usb Clone
NOTE: To change the IR band of the IR remote, press and hold the power button on the IR remote for 10 seconds. The HCI remote can use Band 1 and Band 2. Band 3 and Band 4 are for universal remotes. Off disables the IR receiver. You can use the front panel left/right arrow buttons to change this selection also. -
Page 19: Keypad Lock
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Keypad Disables the front panel keypad on models equipped with keypad. Selections are: Lock Off – Lock 1 – Lock 2 Keypad functions normally. Lock 1 Only POWER button functions. Lock 2 CH+, CH-, VOL+, VOL- and POWER button function. -
Page 20: Channel Menu
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Channel Menu Air / Cable Selects signal source. Selections are: Air – Cable Select if using off air antenna. Cable Select if connected to cable system. Auto Scan Automatically scans for available channels. Cable Determines type of cable system being used. Selections are: System AUTO –... -
Page 21: Patient Functions
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL FAVORITES The set BM15II can store 10 favorite channels for quick access. To set up and access the favorite channels: 1. Tune to the channel you wish to add to or erase from the favorites list. 2. Press and hold the FAV button on the IR remote until ADDING..OK or ERASING..OK appears on the upper left of the display. -
Page 22: Pillow Speaker/ Sip & Puff Operation
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL PILLOW SPEAKER & SIP / PUFF DEVICE OPERATION For pillow speakers with an analog (rotary) type volume control, you may wish to lock the TV volume at a preset level to assure proper volume to the pillow speaker at all times. Some digital pillow speakers have rotary volume controls. - Page 23 ---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL MENU TREE HealthCare Information, LLC...
-
Page 24: Parental Control
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL PARENTAL CONTROL TV RATINGS United States TV-Y Content appropriate for all ages. TV-Y7 Content may not be suitable for children under 7 years of age. TV-Y7-FV Content may not be suitable for children under 7 years of age. Contains fantasy violence. - Page 25 ---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Content suitable for the entire family. Minimal violence, no profanity or sexual content. Parental guidance suggested. Moderate violence, mild profanity, brief nudity and sexual references allowed if important to the story line. Content intended for viewers over 14 years of age.
-
Page 26: Key Define
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Use the arrow buttons to select rating levels. Press the ENTER button to block or unblock each rating. Some ratings will effect the rating below them. Press the BACK button when finished. Select MPAA. Use the right arrow button to select the highest rating you wish to allow. -
Page 27: Editing Banks
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL BANKS The TV has four banks (also know as tiers) to store active channel lists. When an auto scan is preformed, all channels found are set to active in BANK 1. The default bank is BANK1. Using the bank edit function, the active channels can be enabled or disabled in each bank. -
Page 28: Basic Operation
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL DVD PLAYER (OPTIONAL) NOTE: The TV must be in DVD mode to access the DVD functions. Use the “INPUT button on the front panel or the “Source” button on the IR remote control to select the DVD source. -
Page 29: Advanced Dvd Operation
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL ADVANCED DVD OPERATION Play Press " " button on the remote control or the "5 ENTER" button on front monitor from the title menu; while playing the DVD, you may play your favorite title directly with title selection by pressing the "SETUP"... -
Page 30: Subtitle
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Subtitle (Only for DVD and Super VCD discs) Press CC button once to display current sub-title. Press again to toggle between different subtitle modes ZOOM (Only for DVD/ Super VCD/ VCD / Mp3 and JPEG discs) There are six zoom modes. Press the “ZOOM” button of the front panel or the “SCREEN SIZE”... -
Page 31: Preference Page
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL PREFERENCE PAGE TV TYPE Selects TV type, selections are: PAL - MULTI - NTSC. AUDIO Selects the audio language. Selections are: ENGLISH - FRENCH - SPANISH - GERMAN - PORTUGUESE - ITALIAN - DUTCH SUBTITLE Sets subtitle language. Selections are:... -
Page 32: Specifications
---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL SPECIFICATIONS DIMENSIONS HealthCare Information, LLC... - Page 33 ---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL GENERAL SPECIFICATIONS Cabinet Color Standard color - silver / black bezel Custom colors available Dimensions L453 x W94 x H356 mm Weight (Lbs) 11 Lbs Shipping Weight (Lbs) 16.7 Lbs Shipping Dimensions (mm) (L) 604 x (W) 225 x (H) 517 mm...
- Page 34 ---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL Digital Media Video Formats Supported MPEG - 1, MPEG - 2, MPEG - 4, WMV, WMV - HD, AVI Photo Formats Supported JPEG, BMP, GIF, PNG Music Formats Supported MP2, MP3, WMA, WMA - Pro Special Features...
- Page 35 HCI warrants, to the original purchaser only that all new HCI televisions (excluding any equipment manufactured by others and included in HCI shipment) are free from defects in material for a period of two years from the date of shipment.
- Page 36 ---------------------------------------------------------------------------RM22A/RM22D OPERATIONS MANUAL HealthCare Information, LLC...
- Page 38 DID WE MENTION THE ROOMMATE SERIES OF TVS? AVAILABLE IN 20”, 26”, 32, & 42” SIZES HealthCare Information, LLC 113 Commerce Blvd. Loveland, OH 45140 800-783-8105 ©Copyright 2009, HealthCare Information, L...
