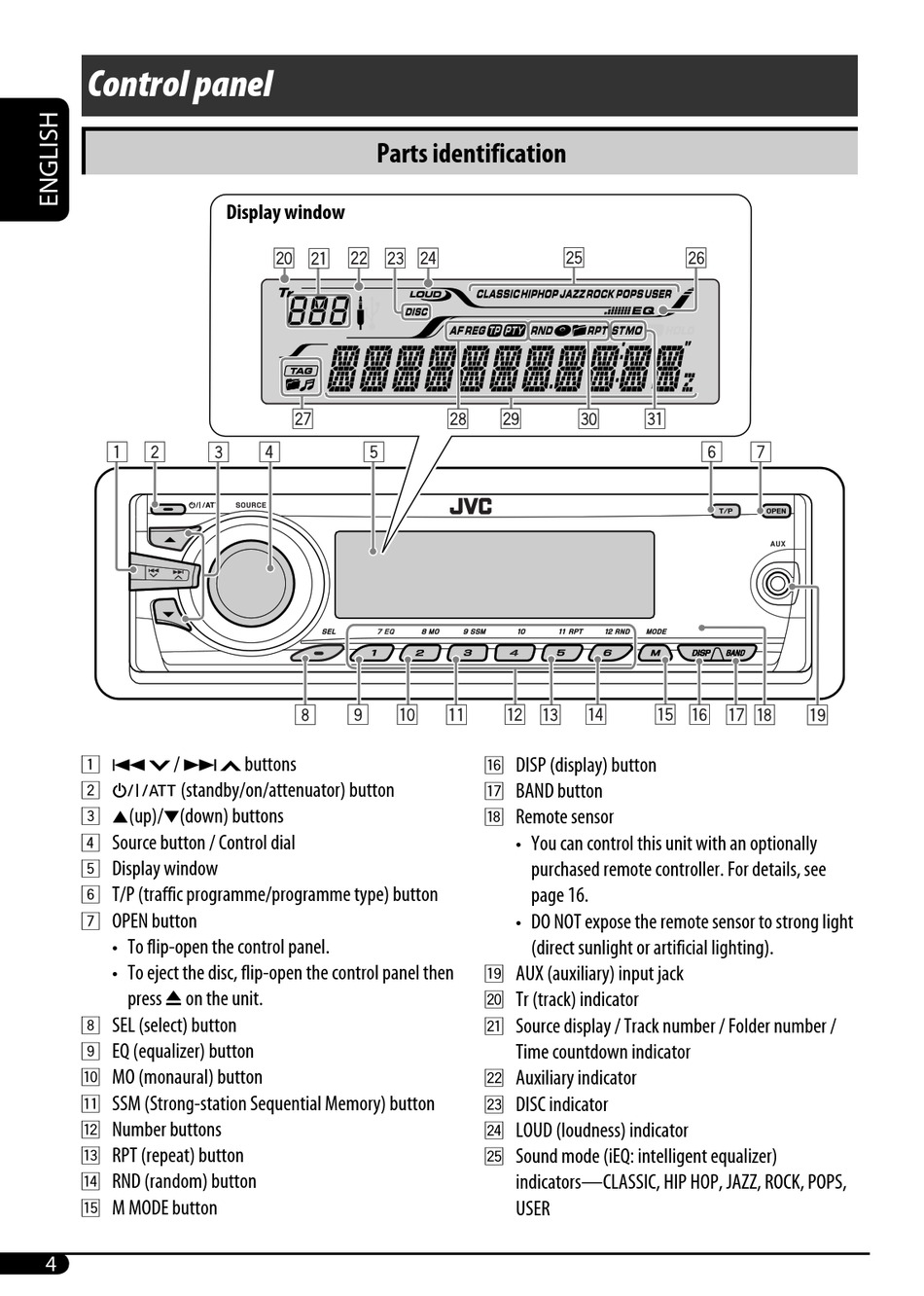

Control panel

1 4 ¢
/
2
(standby/on/attenuator) button
3 5 ∞
(up)/ (down) buttons
4
Source button / Control dial
5
Display window
6
T/P (traffic programme/programme type) button
7
OPEN button
• To flip-open the control panel.
• To eject the disc, flip-open the control panel then
0
press on the unit.
8
SEL (select) button
9
EQ (equalizer) button
p
MO (monaural) button
q
SSM (Strong-station Sequential Memory) button
w
Number buttons
e
RPT (repeat) button
r
RND (random) button
t
M MODE button
4

Parts identification

Display window
buttons y
DISP (display) button
u
BAND button
i
Remote sensor
• You can control this unit with an optionally
purchased remote controller. For details, see
page 16.
• DO NOT expose the remote sensor to strong light
(direct sunlight or artificial lighting).
o
AUX (auxiliary) input jack
;
Tr (track) indicator
a
Source display / Track number / Folder number /
Time countdown indicator
s
Auxiliary indicator
d
DISC indicator
f
LOUD (loudness) indicator
g
Sound mode (iEQ: intelligent equalizer)
indicators—CLASSIC, HIP HOP, JAZZ, ROCK, POPS,
USER
