Indications
SUB.W FREQ
Subwoofer cutoff
frequency
TAG DISPLAY
Tag display
AMP GAIN
Amplifier gain control
IF BAND
Intermediate frequency
band

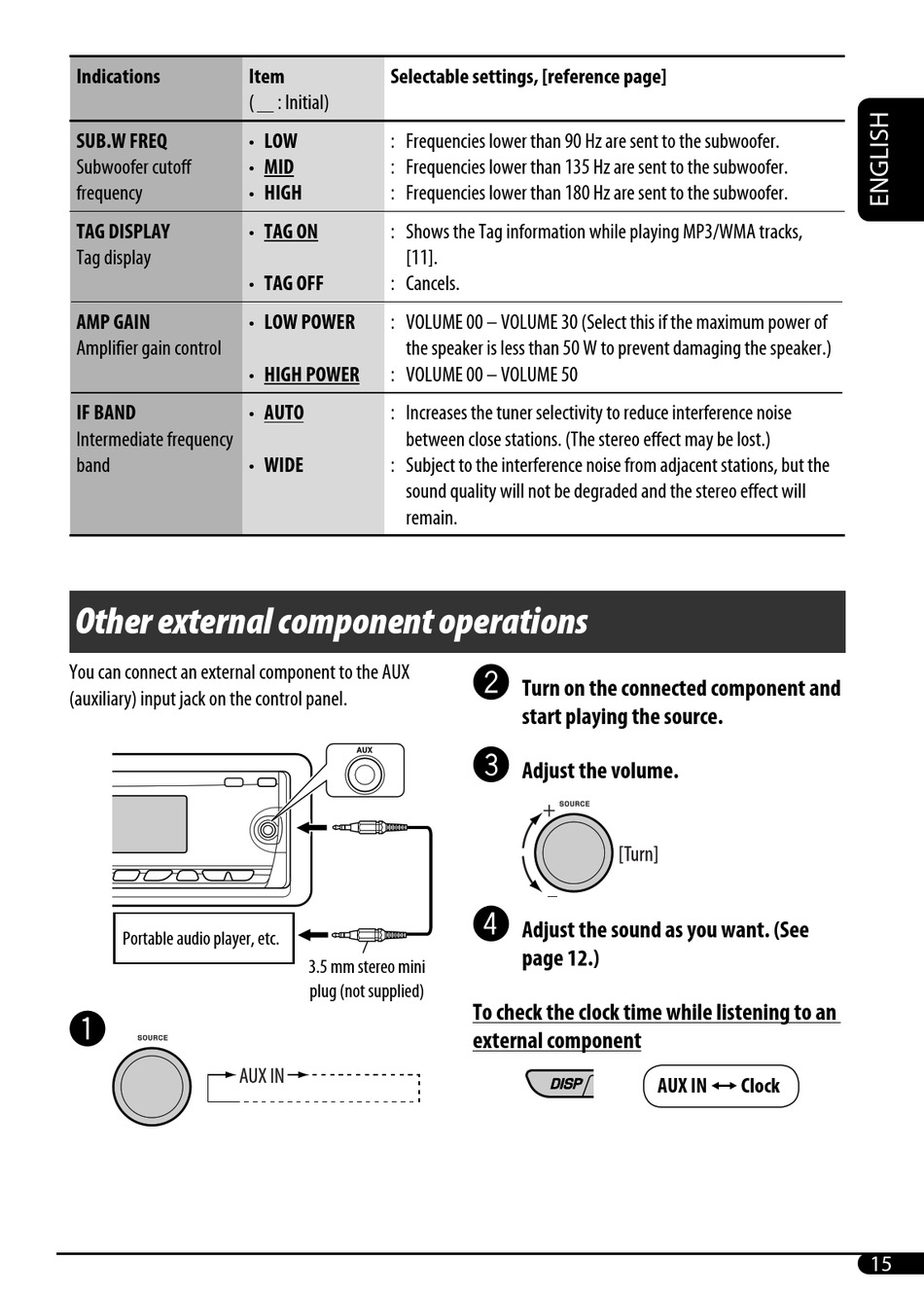

Other external component operations

You can connect an external component to the AUX
(auxiliary) input jack on the control panel.
Portable audio player, etc.
~
Item Selectable settings, [reference page]
( : Initial)
• LOW : Frequencies lower than 90 Hz are sent to the subwoofer.
• MID : Frequencies lower than 135 Hz are sent to the subwoofer.
• HIGH : Frequencies lower than 180 Hz are sent to the subwoofer.
• TAG ON : Shows the Tag information while playing MP3/WMA tracks,
[11].
• TAG OFF : Cancels.
• LOW POWER : VOLUME 00 – VOLUME 30 (Select this if the maximum power of
the speaker is less than 50 W to prevent damaging the speaker.)
• HIGH POWER : VOLUME 00 – VOLUME 50
• AUTO : Increases the tuner selectivity to reduce interference noise
between close stations. (The stereo effect may be lost.)
• WIDE : Subject to the interference noise from adjacent stations, but the
sound quality will not be degraded and the stereo effect will
remain.
3.5 mm stereo mini
plug (not supplied)
Ÿ
Turn on the connected component and
start playing the source.
!
Adjust the volume.
⁄
Adjust the sound as you want. (See
page 12.)
To check the clock time while listening to an
external component
Ô
AUX IN Clock
15
