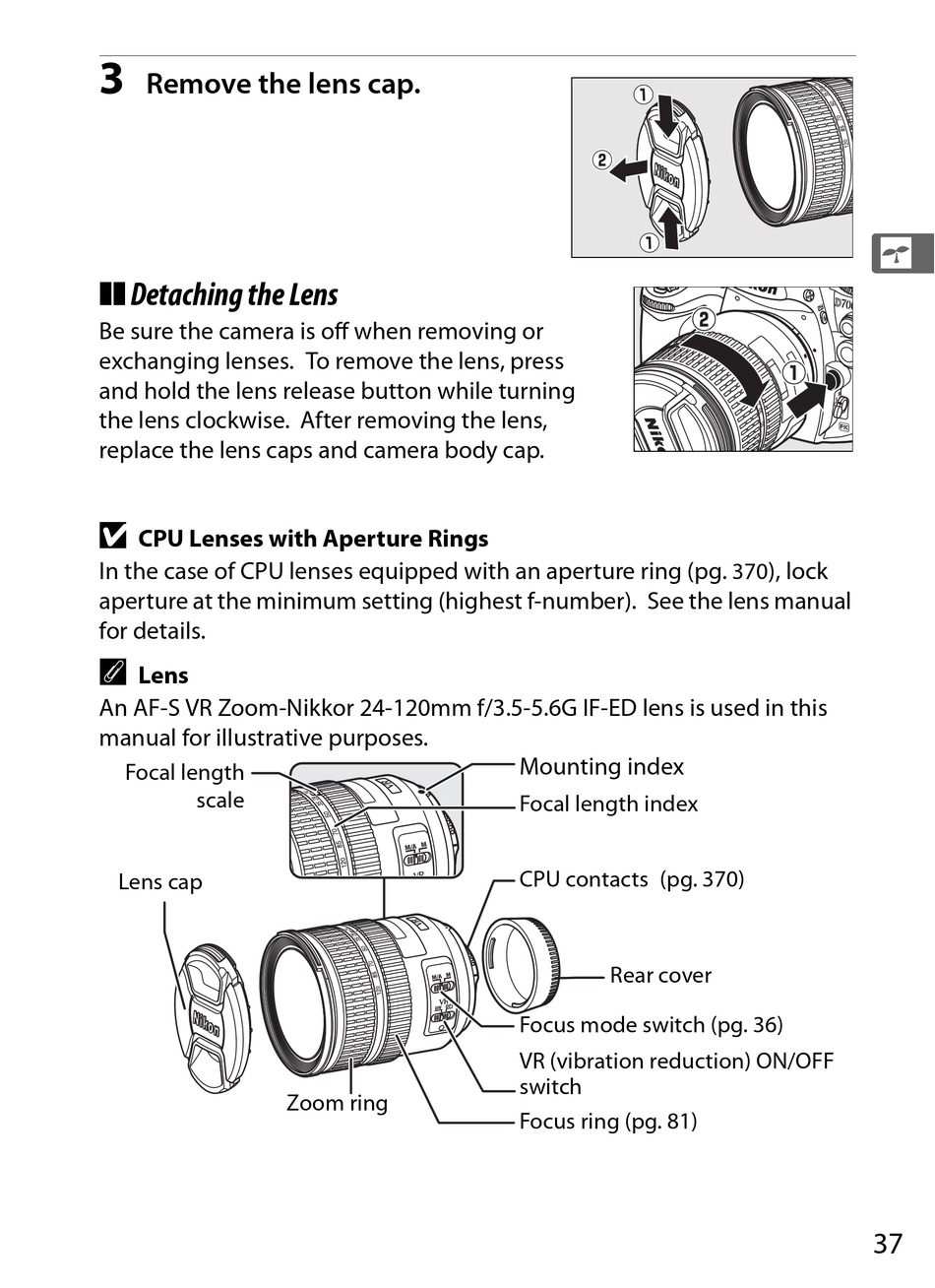

Nikon D700 User Manual page 63

3
Remove the lens cap.
❚❚ Detaching the Lens
Be sure the camera is off when removing or
exchanging lenses. To remove the lens, press
and hold the lens release button while turning
the lens clockwise. After removing the lens,
replace the lens caps and camera body cap.
D
CPU Lenses with Aperture Rings
In the case of CPU lenses equipped with an aperture ring (pg.
aperture at the minimum setting (highest f-number). See the lens manual
for details.
A
Lens
An AF-S VR Zoom-Nikkor 24-120mm f/3.5-5.6G IF-ED lens is used in this
manual for illustrative purposes.
Focal length
scale
Lens cap
Zoom ring
w
Mounting index
Focal length index
CPU contacts (pg. 370)
Rear cover
Focus mode switch (pg. 36)
VR (vibration reduction) ON/OFF
switch
Focus ring (pg. 81)
s
), lock
370
37
