Nikon D700 User Manual page 101

A

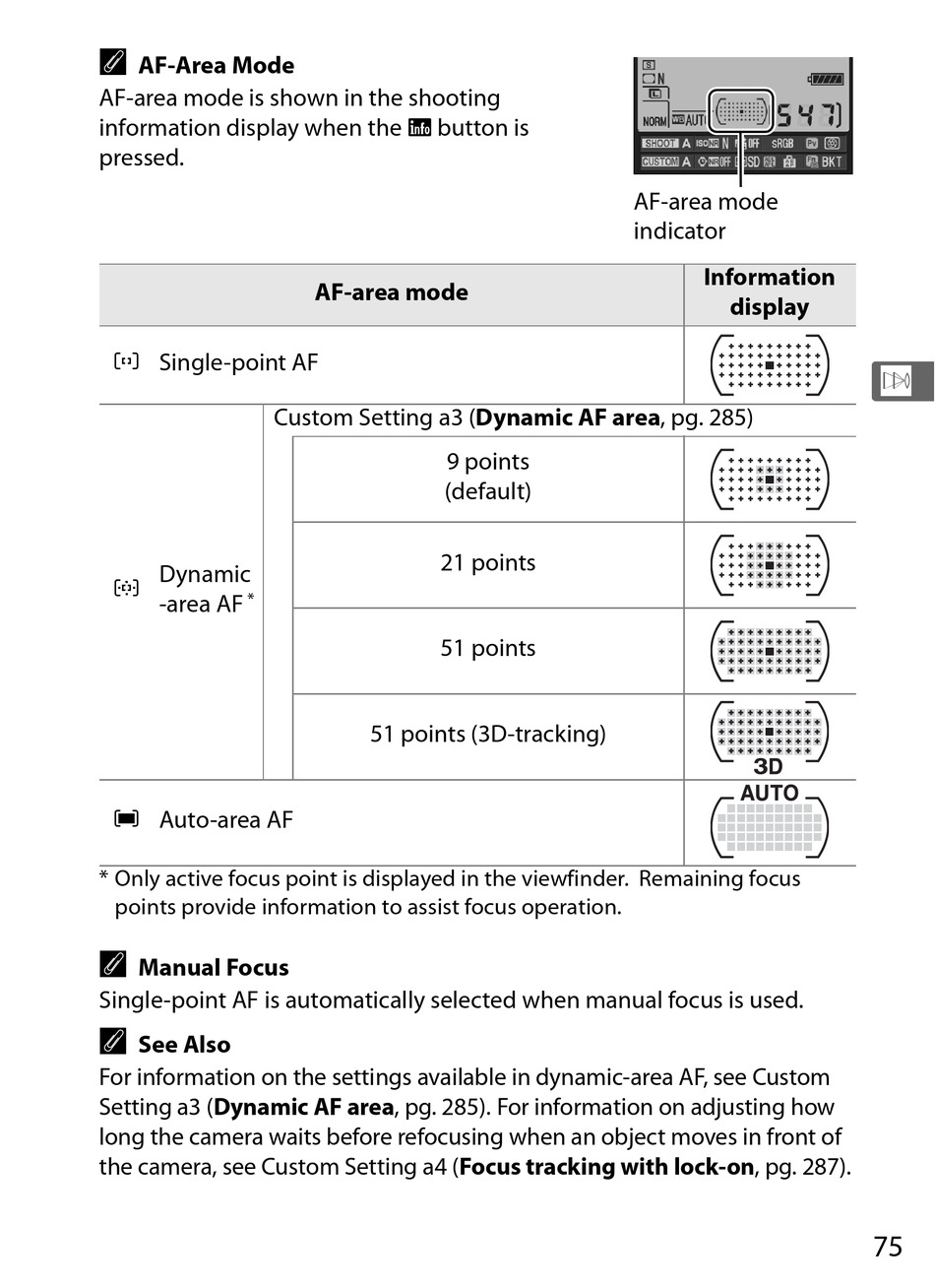

AF-Area Mode
AF-area mode is shown in the shooting
information display when the R button is
pressed.
K Single-point AF
Custom Setting a3 (Dynamic AF area, pg. 285)
Dynamic
I
*
-area AF
H Auto-area AF
* Only active focus point is displayed in the viewfinder. Remaining focus
points provide information to assist focus operation.
A
Manual Focus
Single-point AF is automatically selected when manual focus is used.
A
See Also
For information on the settings available in dynamic-area AF, see Custom
Setting a3 (Dynamic AF area, pg. 285). For information on adjusting how
long the camera waits before refocusing when an object moves in front of
the camera, see Custom Setting a4 (Focus tracking with lock-on, pg. 287).
AF-area mode
9 points
(default)
21 points
51 points
51 points (3D-tracking)
AF-area mode
indicator
Information
display
N
75
