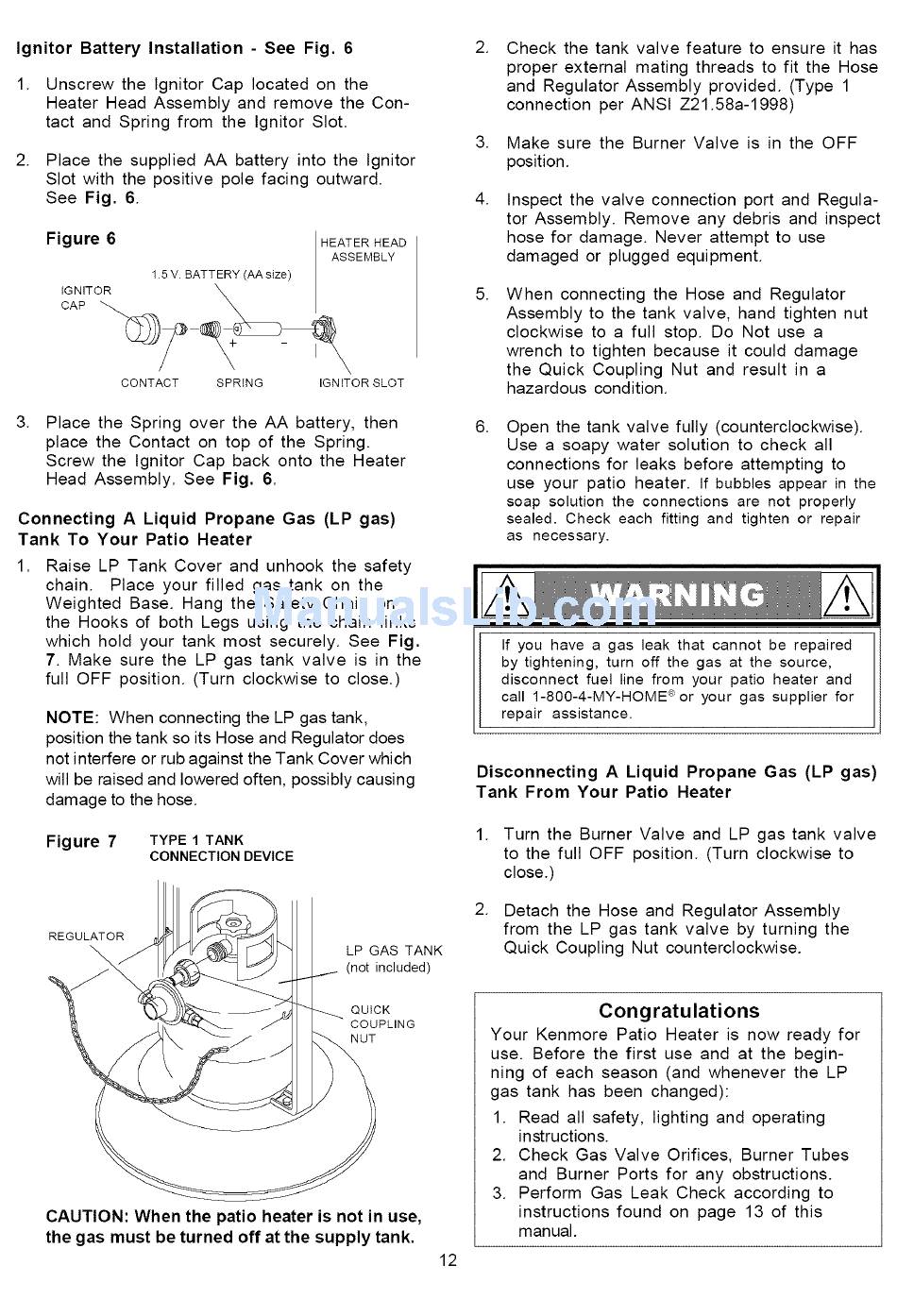

Ignitor Battery Installation
- See Fig. 6
1.
Unscrew the Ignitor Cap located on the
Heater Head Assembly
and remove the Con-
tact and Spring from the Ignitor Slot.
2.
Place the supplied AA battery into the Ignitor
Slot with the positive
pole facing outward.
See Fig. 6.
C_-r,uure 6
HEATER HEAD
ASSEMBLY
1 5 V
BATTERY
(AA size)
IcGANpI T O'_..
__
"_
CONTACT
SPRING
IGNITOR
SLOT
Place the Spring over the AA battery, then
place the Contact
on top of the Spring.
Screw the Ignitor Cap back onto the Heater
Head Assembly.
See Fig. 6.
Connecting
A Liquid Propane Gas (LP gas)
Tank To Your Patio Heater
1.
Raise LP Tank Cover and unhook the safety
chain.
Place your filled gas tank on the
Weighted
Base. Hang the Safety Chain on
the Hooks of both Legs using the chain links
which hold your tank most securely.
See Fig.
7. Make sure the LP gas tank valve
is in the
full OFF position.
(Turn clockwise
to close.)
NOTE: When connecting the LP gas tank,
position the tank so its Hose and Regulator does
not interfere or rub against the Tank Cover which
will be raised and lowered often, possibly causing
damage to the hose.
Figure 7
TYPE 1 TANK
CONNECTION
DEVICE
REGULATOR
LP GAS TANK
(not included)
.
.
.
.
.
Check the tank valve feature to ensure it has
proper external
mating threads to fit the Hose
and Regulator Assembly
provided.
(Type 1
connection
per ANSI Z21.58a-1998)
Make sure the Burner Valve
is in the OFF
position.
Inspect the valve connection
port and Regula-
tor Assembly.
Remove any debris and inspect
hose for damage. Never attempt to use
damaged or plugged equipment.
When connecting
the Hose and Regulator
Assembly to the tank valve, hand tighten nut
clockwise
to a full stop. Do Not use a
wrench to tighten because it could damage
the Quick Coupling
Nut and result in a
hazardous condition.
Open
the tank valve
fully
(counterclockwise).
Use a soapy
water
solution
to check
all
connections
for
leaks
before
attempting
to
use your
patio
heater.
If bubbles
appear in the
soap solution
the connections
are not properly
sealed.
Check each fitting and tighten
or repair
as necessary.
If you
have
a gas
leak
that
cannot
be repaired
by tightening,
turn
off the gas
at the
source,
disconnect
fuel
line from
your
patio
heater
and
call
1-800-4-MY-HOME
® or your
gas
supplier
for
repair
assistance.
Disconnecting
A Liquid Propane Gas (LP gas)
Tank
From Your Patio Heater
1. Turn the Burner Valve and LP gas tank valve
to the full OFF position.
(Turn clockwise
to
close.)
2.
Detach the Hose and Regulator Assembly
from the LP gas tank valve by turning
the
Quick Coupling Nut counterclockwise.
QUICK
COUPLING
NUT
CAUTION: When the patio heater is not in use,
the gas must be turned off at the supply tank.
12
Congratulations
Your Kenmore
Patio Heater is now ready for
use. Before the first use and at the begin-
ning of each season (and whenever
the LP
gas tank has been changed):
1. Read all safety,
lighting and operating
instructions.
2. Check Gas Valve Orifices,
Burner Tubes
and Burner Ports for any obstructions.
3. Perform
Gas Leak Check according
to
instructions
found on page 13 of this
manual.
