Kenmore 141.16322 Operator's Manual page 13
Liquid propane gas (lpg) grill

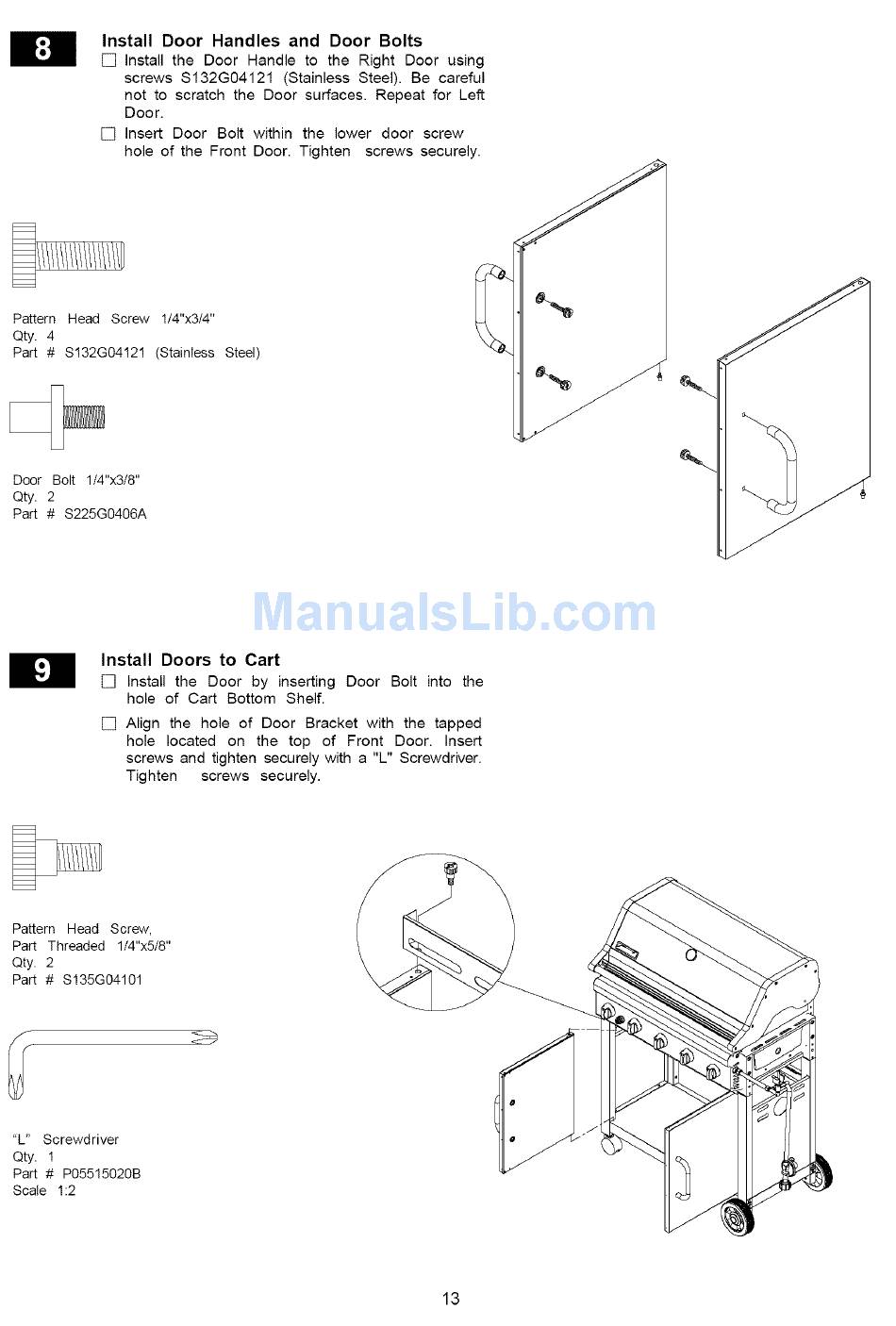

Install
Door
Handles
and
Door
Bolts
[]
install
the
Door
Handle
to the
Right
Door
using
screws
$132G04121
(Stainless
Steel).
Be
careful
not to scratch
the Door
surfaces.
Repeat
for
Left
Door.
[]
insert
Door
Bolt
within
the
lower
door
screw
hole of the Front
Door.
Tighten
screws
securely.
Pattern
Head
Screw
1/4"x3/4"
Qty. 4
Part # S132G04121
(Stainless
Steel)
Door
Bolt 1/4"x3/8"
Qty. 2
Part # S225G0406A
Install
Doors
to Cart
[]
Install the Door by inserting Door
Bolt into the
hole of Cart Bottom
Shelf.
[]
Align
the
hole
of Door
Bracket
with
the
tapped
hole
located
on
the
top
of
Front
Door.
Insert
screws
and tighten
securely
with a "L" Screwdriver.
Tighten
screws
securely.
Pattern
Head
Screw,
Part Threaded
1t4"x5/8"
Qty. 2
Part # $135G04101
"L"
Screwdriver
Qty. 1
Part # P05515020B
Scale
1:2
13
