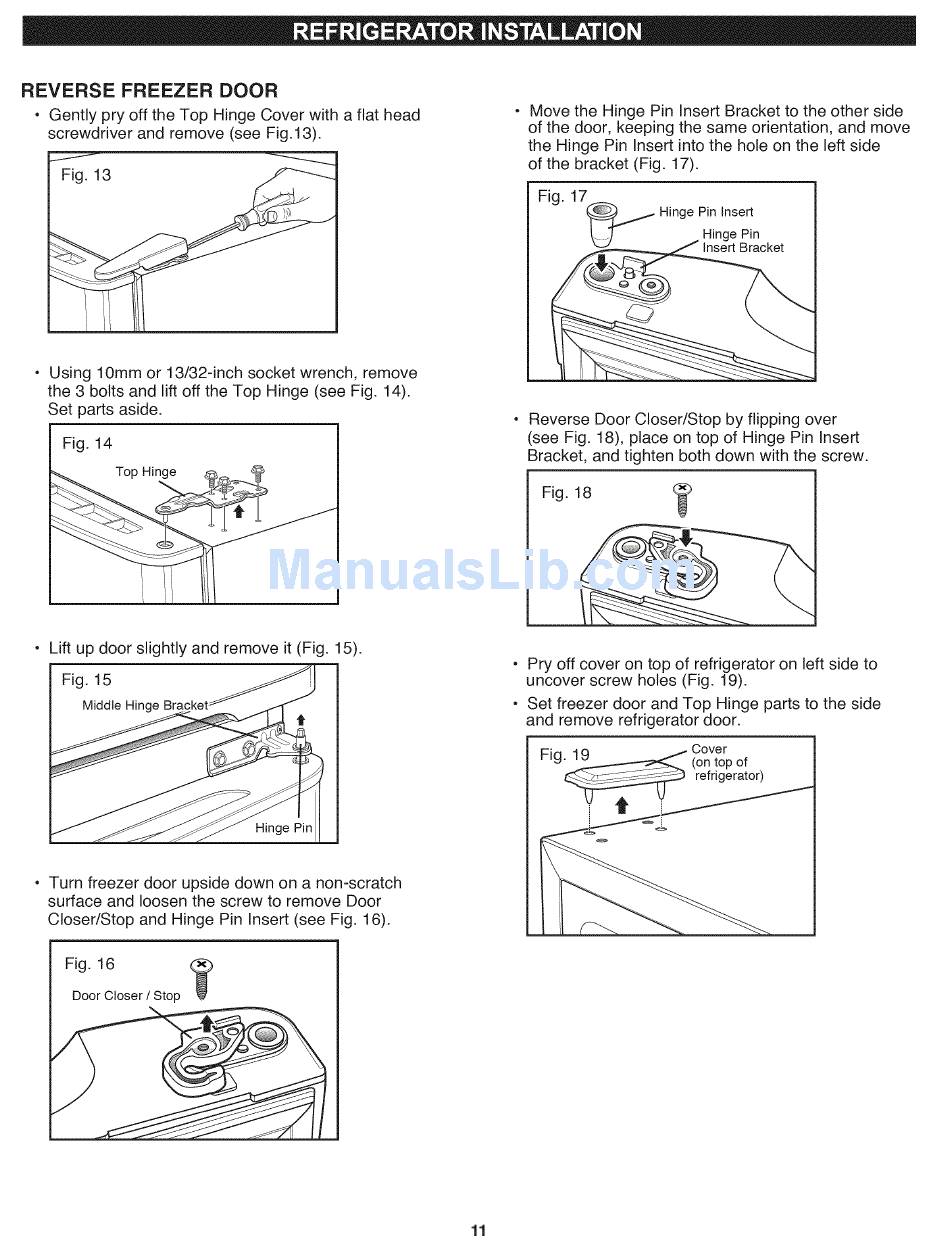

REVERSE
FREEZER
DOOR
° Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove (see Fig.13).
Fig. 13
Using 10mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge (see Fig. 14).
Set parts aside.
Fig. 14
Top Hinge
• Move the Hinge Pin insert Bracket to the other side
of the door, keeping the same orientation, and move
the Hinge Pin insert into the hole on the left side
of the bracket (Fig. 17).
Fig. 17
i_
Hinge Pin tnsert
Hinge Pin
insert Bracket
Reverse Door Closer/Stop by flipping over
(see Fig. 18), place on top of Hinge Pin insert
Bracket, and tighten both down with the screw.
Fig. 18
(_
Lift up door slightly and remove it (Fig. 15).
Fig. 15
Middle Hinge Bracket _
Hinge Pin
Turn freezer door upside down on a non-scratch
surface and loosen the screw to remove Door
Closer/Stop and Hinge Pin insert (see Fig. 16).
• Pry off cover on top of refrigerator on left side to
uncover screw holes (Fig. 19).
• Set freezer door and Top Hinge parts to the side
and remove refrigerator door.
Fi-
1_'
--
Cover
Y" _
(on top of
_
refrigerator)
i
&
Fig. 16
Door Closer / Stop
