Sonic Wall Setup

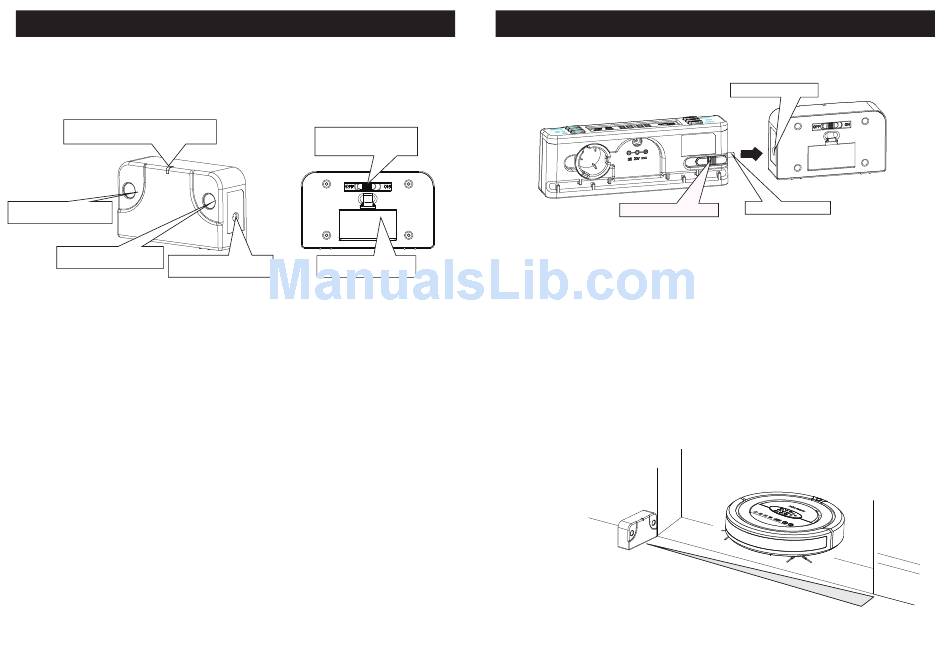

The Sonic Wall device creates an invisible barrier that QQ5 will not
cross, so you can confine the QQ5 to perform cleaning job in certain area.
Power Indicator LED
Sonic Receiver
Sonic Receiver
Charging Port
Instructions:
This CleanMate Sonic Wall is powered by 2 AA rechargeable batteries
1.
(included). Make sure to install the batteries in correct polarity.
2. To turn on the Sonic Wall, slide its Power switch to ON position.
3. After the Sonic Wall is turned on, the blue LED light will lit up in soid
for 70 sec., then the LED light will be off and the Sonic Wall will enter
a power saving standby mode.
4. After QQ5 starts working for 6 seconds, it will wake up Sonic Wall and
blue LED light will be on.
The effective distance of Sonic Wall barrier is about 10 ft (3 meters).
5. When the LED indicator on Sonic Wall is blinking, it indicates that
battery power is low and it is time to re-charge its batteries.
QQ5 Plus
Power Switch
Battery Cover
12
Sonic Wall Setup
Self-Charging Base
Slide Plug Lock
You can charge Sonic Wall batteries using CleanMate charging base
6.
(see steps below).
Step 1: The power switch of Sonic Wall, must set "ON" position.
Step 2: Press and Slide out the "Slide switch" from charging base.
Step 3: Plug the charging plug into charging port on Sonic Wall.
Step 4: Blue LED is blinking. When charging is complete, LED
will light steady.
7. When QQ5 is cleaning, the Sonic Wall position should be at least 3
ft (1m) away from charging base, and avoid facing the Sonic Wall
towards charging base.
When cleaning is done, power Sonic Wall down by sliding its Power
switch to "OFF" position.
When QQ5 detects the invisible barrier
from Sonic Wall, it will turn around and
move to another direction.
QQ5 Plus
Charging Port
Sonic Wall
Charging Plug
