Summary of Contents for PDi PDI-P23LCDE

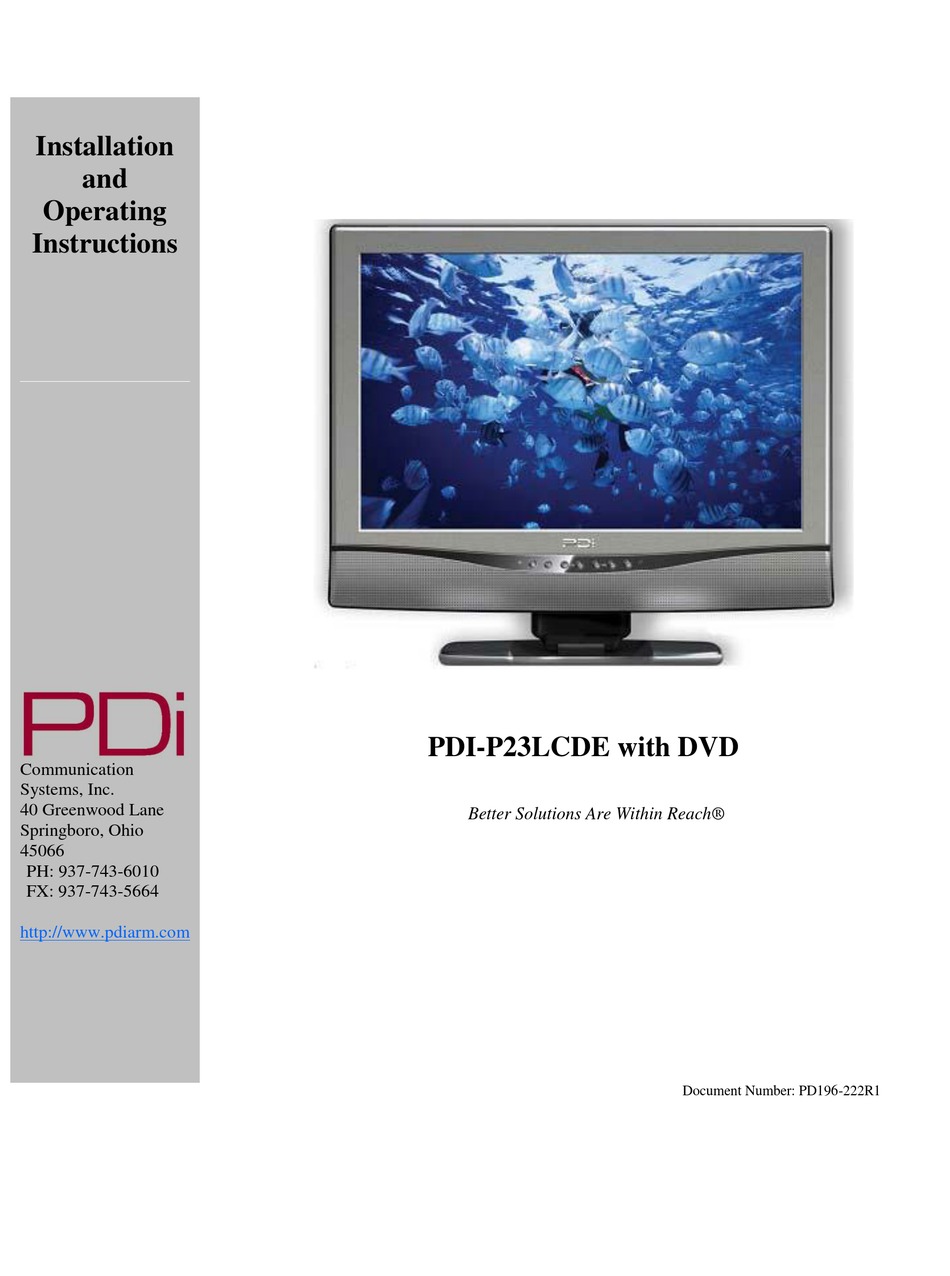

- Page 1 Installation Operating Instructions PDI-P23LCDE with DVD Communication Systems, Inc. 40 Greenwood Lane Better Solutions Are Within Reach® Springboro, Ohio 45066 PH: 937-743-6010 FX: 937-743-5664 http://www.pdiarm.com Document Number: PD196-222R1...
-
Page 2: Warnings
TV does not operate properly, unplug it and call an authorized service center or PDI. OVERHEAD FALLING HAZARD TV can pose a striking hazard when mounted at an elevated position. Use only PDI mounting brackets, support arms, and appropriate hardware to assure TV will not fall from the mounted position. -
Page 3: Rain And Moisture
Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the TV. Use caution when moving the cart. WARNING: To reduce the chance of fire or electric shock, only utilize the accessories recommended by the manufacturer. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 4: Important Safety Instructions
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 5: Fcc, Copyright, Disclaimer And Trademarks
The PDI-P23LCDE TV mounts to the wall typically at the foot of a patient’s bed with the supplied bracket. Select a location that is near an AC wall outlet and that does not expose the TV to bright room lights or sunlight if possible. -
Page 6: Table Of Contents
Composite/S-Video Sound Mode ....................... 21 Channels ..............................21 Signal ..............................21 Auto Program ............................22 Add/Delete Channels .......................... 22 Clear Service Level ..........................24 Copy Service Level ..........................25 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... - Page 7 DVD Content Information ........................41 Setup Menu .............................. 42 Wireless Audio Upgrade ..........................44 Enabling the Wireless Audio Module ......................45 Limited Warranty ............................46 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664...
-
Page 8: Product Accessories
Navigates Teletext displays. CH ▲▼ buttons Teletext is not actively used in Selects next channel. Also the USA. used to navigate programming menus. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 9: Patient Remote Control
33. GOTO button chapter/track. Press to access or exit the DVD search menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 10: Dvd Module
For installation instructions, see page 44 Table Radio – PDI-TR100 For pairing instructions, refer to Document No. PD196-191 (supplied with Table Radio). The PDI-P23LCDE TV must be upgraded with the Wireless Connection Module (PD128-1451) prior to operating the PDI-TR100 Table Radio. -
Page 11: Wall Mounting
Speaker section on page 13 before connecting Jumper Cable) 5. The TV’s tilt can be adjusted by loosening both Pilfer Screws, adjusting tilt, and then tightening the screws. Figure 2 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 12: Across-Room Wiring
(switch-style) pillow speaker. A rear panel mounted switch allows use of different brands of pillow speakers and supports the major brands: Zenith, Philips, and RCA pillow speakers. Please refer to the Pillow Speakers section on page 13 for details. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 13: Connections
6 ANT 14 PILLOW Connection to Cable TV Coax. Pillow Speaker port. NOTE: See page 13. 15 CZ, CP, OFF, CR Pillow Speaker Selector Switch. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 14: Antenna "Ant" Connection
NOTE: The TV is shipped from the factory with the switch in the OFF position. 2. Connect the pillow speaker to the PILLOW jack. 3. Operate the pillow speaker and verify correct control. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 15: Buttons On Tv
Selects the mode to watch TV or use a connected component. 3 CC 7 Remote Control Sensor Sets the closed caption function. Accepts the IR signal from the remote control. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 16: Programming
Better Solutions Are Within Reach Programming The PDI-P23LCDE TV is programmed by a series of menus that can be accessed with a programming remote, part number PD108-420. Access the menus by pressing SETUP on the remote. These menus allow you to add TV channels, adjust the picture and sound, setup external components, and change settings. -
Page 17: Picture
Press ▲ or ▼ to highlight Color Temperature. Access the menu by pressing ►. Press ▲ or ▼ to highlight and select one of the five settings. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 18: Pc Analog/Hdmi Picture
Press ◄ and ► to adjust the setting. (See description of settings above) Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 19: Sound
Press ◄ or ► to select the desired number (0-100). Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 20: Power On Volume
Press ◄ or ► to select HDMI 1or 2, PC, or Component. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 21: Composite/S-Video Sound Mode
Press ◄ or ► to select Air, Cable STD, Cable IRC, or Cable HRC. NOTE: Most hospitals use the Cable STD signal style. Now perform Auto Program or Add/Delete Channels to store channels in the TV’s memory. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 22: Auto Program
NOTE: Digital channel auto programming may take longer than 10 minutes to complete. 10. Press the SETUP button to return to normal TV viewing. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... - Page 23 If there are more analog channels to be added or deleted, repeat steps 6 through 8. For enabling or disabling digital channels, go to the next step. 10. Press ▲ or ▼ to highlight Enable/Disable Digital Channel. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664...
-
Page 24: Clear Service Level
Service Level. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 25: Copy Service Level
■ Parental Lock Enabled Position: ▲▼ Next: ◄► Exit: SETUP Enter the Channels menu Press ▲ or ▼ to highlight Parental Control. Press ► to select it. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 26: Tv Rating
Dialog, Bad Language, Sex, and Violence Scenes. Mature Audience Adults only, may contain: Strong Dialog, Bad Language, TV-MA Only Sex, and Violence Scenes. The sub-rating of TV rating PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 27: Mpaa Rating
Not for children under age 17 under any circumstances. NC-17 under age 17 Strong sexual content. Hard Core Films Same as NC-17 rating. No Rating No Rating MPAA Not Rated PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 28: Change Password
Press ◄ or ► to select Enable or Disable. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 29: Power On Channel
DISABLED = Service Level Channels only. ENABLED = All possible channels. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 30: Features
Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. NOTE: Auto Power On must be set to Disabled for this function to operate. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 31: Bed A/B
Press ▲ or ▼ to highlight Digital Captions. Press ► to select it. Press ▲ or ▼ to highlight the attribute you wish to change. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 32: Digital Mode Time Setup
Press ◄ or ► to select Enabled or Disabled. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 33: Channel To Other Source
Press ◄ or ► to select your desired language. English Francais Espanol Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 34: Sources
TV to power on to the Last source selected. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 35: Fm Radio
▼ to tune to another station. Now the station is deleted. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 36: Cloning
P23LCDE__.tdf file in USB Back: ◄ Press ◄ to return to the Cloning Main Menu. Remove the USB drive to return to normal TV operation. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 37: Restore Setting To Tv
Press ◄ to return to the previous menu. Firmware The firmware for the model PDI-P23LCDE TV is field upgradeable. A data file is written to a USB thumb drive, connected to the TV’s USB interface cable, and updated using the TV’s menus. Once complete, the TV settings must be reprogrammed. -
Page 38: Firmware
Press ▲ or ▼ to highlight Diagnostics. Press ► to select it. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 39: Dvd Module
DVD Module is enabled, it is ready for use. Plug the Power Cable into power supply. Turn on the TV. Press SETUP on the programming remote, PD108-420. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 40: Disk Playback
Gently insert the disc into the slot, with the label side facing the same direction as the front of the TV. The disc will be drawn into the unit and loaded automatically. Side View Place CD/DVD into player with label facing front of TV. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 41: Navigating Menus
Press GOTO, at the bottom of the Patient remote. Press ▲ or ▼ to highlight the desired category Press OK to select the category (categories described on page 41). PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 42: Setup Menu
Press ◄ or ► to highlight the desired Setup Page. Press OK to select it. Press ▲ or ▼ to highlight the desired category selection. Press OK to select it. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... - Page 43 Password Setup what is set in the Parental category. Page Password Change Allows for a new password to be set Exit Setup Menu Close Setup menu PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664...
-
Page 44: Wireless Audio Upgrade
Remove the screw and cover from module opening. Screw Module Opening Cover Remove the tape from the connector cable. Tape Connector Cable Connect Cable to Wireless Module Connector Cable PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 45: Enabling The Wireless Audio Module
■ Power on ARC Mode 16:9 ■ Standby Power Normal ■ Wireless Audio Wireless PDI ■ Analog Speaker Pillow Enabled Position: ▲▼ Next: ◄► Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 46: Limited Warranty
As a condition to obtaining warranty service, written notification must be received by PDI within at least ten (10) days after defect is first observed. Repair of said product requires it to be shipped to the PDI factory in Springboro, Ohio.
