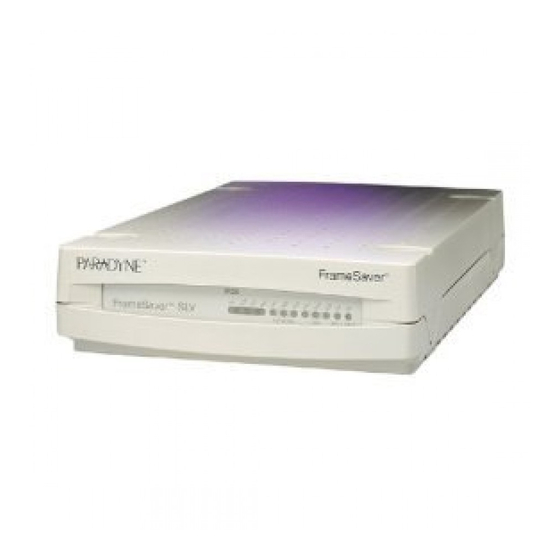

SLV 9126 Router
Installation Instructions
Document Number 9126-A2-GN12-20
May 2003
Contents
Product Documentation Online ..................................................................... 2
Upgrading a Unit to the SLM Feature Set ..................................................... 2
Package Checklist ........................................................................................ 3
Preparation ................................................................................................... 3
Safety Instructions ........................................................................................ 4
Installing the Power Supply and Cord ........................................................... 4
Verifying that Self-Test Passed ..................................................................... 5
Menu Hierarchy ............................................................................................ 6
A Quick Guide to Configuration .................................................................... 9
About the Installation Procedures ................................................................. 10
Full Installation and Setup ............................................................................ 10
Minimal Installation for Service Providers ..................................................... 13
Setting Up Local Management at the Central Site ........................................ 15
Automatic Configuration ............................................................................... 16
Setting Up the Modem .................................................................................. 17
Connecting to the Network ........................................................................... 19
Configuring SNMP Trap Managers and Trap Dial-Out ................................. 20
Connecting to the DSX-1 Interface ............................................................... 21
Connecting the Modem ................................................................................. 22
Connecting the Ethernet Port ....................................................................... 23
Verifying That Data is Being Received ......................................................... 24
Checking PVC Connections ......................................................................... 24
Provisioning the Router Interface ................................................................. 24
Connectors ................................................................................................... 25
Important Safety Instructions ........................................................................ 27
EMI Notices .................................................................................................. 28
Government Requirements ........................................................................... 29
Warranty, Sales, Service, and Training Information ...................................... 31
Document Feedback ..................................................................................... 31
Trademarks ................................................................................................... 31
Patent Notification ......................................................................................... 31
1
NOTE: The FrameSaver
product line has been
renamed to iMarc.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMarc SLV 9126 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paradyne iMarc SLV 9126

  • Page 1: Table Of Contents

    ™ iMarc SLV 9126 Router ® NOTE: The FrameSaver product line has been Installation Instructions renamed to iMarc. Document Number 9126-A2-GN12-20 May 2003 Contents Product Documentation Online ..............2 Upgrading a Unit to the SLM Feature Set ............. 2 Package Checklist ..................3 Preparation ....................
  • Page 2: Product Documentation Online

    SLV SNMP Reference (9000-A2-GB32) iMarc SLV Operations Guide (9000-A2-GB33) iMarc SLV Router Command Line Interface (9000-A2-GB34) To order a paper copy of a Paradyne document, or to speak with a sales representative, please call 1-727-530-2000. Upgrading a Unit to the SLM Feature Set Full Service Level Management (SLM) capability can be activated in units that have the basic diagnostic feature set at any time.
  • Page 3: Package Checklist

    — Modem cable — Ethernet cable A T1 line interface cable for use in Canada (RJ48C-to-CA81A) is available from Paradyne. Contact your sales representative to order Feature Number 3100-F1-510. See the appropriate manual for additional information: „ Troubleshooting: see the iMarc SLV Operations Guide „...
  • Page 4: Safety Instructions

    Safety Instructions Read the Important Safety Instructions on page 27 before you install the unit. Installing the Power Supply and Cord Procedure 1. Insert the power supply’s 4-prong plug into the POWER jack. When inserting the plug at the rear of the iMarc unit, align the plug with the notch above the POWER jack.
  • Page 5: Connecting The Com Port To An Asynchronous Terminal

    Connecting the COM Port to an Asynchronous Terminal A VT100-compatible asynchronous terminal or a PC providing VT100 terminal emulation must be used to set up access to and management of the unit. Procedure 1. Configure the terminal or PC to be compatible with the iMarc unit: —...
  • Page 6: Menu Hierarchy

    Menu Hierarchy The Menu Hierarchy shows the organization of the iMarc unit’s screens. Status System and Test Status Self-Test Results Last System Reset Health and Status Test Status LMI Reported DLCIs DLCI Status CIR (bps) IP Path Connection Device Name Status IP Address Status...
  • Page 7: Configuration System

    Test Network PVC Tests PVC Loopback Send Pattern Monitor Pattern Connectivity Test Call Network Physical Tests Local Line Loopback Local Payload Loopback DSX-1 Physical Tests Remote Line Loopback Send Pattern Monitor Pattern IP Ping Lamp Test Abort All Tests Configuration System Frame Relay and LMI Class of Service Definitions...
  • Page 8 Control Modem Call Directories Directory Number Directory Phone Number System Information Device Name System Name, Location, Contact Date Time Administer Logins Login ID Password Access Level Change Operating Back-to-Back Mode Mode Standard Mode Select Software Current Release Release Alternate Release Switch &...
  • Page 9: A Quick Guide To Configuration

    A Quick Guide to Configuration The iMarc unit should operate using the default (factory-set) configuration options, with exception to the changes specified in these installation instructions. Refer to the following table for help in navigating the menus. Press the . . . To .
  • Page 10: About The Installation Procedures

    About the Installation Procedures There are two methods for installing and setting up the iMarc unit. „ One person can install and set up the unit. If this is the case, see Full Installation Setup. „ An installer can physically install and set up access to the unit, and the network operation center (NOC) can complete the setup.
  • Page 11 It is assumed that frame relay service is turned on at the site. Procedure 1. Select the Easy Install feature. Main Menu → Easy Install 2. Set the Service Type to Frame Relay. 3. Enter the Node IP Address and Subnet Mask. 4.
  • Page 12 12. Configure the network interface according to the local management interface (LMI) and assigned line conditions supplied by the service provider. Configuration → Network → Frame Relay 13. Set up SNMP local management (see Setting Up Local Management at the Central Site on page 15).
  • Page 13: Minimal Installation For Service Providers

    Minimal Installation for Service Providers In the following procedures, once the unit is installed and minimal configuration is completed using the Easy Install feature, the NOC can complete and verify the setup. Physically Installing the Unit and Setting Up for Remote Access It is assumed that frame relay service is turned on at the site.
  • Page 14 Completing Setup of the Unit From the NOC Procedure 1. Access the remote iMarc unit using the dedicated management link, using the Node IP Address that was entered (see Physically Installing the Unit and Setting Up for Remote Access on page 13). 2.
  • Page 15: Setting Up Local Management At The Central Site

    Setting Up Local Management at the Central Site Procedure 1. Create a DLCI for the virtual router port. Configuration → Virtual Router Ports → DLCI Records 2. Save the configuration. 3. Create a Management PVC using the data port DLCI just created. Configuration →...
  • Page 16: Automatic Configuration

    Automatic Configuration The iMarc unit provides several automatic configuration features. Frame Relay Discovery and configuration is one of these features. Main Menu → Auto-Configuration The default discovery mode is 1PPort. In this mode: „ Auto-Configuration is enabled on the virtual router port. „...
  • Page 17: Setting Up The Modem

    Setting Up the Modem The unit has an integral modem for remote management. It is already set up for dial-in access to the unit, with Port Use set to Terminal. Procedure If using the modem for dialed IP network connectivity (SNMP, Telnet, FTP, or trap dial-out): 1.
  • Page 18 Setting Up to Use the Modem PassThru Feature The Modem PassThru feature allows access to the router via a dial-up connection to the unit. When this feature is set up and active, a logical connection between the unit’s modem and COM ports is made, and data received over the modem port is transmitted out the COM port to the router’s auxiliary (AUX) serial port.
  • Page 19: Connecting To The Network

    Connecting to the Network Procedure Now that the iMarc unit is set up, the unit can be connected to the network. 1. Insert the 8-pin connector of the RJ48C network cable into the network interface. 2. Insert the other end of the cable into the RJ48C modular jack. RJ48C Jack POWER...
  • Page 20: Configuring Snmp Trap Managers And Trap Dial-Out

    Configuring SNMP Trap Managers and Trap Dial-Out Once the iMarc unit is connected to the network, SNMP trap managers, SNMP traps, and trap dial-out can be configured. Procedure 1. Select SNMP Traps. Main Menu → Configuration → Management and Communication → SNMP Traps 2.
  • Page 21: Connecting To The Dsx-1 Interface

    Connecting to the DSX-1 Interface Procedure 1. Connect the 8-position modular plug end of the DSX cable to the DSX-1 interface. If your DSX cable has a DB15 end, use a DSX-1 adapter. Refer to the pin assignment information in the iMarc SLV Technical Description to ensure you have proper connections.
  • Page 22: Connecting The Modem

    Connecting the Modem Procedure 1. Insert the RJ11C connector on the modem cable into the Modem/MDM interface. 2. Insert the other end of the cable into the phone service RJ11C jack. POWER ENET DSX-1 RJ11C Jack 02-17302 3. Verify modem operation. If Port Use is set to Terminal (dial-in access): —...
  • Page 23: Connecting The Ethernet Port

    Connecting the Ethernet Port Procedure 1. Insert the 8-pin connector on the Ethernet cable into the ENET port. 2. Insert the other end of the cable into the Ethernet interface of the LAN. POWER ENET DSX-1 02-17303...
  • Page 24: Verifying That Data Is Being Received

    Provisioning the Router Interface The iMarc SLV 9126 Router defaults to bridge mode. Routing without bridging, and simultaneous routing and bridging, are also options. Use the bridge command from the router’s CLI to configure the bridge and routing attributes.
  • Page 25: Connectors

    Connectors COM Port The following table provides the pin assignments for the 9-position EIA-232-C communication port connector. Signal Direction Pin # Data Carrier Detect (DCD) To DTE (Out) Receive Data (RD) To DTE (Out) Transmit Data (TD) From DTE (In) Data Terminal Ready (DTR) From DTE (In) Signal Ground (GND)
  • Page 26 DSX-1 Port The following table provides the pin assignments for the 8-position DSX-1 connector. A DSX-1 Adapter (Feature Number 9008-F1-560) is required for this interface. See the iMarc SLV Technical Reference for more information. Function Circuit Direction Pin # Receive Ring From DTE Receive Tip From DTE...
  • Page 27: Important Safety Instructions

    Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. This product is intended to be used with a 3-wire grounding type plug – a plug which has a grounding pin. This is a safety feature. Equipment grounding is vital to ensure safe operation.
  • Page 28: Emi Notices

    The authority to operate this equipment is conditioned by the requirements that no modifications will be made to the equipment unless the changes or modifications are expressly approved by Paradyne. CANADA – EMI NOTICE: This Class A digital apparatus meets all requirements of the Canadian interference-causing equipment regulations.
  • Page 29: Government Requirements

    Government Requirements Certain governments require that instructions pertaining to connection to the telephone network be included in the user documentation. Specific instructions are listed in the following sections. United States Notice to Users of the Telephone Network This equipment complies with Part 68 of the FCC rules. On the bottom of the housing is a label that contains, among other information, the FCC registration number for this equipment.
  • Page 30 Make the modem connection using a USOC-type RJ11C jack. The modem cannot be used on public coin phone service provided by the telephone company. Connection to party-line service is subject to state tariffs. Contact the state public utility commission, public service commission, or corporation commission for tariff information. After the telephone company has installed the requested services and jacks, you can connect the unit with the cable provided.
  • Page 31: Warranty, Sales, Service, And Training Information

    Trademarks FrameSaver is a registered trademark of Paradyne Corporation. iMarc is a trademark of Paradyne Corporation. All other products and services mentioned herein are the trademarks, service marks, registered trademarks or registered service marks of their respective owners.
  • Page 32    " *9126-A2-GN12-20*...
