Home Theater PC Chassis
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the content of this documentation, its quality, performance, merchantability,
or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is
assumed for inaccuracies. The information contained in this documentation is subject to change without notice.
In no event will nMedia will be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or
documentation, even if advised of the possibility of such damages.
COPYRIGHT
© 2006 by NMEDIA SYSTEM, INC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form by any means without the written permission of NMEDIA SYSTEM, INC.
TECHNICAL SUPPORT
If a problem arises with your system and no solution can be obtained from this user guide, please contact your place of purchase or local dealer.
REVISION HISTORY
V 2.0
October, 2006
Note:
This user guide is designed to provide the user a quick reference for chassis setup. We assume you need
the information regarding how to assemble the system, such as Motherboard, CPU, RAM Memory, Hard
Drive, DVD ROM, Operating System..., etc. Based on this assumption, we make this user guide of quick
installation guide. Please follow the description step by step to assemble the components. If you have any
question in assembling the system, you can contact your dealer or our technical support.
Safety Warning
Turn down the CPU Cooler Fan Speed through the Front Controller may create vital damage to
CPU. Adjust Fan Controller (CPU F.R.S.) appropriately according to the CPU instruction.
(Minimum Fan Speed at 2000 is recommended)
(CPU Fan Speed controller is default to minimum speed of 1800 to prevent CPU damage)
Model: HTPC 180 BA & SA
Color: Black & Silver
Quick Installation Guide
(U.S. & Canada Only)
Version 1.0
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for nMedia HTPC 180 BA
Summary of Contents for nMedia HTPC 180 BA
- Page 1 The information contained in this documentation is subject to change without notice. In no event will nMedia will be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

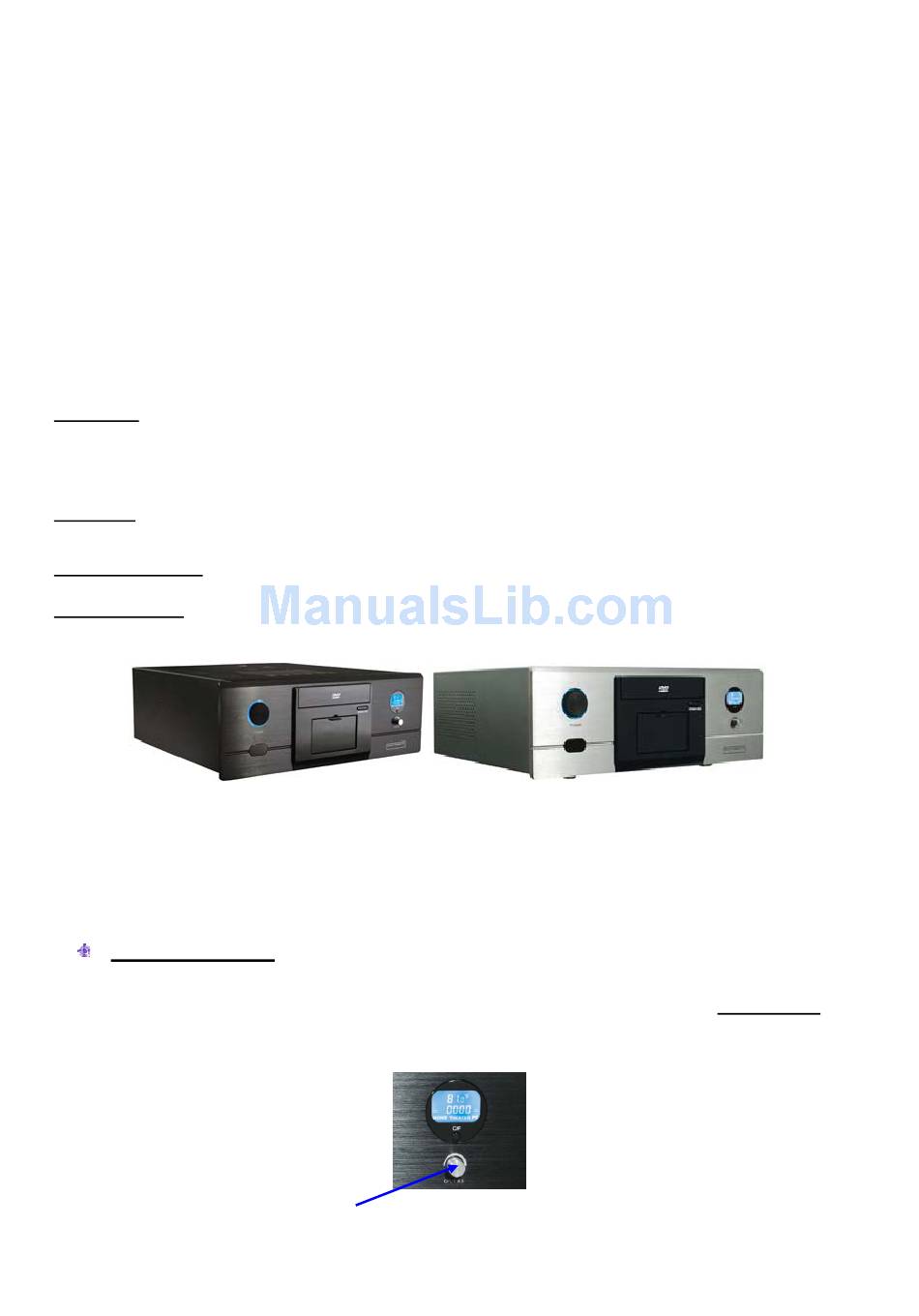

- Page 2 Overview Standard Components Equipped HTPC 180 Chassis nMEDIAPC MP-300 300W Micro ATX Power Supply 60mm Case Fan Air Duct (Constant fresh air to CPU and avoid hot air re-circulation) All-in-1 Card Reader (1 X USB onboard header required) Front Connectors (Onboard headers required) USB 2.0 IEEE 1394 Audio Ports...
-
Page 3: Installation Flowchart (Basic Procedures)
Installation Flowchart (Basic Procedures) Open Box Read Installation Guide Remove Top Cover Remove Optical Drive Bracket Take Off Power Supply Install Motherboard Perform Quality Check Connect Cables Install internal IR receivers (if required) Install Hard Drive Installation Tools Install CPU & Cooler Install DIMM Memory Module Re-Install Power Supply Screw Driver / Screws... - Page 4 Step 2: Connect cables Install motherboard Connect front panel / LCD cables a) Connect Front USB 2.0, IEEE 1394 and Audio Connectors b) Connect PWR Switch c) Connect Card Reader internal USB cable d) Connect LCD cables e) See below table for more details (Reference picture only) Front USB 2.0, IEEE 1394 and Audio Connectors See Motherboard User Manual for location and connection.
- Page 5 USB Diagram IEEE 1394 Diagram Front Audio (AC 97) connection Tips: First, find the MIC and GND pin, connect the MIC & GND connector fist, then, the SR connector must on the Pin 5 & 6, face the same label direction of the MIC & GND connector, plug the SR in, same to the SL on Pin 8 & 9. Plug the white NC single pin connector to Pin 7.
- Page 6 Install Internal MCE Receiver User can convert the external MCE receiver dongle internally by installing the receiver PCB on the MCE Receiver IR Rack that comes with the case. (Right below the power button) Make sure no metal touching to avoid shortage Unscrew the 2 thumb screws and take out the IR receiver rack Take out the MCE external receiver plastic...
- Page 7 Step 5: Install memory module Step 6: Install the power supply Install the power supply Connect power cables a) to hard drive b) to motherbaord 20/24 pin main c) to motherborad 4 pin +12V d) to LCD PWR e) to optical drive Step 7: Install the optical drive LCD Module Set Up LCD will display the CPU &...
-
Page 8: Other Component Installation
White – “Data” or “S/PDIF out” Black - Ground References Technical Support NMEDIA SYSTEM, INC support@nmediapc.com http://www.nmediapc.com/support.htm Safety Instructions Always read the step by step installation to protect your components Keep the user guide for future reference... -
Page 9: Rma Return Policy
• Carefully re-packaging is needed to avoid shipping damages • All warranties are subject to properly uses. Any human power damages return may be rejected according to warranty terms and conditions Copyright © 2006 NMEDIA SYSTEM, INC. All Right Reserved.
