Summary of Contents for Kleenmaid CH805CE
-

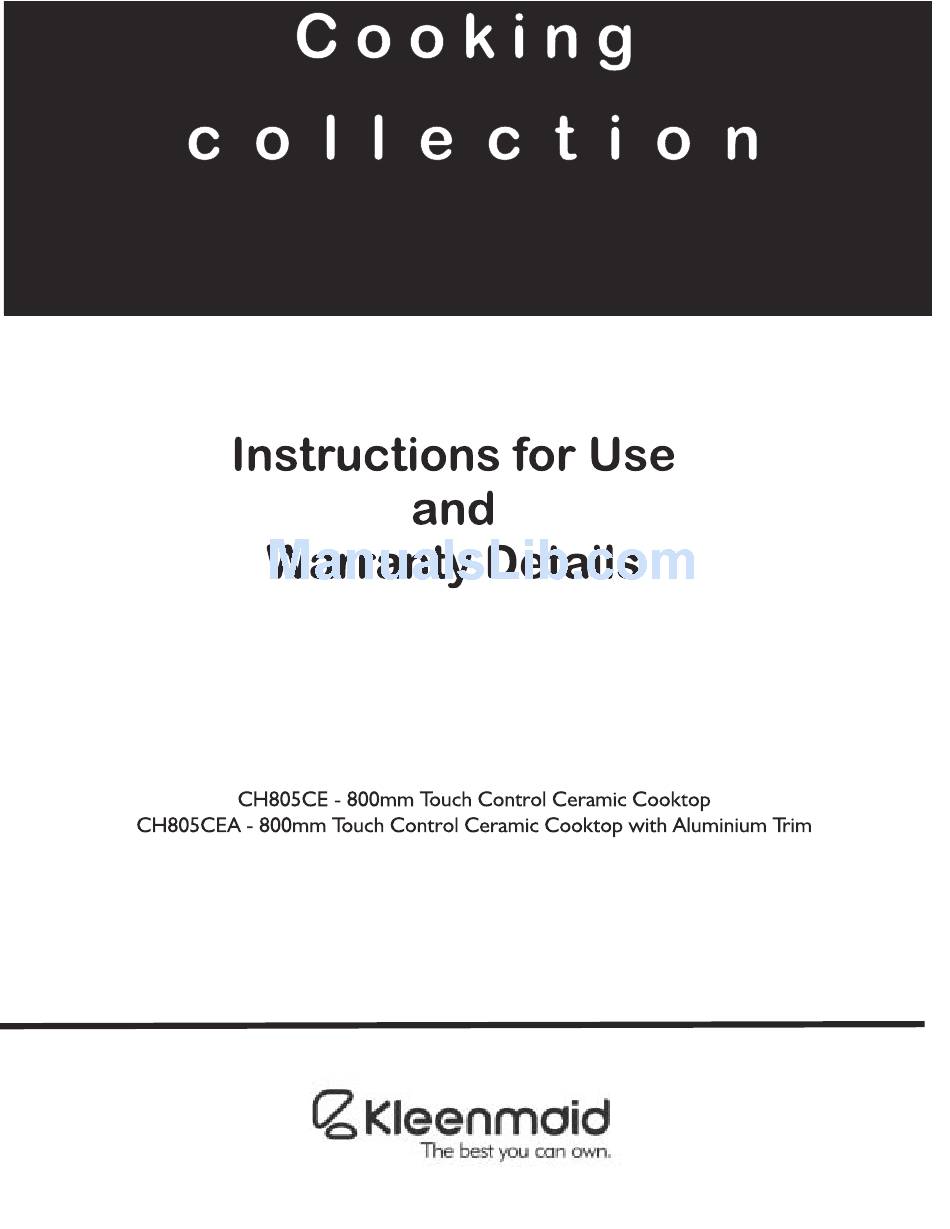

Page 3: Built-In Ceramic-Glass Cooktop
Built-in ceramic-glass cooktop The built-in ceramic-glass cooktop is Instructions for use manufactured for household use only. Instructions for use have been prepared for the Our appliances are packed in environmentally user, and describe the particulars and handling of friendly materials which may be recycled, the appliance. -
Page 4: Important Warnings
• Do not place saucepan lids on the cooktop nearest authorised Kleenmaid Service Agent on 1300 652 100. surface. Extreme pressure can build up while cooling and cause the ceramic top to crack! Warning! The appliance is not intended for •... -
Page 5: Mounting The Built-In Cooktop
Connection may be carried out by means of: Installation diagram − rubber coated connection cables, model H05 RR-F 4x1,5 with yellow-green earthing cable; − PVC insulated connection cables, model H05 VV-F 4x1,5 with yellow-green earthing cable; or any other suitable cables. Mounting the built-in cooktop instructions for installation of the kitchen hood, Caution ! -
Page 6: Ceramic-Glass Cooktop
Ceramic-glass cooktop The ceramic-glass cooktop is equipped with four hotplates designed as cooking zones. The surface of the hob is flat, without any edges for eventual gathering of dirt. • Hotplates quickly reach the selected heating power while the adjacent area around the hotplates remains cool. -
Page 7: Energy Saving Tips
Cookware Use only high quality cookware with flat and firm Energy saving tips base. • Position the pot at the centre of the hotplate • The inside base of the cookware should be during cooking. slightly concave for optimum heat transfer from •... -
Page 8: Glass Ceramic Hob Control Elements
Glass ceramic hob control elements Control panel Extended hotplate ring ON/OFF sensor Second hotplate LED signal lamp (hotplate 2) Second and third hotplate LED signal lamp (hotplate 4) Heating power setting indicator (0...9), remaining heat display "H" and automated cooking signal "•" Timer sensor Timer clock display Timer controlled hotplate... -
Page 9: Switching The Hob On
Control elements Once the glass ceramic hob is connected to the mains (including the power failure), the appliance will adjust itself according to the level of surrounding light in order to provide most efficient sensor function and render the best control environment. - Page 10 Setting of cooking level As long as the indicators are lit the heating power (1...) may be selected and altered accordingly by pressing the (-) or (+) sensor. By the (+) sensor the power is gradually increased to the maximum level (9), while with the (-) sensor it is reduced back to 0 (hotplate is switched off).
- Page 11 Switching the extended hotplate rings on (hotplates 2 and 4) Switch the relevant hotplate ( 2 or 4) and consequently switch the extended hotplate ring by pressing the relevant sensor (see the control element board illustration). The LED signal lamp above the indicator displays the extended ring is on.
- Page 12 Switching the hotplate off Individual hotplates are switched off either by pressing the sensor (-) to bring the heating power to "0", or by simultaneously pressing both the (+) and (-) sensor. Hotplate is switched off automatically after the set timer period elapses. Display indicates "0"...
-
Page 13: Timer Function
Timer function Once the hob is on you have two timer operation alternatives: 1. time countdown without the switch off function 2. setting the timer controlled period of operation for a particular hotplate Timer is activated by pressing the timer sensor, the display indicates "00". - Page 14 Limited time of operation Power setting Maximum operation time in hrs This function is incorporated for safer operation of your hob. Each hotplate is equipped with the time limit switch. The period of operation is calculated in accordance with the last selected power setting of a particular hotplate.
-
Page 15: Cleaning And Maintenance
If the ceramic-glass surface is not Technical information Type CH805CEA (SVK71TS) CH805CE (SVK72TS) 2N AC 400 V Electrical connection Working voltage 230 V, 50 Hz Type of switch Electronic sensors HL = Hi-light cooking zone Cooking zones (φ... -
Page 16: Warranty Registration
Kleenmaid appliance, we guarantee that any fault caused by faulty material or workmanship becoming apparent, will be rectified free of charge for parts and labour, provided that all service is performed during normal working hours by Kleenmaid or their designated Agents.
