APPLICATION
The UL 1310 listed LMPS-350 and LMPS-750 Class 2 power supplies are part of the HEICO lighting
System. Power supplies are fully potted and suitable for use in dry and damp locations. The ac power of the LMPS is
conveyed by electromagnetic induction to the LED array, which eliminates electrical contacts and risks of corrosion.
ELECTRICAL REQUIREMENTS
The LMPS-350 and LMPS-750 are to be powered by 120 volts ac 60Hz electrical circuits. The output is compliant to
Class 2 SELV, as defined in safety standard UL 1310, and is designed to power compatible LED arrays. To connect the LED
arrays to the LMPS, use a 14 AWG UL listed Class 2 electrical conductor approved for the purpose. Every LED array must
be wired in series.
Characteristics
Input Voltage
Maximum Input Current
Output voltage
Output Power
Power Factor
Operating Temperature
Operating Environment
Ingress Protection Rating
Warranty
Weight
Housing
Listings
• • • •
+1.800.665.1166
• • • •
www.heicolighting.com
Table 1: LMPS-350 and LMPS-750 operating specifications
LMPS-350
0.45 A
10 Vac, 16kHz (Class 2 compliant)
35 Watts
Plastic
UL 1310
General power supply
E301099
The LMPS–350 and LMPS-750 shall only be used with HEICO lighting
Failure to comply will void all warranties and UL listing.

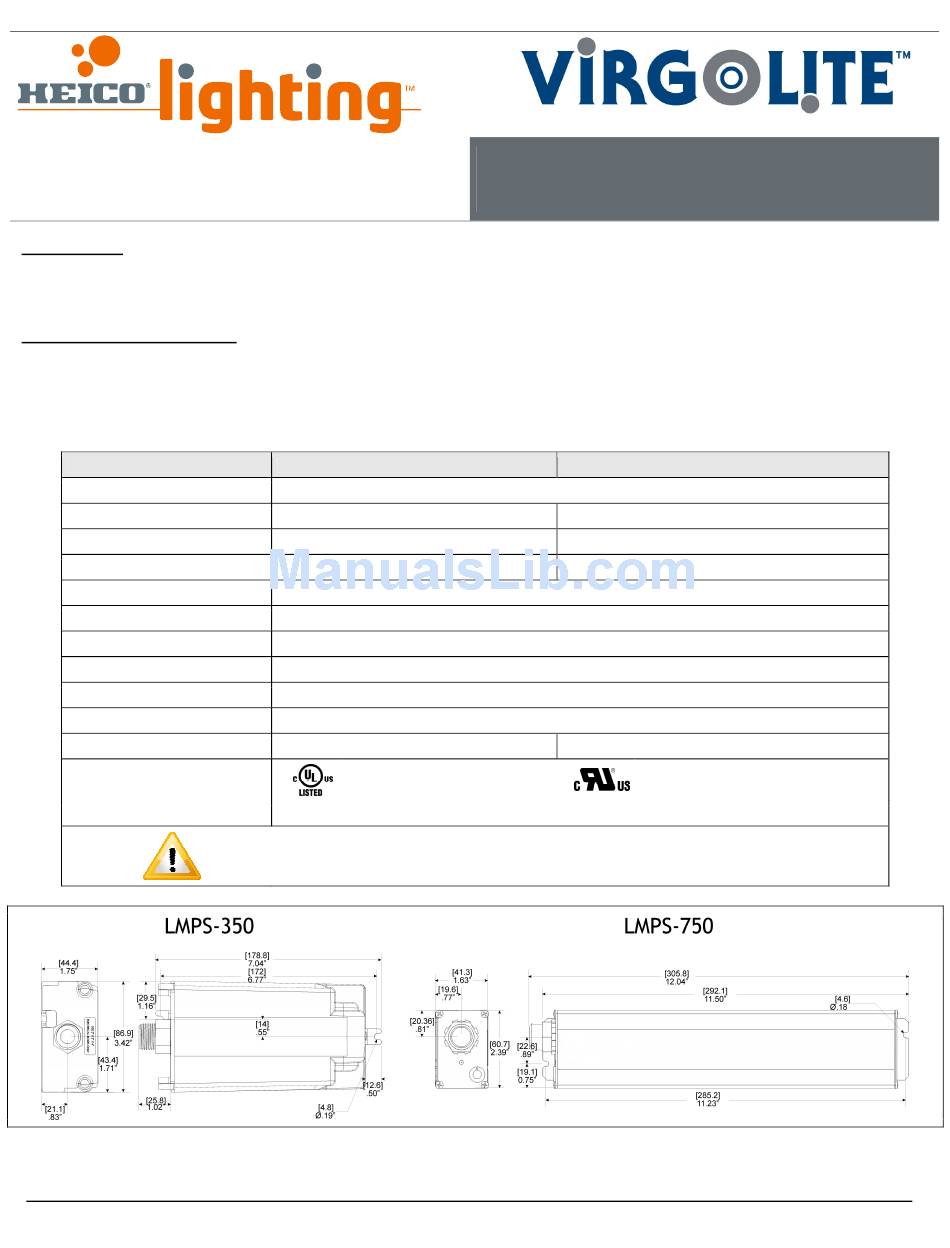

Figure 1: Dimensions
120 Vac ± 10 %, 60 Hz
17 Vac, 16 kHz (Class 2 compliant)
> 90%
-40° F to +122 °F / -40 °C to +50 ° C
Dry and damp locations
IP 67
5 years
1.68 lbs (760 g)
UL 879
Electric sign component
Listed in the UL Sign Accessory Manual (UL SAM)
User Guide
LMPS-350, LMPS-750
TM
Contactless LED
LMPS-750
0.80 A
75 Watts
Aluminium
TM
compatible products.
1/2
