INSTALLATION OF THE COMPLIANT
MANAGER
• Do not twist communication wires (used between indoor unit and outdoor unit and used for central control) and input/
output wires with power wires or bundle them together with power wires in a metal tube. Doing so may cause
malfunction.
• Install the Compliant Manager away from a noise source.
• When noise is induced into the power supply of the Compliant Manager, take proper measures such as attaching of
a noise filter.

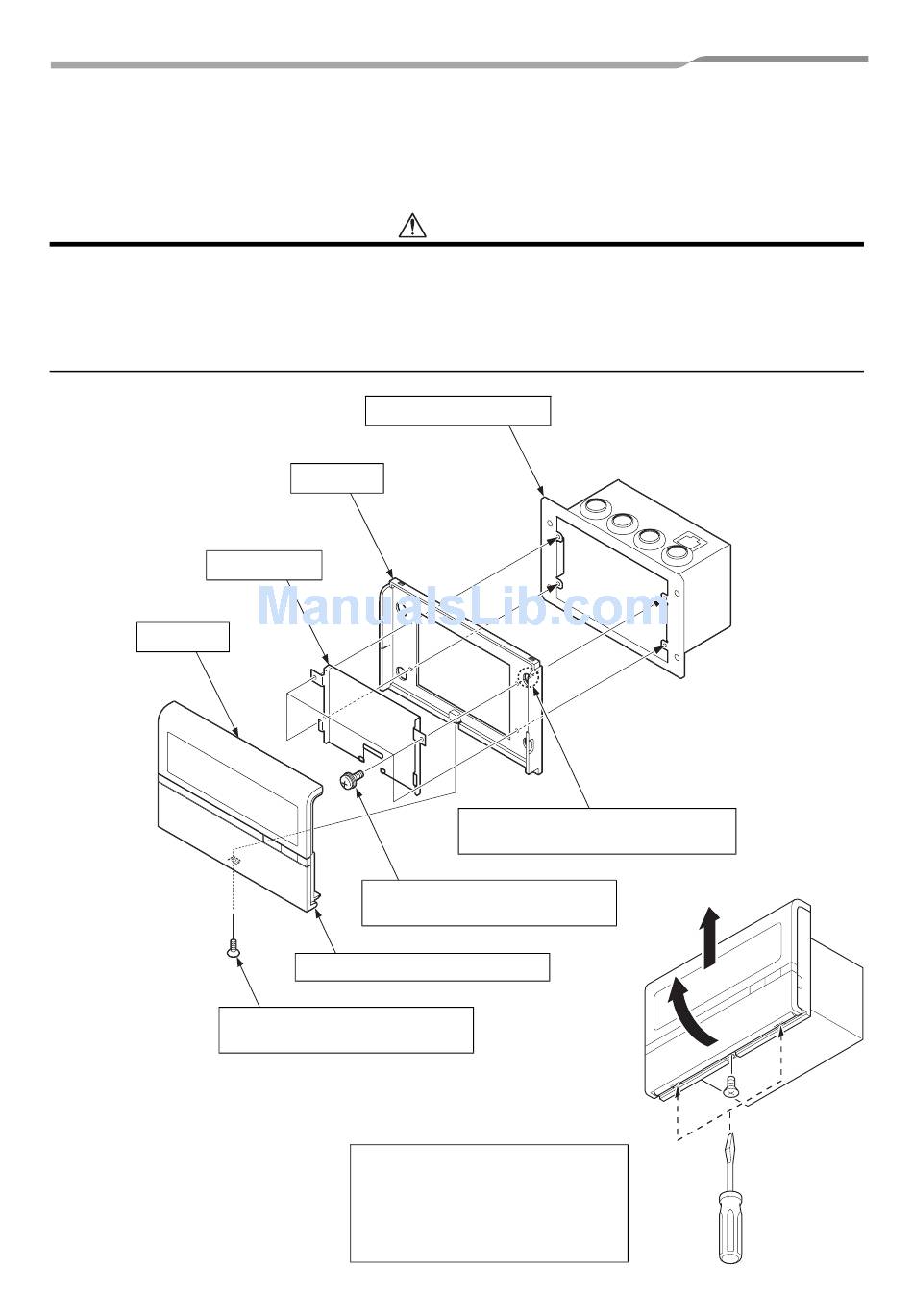

Shield plate
Panel
Power supply box
Base
This screw secures the power
supply box, base, and shield plate.
The panel is secured with the claw.
The panel is secured with the screw
at the bottom.
Remove the screw at the bottom of the
panel, insert a flat-blade screwdriver or
the like into the right and left grooves at
the bottom of the panel, and then
carefully detach the panel with the
screwdriver.
CAUTION
This hole is provided for penetration of
the power supply box fixing screw.
