Summary of Contents for Vxl Itona TC61yy

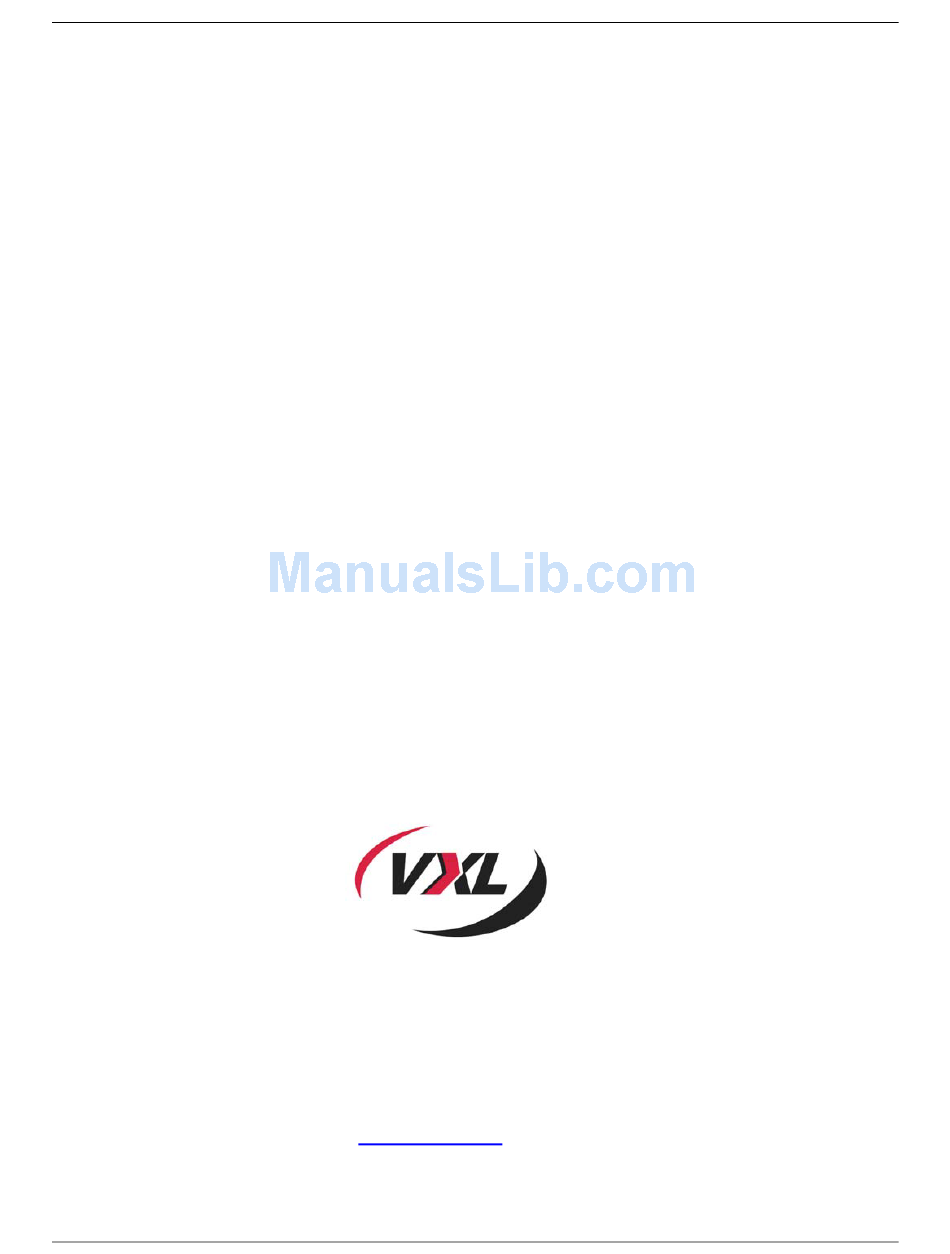

- Page 1 Itona TC61yy Itona TC63yy Hardware User’s Guide VXL Instruments Ltd, No.17, House of Excellence, Electronics City, Hosur Road, Bangalore – 560 100, INDIA www.vxl.net...
- Page 2 Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Copyright and Trademark notices ALL RIGHTS RESERVED. Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of the manufacturer.
- Page 3 Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Federal Communication Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Preface Thank you for purchasing the Itona TC61yy / TC63yy. This guide contains information to setup and use the hardware of Itona TC61yy / TC63yy. The guide consists of the following chapters: •...
-
Page 5: Table Of Contents
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Table of Contents Introduction ............................6 Overview................................6 Installation............................ 7-10 Specifications........................... Hardware ............................Mechanical ..............................11 Environmental Operating..........................12 Electrical ..............................13 Connectors and Cables ........................Connectors ..............................14 COM Port..............................14 Printer Port (Parallel)..........................14 10/100/1000 LAN Port..........................15 Video Port..............................15 Mouse / Keyboard Port..........................15... -
Page 6: Introduction
USB Port Itona TC61YY Itona TC63YY Front View Itona TC61yy / TC63yy deliver smart and robust solutions for Thin Client computing. They are aesthetically and ergonomically designed compact desktop. Itona series thin clients offer fanless CPU solution to enhance reliability. Introduction... - Page 7 Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Introduction...
-
Page 8: Installation
1. The site where you want to install the product must have the following • 100~240V AC, 1.2A, 50/60 Hz, 3-pin power Inlet for client (Itona TC61yy / TC63yy). NSURE THAT THE POWER INLET PLUG IS PROPERLY REGULATED AND EARTHED... - Page 9 250V AC 0.75 sq mm, 18AWG 3C, H05VV-F / SVT / SPT-2, C USE 6A (MIN) / ERTIFIED POWER CORD. Pictures below show the various connectors available on the rear panel of the Itona TC61yy and TC63yy. AUDIO LINE OUT...
-
Page 10: Installation
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide The table below identifies the devices to be used with each connector of the client. Ports Connector Symbol Video port USB ports LINE OUT port Microphone input port PS/2 Keyboard port PS/2 Mouse port... -
Page 11: Specifications
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Specifications Hardware • Processor: Intel Atom N270 1.6 GHz • VGA Memory: Shared Video Memory 64MB min, 128MB max. • HDD 2.5” : SATA HDD 2.5 inch. • Flash : IDE 44 Pin •... - Page 12 Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide PROCEDURE FOR FIXING SINGLE SIDE WALL MOUNTING BRACKET for Itona TC61yy and TC63yy STEPS 1. Wall 2. Drill holes and Insert Wall Plug M7x33, 4no 3. Place Single Side Wall Mounting Bracket 4.
-
Page 13: Environmental Operating
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Environmental Operating • Temperature : C to +40 • Storage temperature: - 20 C to +65 • Humidity: 20% to 80% RH non-condensing Electrical • Line Voltage: 100V to 240V AC (+6, -10%) •... -
Page 14: Connectors And Cables
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Connectors and Cables Connectors The following tables provide pin details for various connectors on the rear panel of the client. COM Port 9-pin D-type male connector. RS232C compatible, operating at 115.2K baud maximum... -
Page 15: 10/100/1000 Lan Port
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide 10/100/1000 LAN Port RJ-45 modular 8-pin jack. 10/100 Mbps Signal TxD+ TxD- RxD+ RxD- Video Port 15-pin D-type female connector Signal Signal Signal Red return GND No Connection Green Green return GND... -
Page 16: Cables
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Cables 10/100/1000 LAN Cable Cross Connection - (Without Hub) RJ45 RJ45 TXD+ 1 3 RXD+ TXD- 2 6 RXD- 1 TXD+ RXD+ 3 RXD- 6 2 TXD- Straight Connection - (With Hub) -
Page 17: Printer Cable
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide 9-pin to 25-pin Straight Connection 9 Pin 25 Pin Connector Connector (Thin Client) Printer Cable The following table shows the pin connections of the Standard Centronics parallel cable. Some manufacturers change pin functions or polarity on their printers. For such printers, custom cables may be necessary. -
Page 18: Troubleshooting
Itona TC61yy/TC63yy VXL Instruments Ltd Hardware User’s Guide Troubleshooting This chapter contains solutions for problems you may encounter while using the product. Problem Solution • Ensure that the power cord is plugged into an AC outlet. The Power-LED on front panel does not glow when Check the fuse in the power-plug, if available.
