Connecting to External Devices

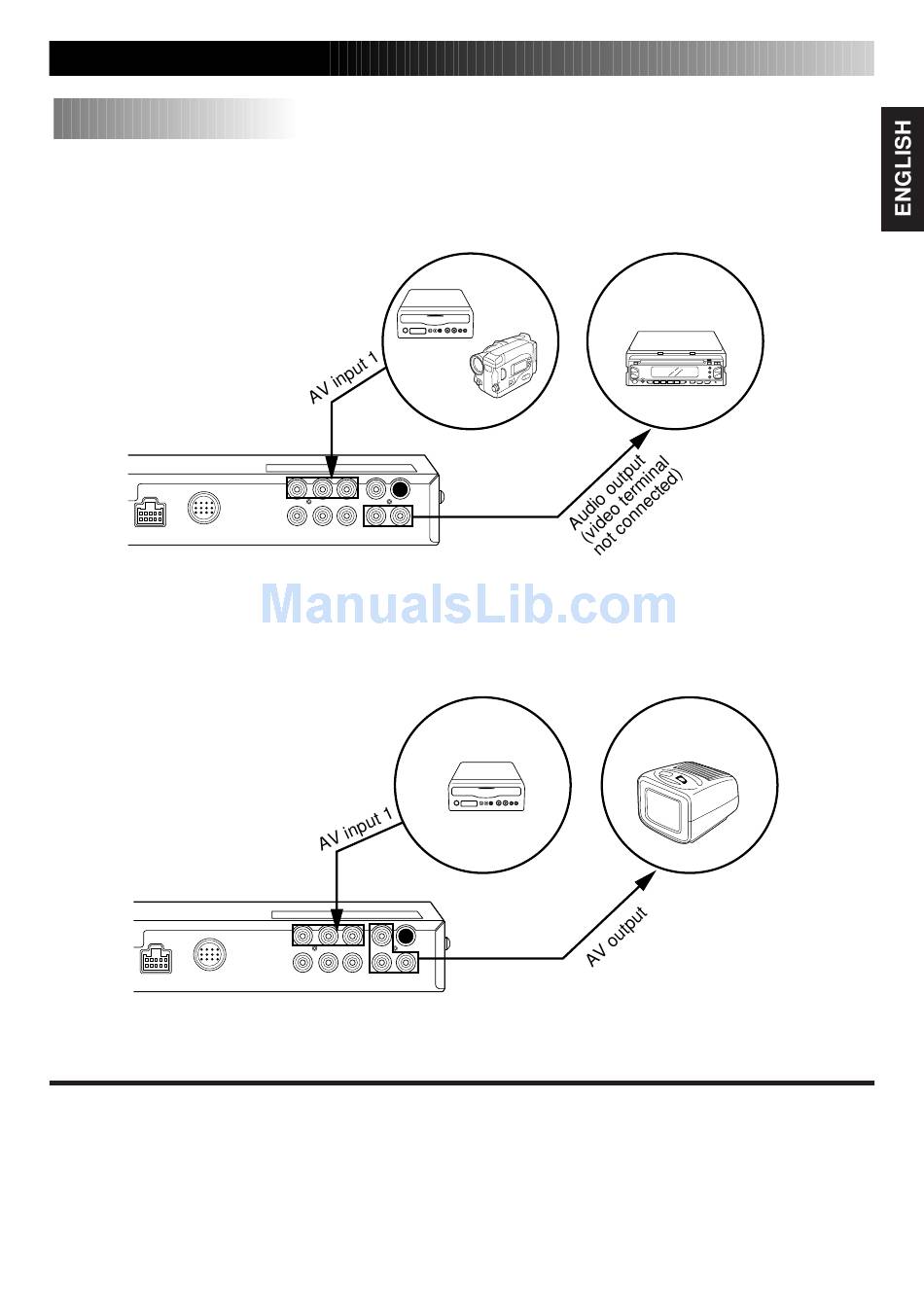

Connection example 1
Mobile video machine or video camera (AV input 1) and car stereo (Audio output)
Tuner unit
DISPLAY UNIT
POWER
Connection example 2
Mobile video machine (AV input 1) and 2nd monitor (AV output)
Tuner unit
DISPLAY UNIT
POWER
Note
• Refer to the installation manual for an explanation of how to make these connections.
• Since the connection cord varies depending on what external devices are connected, refer to the
video equipment manual as well.
• For connection of a mobile video machine or video camera:
When howling (a "pi" sound) occurs, take one of the following steps.
· Lower the volume on the TV tuner system
· Use earphones (when the camera has an earphone jack)
· Keep the tuner system and the camera microphone apart.
AV INPUT 1
L-AUDIO-R
VIDEO
VIDEO
VIDEO
L-AUDIO-R
L-AUDIO-R
AV INPUT 2
AV INPUT 1
VIDEO
L-AUDIO-R
VIDEO
VIDEO
L-AUDIO-R
L-AUDIO-R
AV INPUT 2
AV
OUTPUT
AV
OUTPUT
To car stereo
To 2nd monitor
27
