Vision Technology The View CCTV Owner's Manual

Portable video magnification system
Hide thumbs
Table of Contents

Advertisement

Quick Links

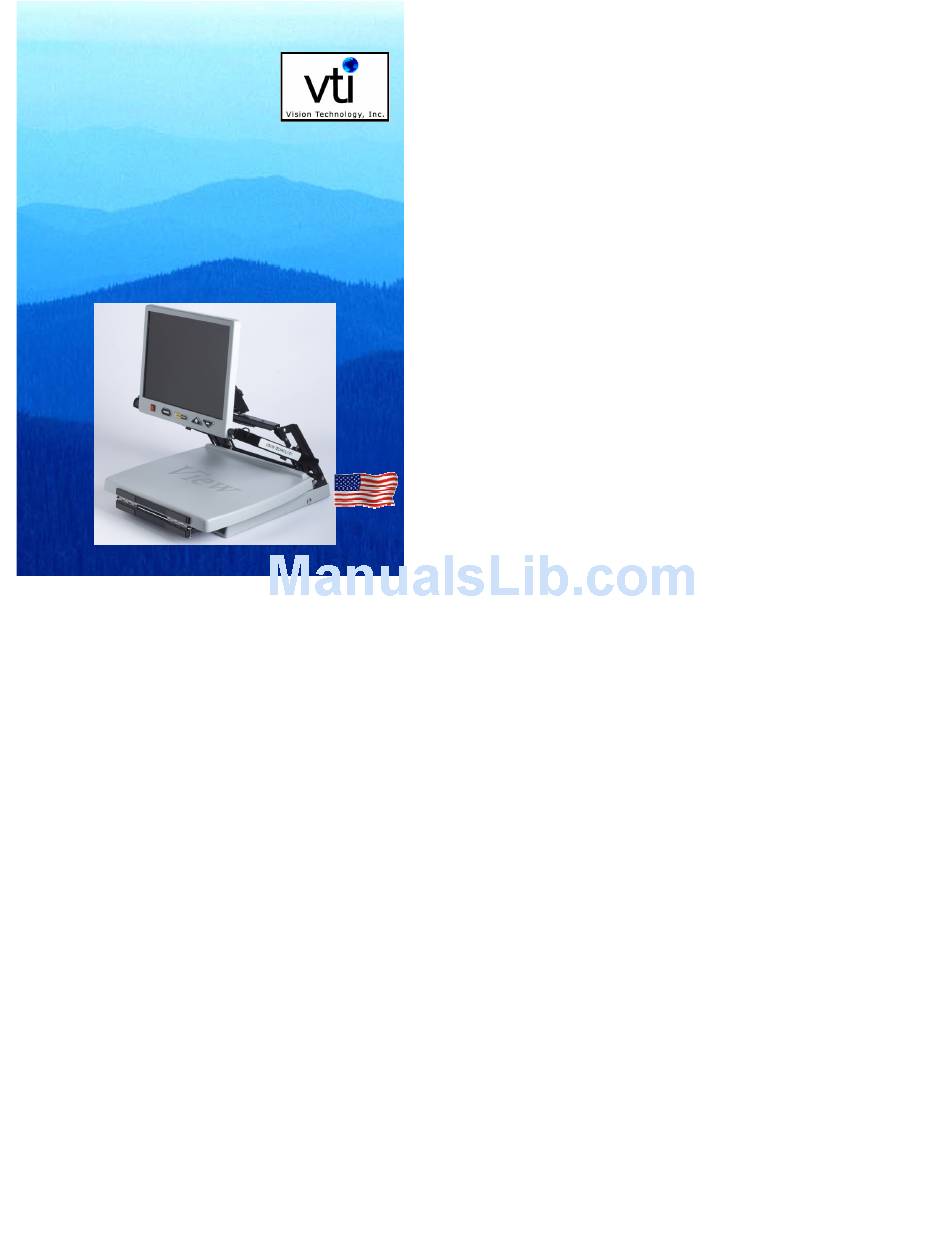

View
The
CCTV
TM
Owners Manual &
Set-up Instructions
Made in the USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The View CCTV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vision Technology The View CCTV

Summary of Contents for Vision Technology The View CCTV

  • Page 1: Owners Manual

    View CCTV Owners Manual & Set-up Instructions Made in the USA...

  • Page 2: Table Of Contents

    TABLE of CONTENTS Important Information Introduction Unpacking Set-up 5-12 Close Down 13-15 Operating Controls Diagram Description of Controls 16-17 Operating your View Care and Maintenance Warranty & Service Informa- tion...

  • Page 3: Important Information

    Caution: Do not remove the cover on the monitor or camera. There are no user serviceable parts inside. Any changes or modifications not expressly approved or performed by Vision Technology, Inc. could void the user’s warranty. Record the Serial number and date pur- chased: Model vt 3315...

  • Page 4: Introduction

    Introduction Although your new system is very simple to use, it is very important that you read the instructions in this guide very carefully. This step by step manual is arranged in the way we anticipate you will operate your new system.

  • Page 5: Set-Up

    Checklist _____ VIEW Video Magnification System _____ Power Supply (yellow plug) _____ Packaging material _____ Owner’s Manual _____ Product Registration Card Optional Accessories purchased may include: _____ Lithium Battery _____ Charger for Battery (black plug) _____ Soft Sided Carrying Case Set-up Place the CCTV base on a sturdy work surface, such as a desk or table.
  • Page 6 Opening the View 1. Set the View on a flat surface. 2. Grasp the back of the table top with the paper stop raised edge and pull up and out. The table top is held in place with 2 locking clips shown below.
  • Page 7 View Folded Flat Unclip the table Lift up...
  • Page 8 Raise the table top to its fullest upright position as shown below. 4. Grasp the top of the monitor and lift up as shown below. Lift here...
  • Page 9 5. Reach in with one hand and pull the cam- era up 2-3 inches to release the components. 6. Raise the monitor & camera will rise. Lift up camera Raising the monitor also raises the camera...
  • Page 10 7. Support the monitor up with one hand and turn the camera 180 degrees clockwise so the U-bar is angled away from the monitor. 8. Push up on the camera moving it towards the monitor with a gentle motion until the camera clicks into place.
  • Page 11 9. Slide the tabletop out away from the base until there is room to fold it down. 10. Click into place by pressing down onto the clips. Slide tray out Lock onto clips...
  • Page 12 Adjust monitor to desired height Turn camera 180 degrees back to x-y table viewing position, flip up for distance views...

  • Page 13: Close Down

    Closing the View Turn off power and unplug. Lift and support the monitor in its highest position. 2. Slide the tabletop out away from the base. Unclip the top by pulling out on the back of the ta- ble. 3. Lift table top and slide the black portion back into the base.
  • Page 14 4. With the camera in the x-y viewing posi- tion support the monitor and pull back on the u-bar & camera to release it from the locked position. Slowly let it collapse into position. The camera will lower first. Unlock camera bar Hold top of monitor &...
  • Page 15 5. Make sure the wires are tucked in be- tween the two table clips. Fold down the monitor and table top. 6. Press firmly on the back of the table top to lock the table into position. Place in carry case for safety. Press down onto clips to lock in place...

  • Page 16: Operating Controls Diagram

    Operating Controls/Features On\Off: The Red ON\OFF switch is located on the left portion of the front control panel. To turn on monitor, press the on\off button on the front of the monitor. Select Mode: (Button to the right of the power button) 1.
  • Page 17 Operating Controls/Features NTSC “Video Out” Port (located on the left rear side of the base) Connect a standard “NTSC” RCA cable to this port & video receiver (ie: LCD projector or TV screen) Quiet Mode An audible tone is sounded when you press a control button.

  • Page 18: Operating Your View

    Operating your View The monitor on “The VIEW ” raises and lowers from table height up to 14 1/2” when locked into place. Distant Viewing The camera on “The VIEW ” is movable. To change camera view, grasp camera and rotate it to view desired object.

  • Page 19: Care And Maintenance

    7226 and ask for Technical Support. Do not attempt to open the machine parts. Doing so will void the warranty. When returning for service ship insured for purchased price to: Attn RA# (CALL 1-800-560-7226 TO OBTAIN) Vision Technology, Inc. 8501 Delport Drive St. Louis, Mo 63114...
  • Page 20 Vision Technology Inc. Client Care Technical Support is available at 1-800-560-7226 M-F 8:00 - 4:30 (CST)

This manual is also suitable for:

The view vt 3315
