Hammond XPK-200 Owner's Manual

20-note midi pedalboard
Hide thumbs Also See for XPK-200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Model
Thank you, and congratulations on your choice of a
Hammond XPK-200.
The XPK-200 is a 20-note MIDI Pedalboard.
In order to get the most out of this instrument for many
years to come, please take the time to read this manual in
full.
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPK-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hammond XPK-200

Summary of Contents for Hammond XPK-200

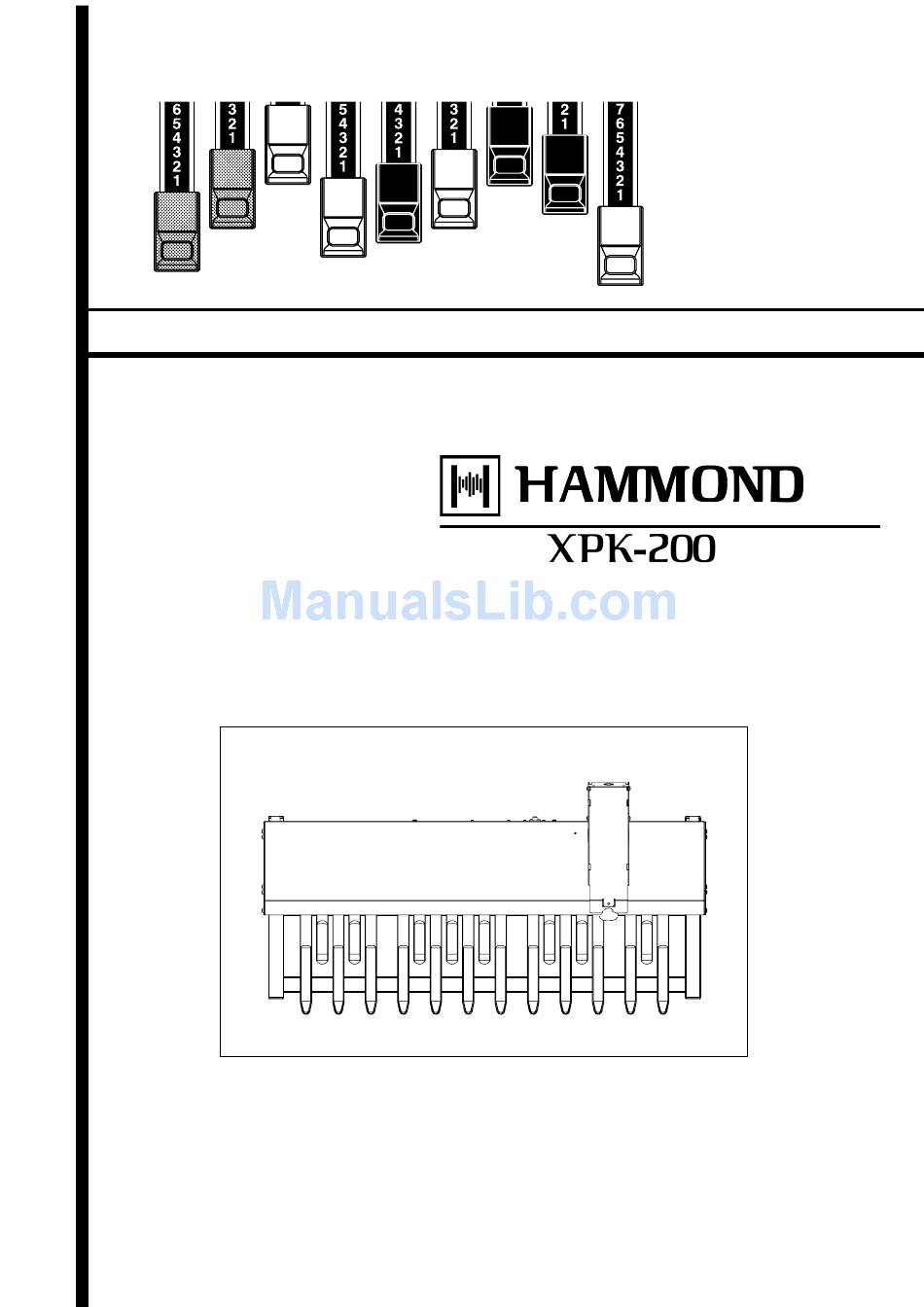

  • Page 1 Thank you, and congratulations on your choice of a Hammond XPK-200. The XPK-200 is a 20-note MIDI Pedalboard. In order to get the most out of this instrument for many years to come, please take the time to read this manual in full.

  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE Before using this unit, please carefully read these “Safety Instructions”. Please be sure to keep this manual at hand for future reference. This “Safety Instruction” section contains very important points for securing your safety. This sign shows there is a risk of death or severe injury if this unit is not properly used WARNING as instructed.
  • Page 3 This sign shows that there is a risk of injury or material damage if this unit is not CAUTION properly used as instructed. *Material damage here means damage to the room, furniture or animals or pets. Keep Away from Extreme Heat: Care: Do not use, leave or store this unit in an automobile If the exterior becomes dirty, wipe it with a clean,...

  • Page 4: Names And Functions

    NAMES AND FUNCTIONS Pedal keyboard MIDI IN 2 Jack 20-note non-velocity pedal keyboard. This is also a MIDI input Jack. MIDI signals received at this Expression Bracket 1 input will be merged with the playing information from MIDI This bracket is a base for mounting the optional Expression IN 1 and the playing information of the Pedalboard and sent Pedal EXP-100F or V-20R.
  • Page 5 Mounting the V-20R By use of a #2 Phillips screwdriver, temporarily remove the Place the Expression Bracket 1 on top of the XPK-200 as screw as shown from the bottom of the EXP-100F. Place the shown. Fasten the Bracket to the XPK-200 by turning clock- EXP-100F on top of the Expression Bracket 1.
  • Page 6 HOOK-UP An example of the Hook-up of the XE-1 and XLK-1 Connect the MIDI OUT of the XLK-1 to the MIDI IN 1 of this unit by means of a MIDI cable. Connect the MIDI OUT of this unit to the MIDI IN 1 of the XE-1 by means of a MIDI cable. Connect the DC IN of this unit to the DC OUT of the XE-1 using the DCC-2 cable attached to the XLK-1.
  • Page 7 A Hook-up example of the XK-3 and the XLK-3 Connect the MIDI OUT on this unit to the MIDI IN (PEDAL) of the XK-3 by means of a MIDI cable. Connect the AC adaptor AD1-1508/AD3-1508 to the DC IN on this unit. The power on this unit is not turned “On”...
  • Page 8 SETTING A setting example of the XE-1 Switch ON the power of The PLAY mode is displayed on the LCD. the XE-1. Select SINGLE or DOUBLE according to the number of manuals Touch the [MIDI] button. that you are using. This completes the setting.
  • Page 9 A setting example of the XK-3 Switch ON the power of PLAY mode is displayed on the LCD. the XK-3. The light on the XLK-3 will also be turned ON when the XLK-3 is connected. Touch the [PAGE] button and move to Page D. Touch the [MENU/EXIT] button.

  • Page 10: Midi Channel, Merge

    MIDI CHANNEL, MERGE Setting the MIDI channel The factory default setting for the Pedalboard is channel 3. If you want to change it follow the procedure below: Start with the power turned off. Turn on the power while holding down the highest G pedal and the pedal correspond- ing with the MIDI channel.

  • Page 11: Midi Implementation

    MIDI IMPLEMENTATION Date: 4-Apr-2006 [Hammond MIDI Pedalboard] MIDI Implementation Chart Version: 1.0 Model: XPK-200 Function Transmitted Recognized Remarks Default Basic Channel Changed 1 - 16 Default Mode Messages Altered ***** Note 36 - 55 Number : True Voice ***** Note ON...

  • Page 12: Specifications
