SUNTEC LRC2000 Operating Instructions

Sunt ec

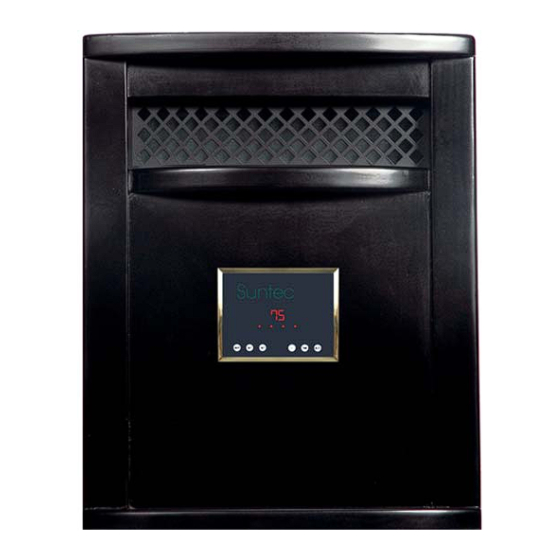

Infrared Heater
LRC 2000
The LRC 2000 series is Suntec's top of the line infrared
heater and comes with a remote control. The Infrared
technology we use in the LRC 2000 produces warm air
that blends with the air in your rooms. This recirculation
produces a warm environment at a very economical cost.
Operation is very simple, just position the heater about 6 inches
from a wall and plug it in. On front panel of the heater you will
notice a control panel. It controls the operation of the heater.
®
On/Off Button
HEAT
same as "By Pass" on controller
Press to bypass the thermostat.
The heater will stay on until you
press the Heat button again or
turn off the heater with the power
switch.
+
Press to raise the thermostat
_
Press to lower the thermostat
TEMP
Press once to enter set thermostat mode
then press the ---- or + to set thermostat
temperature.
TIME
Press to set, in 1 hour increments, a shut
off time. You can cycle through to get
back to 0. This feature must be reset to
0 when used for normal operation. If the
time as been set it will continue to turn
off at the indicated hour.
Thermostat
Thermostat Display
The fi rst time you set
the thermostat the
display will show a higher
than ambient tempera-
ture. This is the default.
Press the --- button to
bring down the tempera-
ture to the degrees(F) that
you want the thermostat
to maintain. The termo-
stat is designed to operate
in a + or -- range of 3
degrees. You can set the
thermostat to maintain
any temperature within 3
degrees.

Remote Controller

By Pass
same as "HEAT" on panel
Press to bypass the thermostat.
The heater will stay on until you
press the Heat button or turn off
the heater with the power switch.
You can use the remote controller to turn the heater on
and off, set the timer, temperature and bypass the ther-
mostat. See the remote control panel for details.
IMPORTANT ..... READ THIS
The fi rst time you turn on the heater it may not start . If this happens
the ambient temperature in the room my be higher then the default
temperature setting in the heater thermostat. PRESS the Temp then
the + button until the temperature reading on the front panel is set
to above the ambient room temperature, the heater will come on.
The thermostat is designed to maintain the room temperature
within 3 degrees. This means the heater will turn off when the
temperature you set the thermostat for is reached and will turn on
when the temperature drops 2-3 degrees.
The temperature displayed on the heater thermostat will vary from
the temperature displayed on the main house furnace. This is due to
the difference in the temperature of the air at the main house and
Suntec heater thermostats. The air around the Suntec thermostat
will be of a higher temperature in most cases than the air around
the main house thermostat. This is because the main system is off
and the Suntec is warming and re-circulating the air. There could be
a difference of as much as 10 degrees.This is normal and refl ects
the accuracy and the effi ciency of Suntec.
Questions call 1-888-499-8120
10 AM to 6 PM EST
