Operating instructions
Unloading instructions
Warning!
When the machine is loaded the
freewheel lever must generally be
engaged in its bottom position. Only
then are the drive system and the
parking brake operable.
— The machine was secured on a
pallet with stretch belts or ropes
for safe transport. Proceed as
follows when unloading:
! Cut the plastic packing tape and
remove the film.
! Connect battery (see
maintenance work chapter)
! Remove the blocks for securing
the wheels and drive the machine
off the pallet using a suitable
ramp.
Warning!
Do not use a fork lifter for unloading;
the machine can be damaged by it.
KM 100/100 R B / KM 100/100 R LPG

Before every operation

General notes
! Stand sweeper on a flat surface
! Remove the ignition key
Testing and maintenance
work
! Check engine oil level *
! Check fuel tank level * (applies
only to KM 100/100 R B)
! Check that the union nut at the
gas hose is firmly in place
(applies only to KM 100/100 R LPG)
! Check level of hydraulic oil *
! Check side brushes *
! Check main brush *
! Empty the swept material
container
! Check tyre inflation pressure *
* See maintenance work chapter for
instructions
Commissioning
Warning!
It is not permissible to cover the air
suction openings behind the driver's
seat.
It is not permissible to deposit
objects next to or behind the seat.
Suction openings

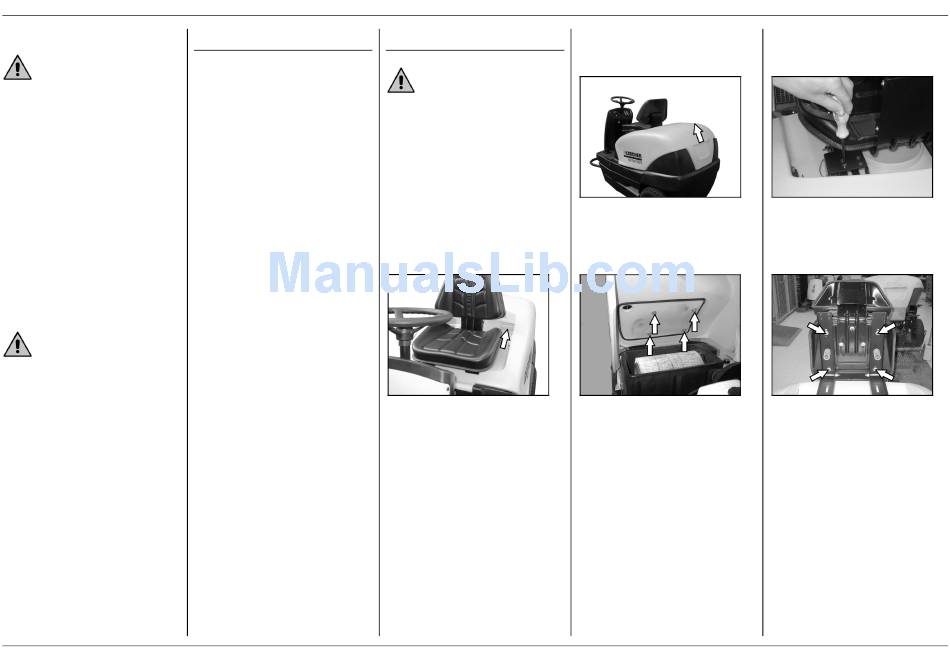

Adjust driver seat

! Open unit cover, engage stay bar
! Slightly loosen wing nuts of seat
runners
! Push the seat into the
appropriate position
! Retighten wing nuts
Note:
There is a further adjustment
possibility if the adjusting range is
insufficient
English
! Unscrew the 4 screws at the seat
contact switch plate
! Remove the plate
! Turn the seat forward
! Unscrew the 4 screws of the seat
mounting
! Shift seat and refasten with
screws
! Remount seat contact switch
plate
28
