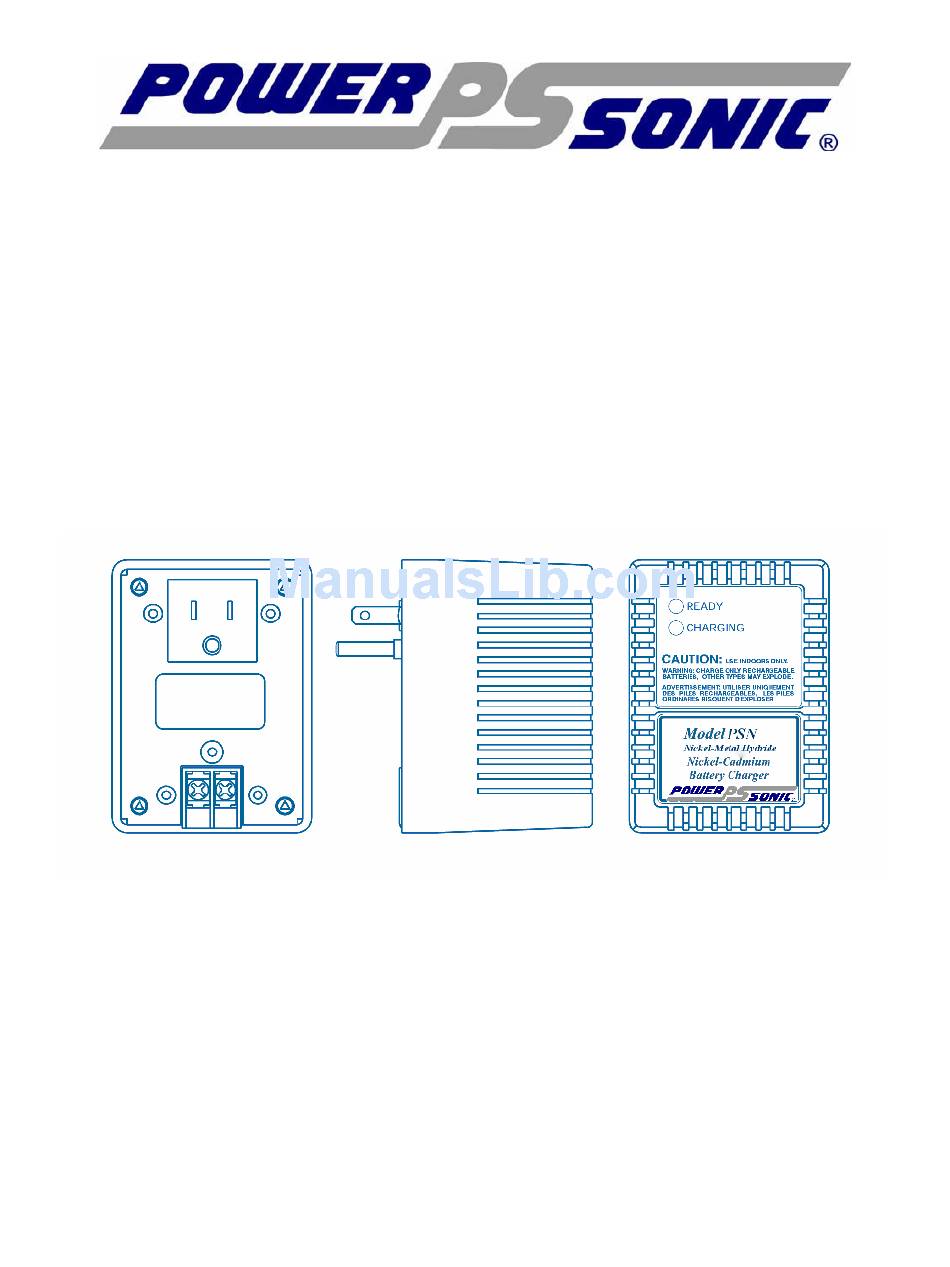

Battery Charger
Rechargeable Batteries
Model PSN Series
Operating Instructions
CAUTION: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE UNIT TO RAIN
OR MOISTURE.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Power-Sonic PSN Series
Summary of Contents for Power-Sonic PSN Series
-
Page 1: Battery Charger
Battery Charger For Nickel Cadmium and Nickel-Metal Hydride Rechargeable Batteries Model PSN Series Operating Instructions WARNING CONCERNING THE REMOVAL OF COVER: CAUTION: TO PREVENT THE RISK OF CAUTION: TO PREVENT FIRE OR SHOCK ELECTRIC SHOCK, DO NOT REMOVE HAZARD, DO NOT EXPOSE UNIT TO RAIN COVER. - Page 2 PSN BATTERY CHARGERS IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS - This document contains important safety and operating instructions for Model PSN battery chargers. Before using the battery charger, please read all instructions and cautionary markings on the battery charger, the battery, and the product using the battery.
- Page 3 GENERAL DESCRIPTION This unit is a two stage, constant current battery charger for charging nickel cadmium type rechargeable batteries. The charge termination is by timer (13 to 15 hours standard) at which time it will switch from the charge current into a float charge mode at a reduced current.
- Page 4 CHARGING light will darken and the green READY light will come on. At this point the battery is fully charged. When the charger is in the float charge mode a constant current (1/4 that of the rated output current) is delivered to the battery to keep it fully charged. Most nickel cadmium batteries may be left connected to the charger in the READY (float) mode, indefinitely, without a danger of overcharging.
- Page 5 CHARGER STARTS UP IN READY MODE -If the charger READY light comes on when you first attach the battery (or in less than 13 hours) then the battery is probably more than 14.4 volts (12 cells). The charger resets into float mode when it detects a voltage over 21 volts.
