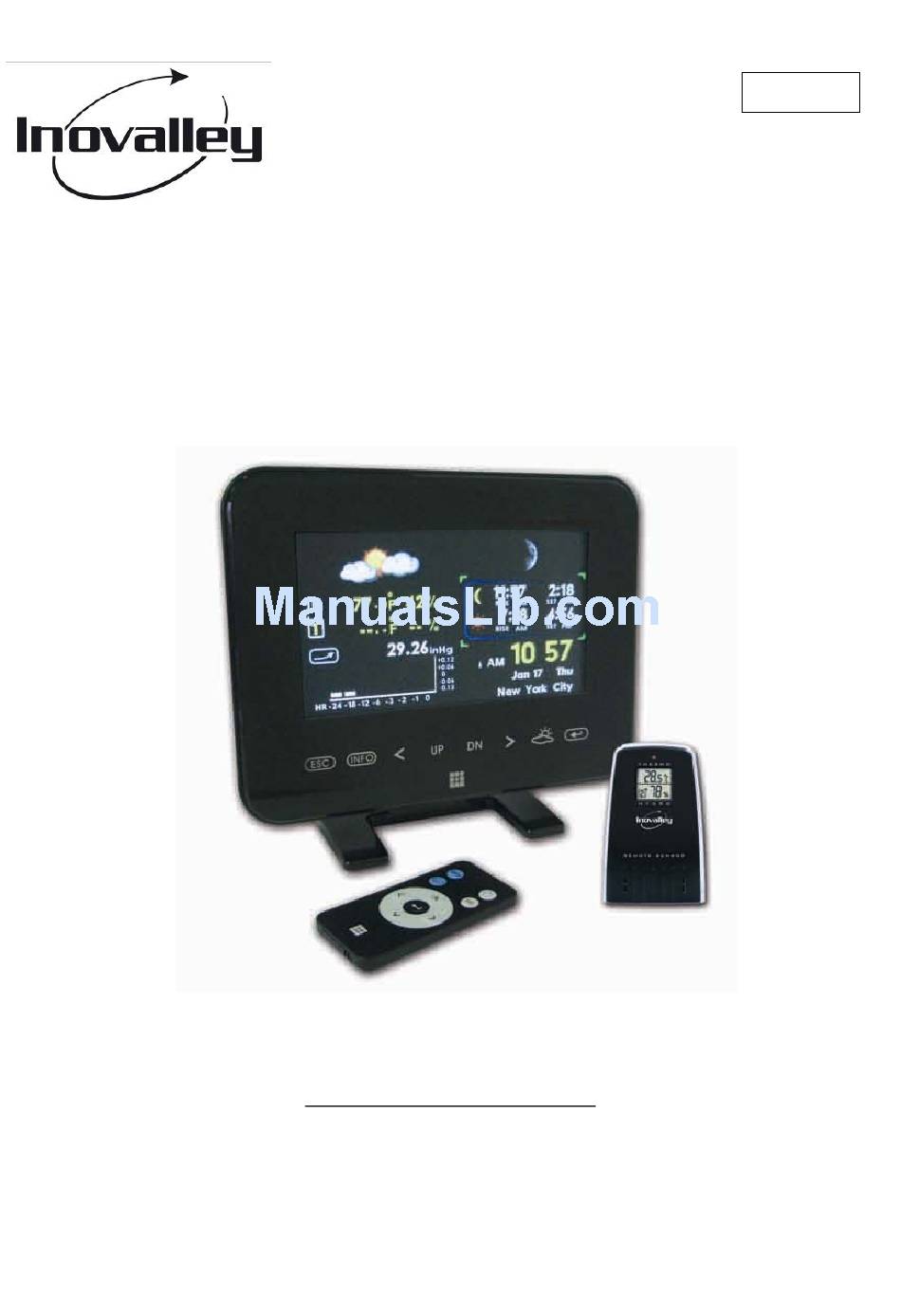

Page 1: Digital Photo Frame
English DIGITAL PHOTO FRAME & COLOR WEATHER STATION Ref.: CPN03N - INSTRUCTION MANUAL -... - Page 2 INSTRUCTION MANUAL Congratulations on your of purchasing this new color Weather Station. This unique product is designed for everyday use for the home or office and is a definite asset of great use. To fully benefit from all the features and understand the correct operation of this product, please read this instruction manual thoroughly.
-
Page 3: Ir Remote Control Unit
3. [Info] short cut button Press this key to go straight into the Information Board screen 4. [<] button Navigation button for left-direction 5. [/\] button Navigation button for up-direction 6. [\/] button Navigation button for down-direction 7. [>] button Navigation button for right-direction 8. - Page 4 Description of Buttons 1. [ESC] button Press this ESCAPE button to go back to the previous screen 2. [INFO] short cut button Press to go straight into the Information Board screen 3. [<] button Navigation button for left-direction 4. [/\] button Navigation button for up-direction 5.
-
Page 5: Getting Started
If the user press [CH] button once during the channel setting, the LED will blink twice every 1.6 seconds to indicate the unit is set to channel 2. If the user press [CH] button again, the channel number will be advanced to channel 3 and the will blink 3 times and so on. -
Page 6: Welcome Screen
• Remove the battery door cover on the rear side of the frame unit; • Insert x3 AAA size 1.5V alkaline battery as indicate by the polarity; • Close the battery door. Note: The batteries must be replaced when the low battery indicator LED is illuminated. Otherwise, the clock time in the picture frame is no longer accurate. - Page 7 3. INFO BOARD ICON The Information Board Icon is located at the upper left hand corner of the Main Menu. Once the icon has been highlighted (see the above image) press the [ ] button to confirm your selection. There are five different sections to the Information Board main screen; Weather Report, Temperature &...
- Page 8 Hit the [Esc] button to exit the Weather Report screen and return to the Information Board main screen. Hitting the [Esc] button again will bring you back to the main menu. Note: You can use the [ ] shortcut button on the remote to directly access the weather screen.
- Page 9 By using the “/\” or “\/” arrows you can scroll between the indoor and outdoor readings. By using the “<” or “>” arrows you can show past hours data that have been recorded up to 24 hours. Hit the [Esc ] button to exit the Temperature & Humidity screen and return to the Information Board main screen.
- Page 10 Once this area is highlighted hit the [ ] button to confirm the selection. You are then taken to a screen similar to the below image. The current date will be displayed on the screen along with the current phase of the moon. By using “/\”...
- Page 11 The screen displays the both the Sun-Moon rising and setting times for the current date. You are able to change the date to another desired date by using the arrows (see previous section on Moon Phase). Hit the [Esc] button to exit the Sun-Moon Rise/Set Times screen and return to the Information Board main screen.
- Page 12 4.4 Changing the time The time can only be adjusted from the Settings Menu. Please refer to the time setting description on the setting menu. 5. PHOTO The Photo icon is located on the lower left hand corner of the Main Menu. Once the icon has been highlighted (see the above image) press the [ ] button to confirm your selection.
- Page 13 6. SETTING The Setting icon is located on the lower right hand corner of the Main Menu. Once the icon has been highlighted (see the above image) press the [ ] button to confirm your selection. You are then taken to a screen similar to the below image. There are 12 different sections in the Settings main screen.
- Page 14 arrows to change the month setting; • Press [>] button to highlight the DATE digits; toggle “/\” or “\/” arrows to change the day setting; • Press [>] button key to highlight the YEAR digits; Toggle “/\” or “\/” arrows to change the year setting;...
- Page 15 • The Frame will be turned off itself 10 minutes for radio controlled clock reception. During these 10 minutes, both the screen and the touch-Lit key board will be off. This is normal; the frame will wakeup automatically after reception is complete. Auto RCC Reception Daily Reception The Viewer undergoes RCC reception at 3:00am, 4:00am, 5:00am and 6:00am everyday.
- Page 16 6.10 How to change the setting for CITY • Use the “/\” or “\/” arrows to navigate the yellow highlight to the ‘CITY’; • Toggle “/\” or “\/” arrows to change the CITY setting • Press [ ] button to confirm. 6.11 How to INSTALL REMOTE SENSOR •...
- Page 17 7. PC connection The CPN03 can be connected to a computer to act as a card reader for file transfer from a memory card onto your computer’s hard drive. Windows® Vista™/XP/XP Pro/2000 SP3 Users No drivers are needed for Windows Vista, XP, XP Pro, Windows 2000 SP3. Your computer will recognize the FWA921 upon connection of the USB cable.
-
Page 18: Specifications
8. SPECIFICATIONS Model CPN03 Product Name Colour Weather Station with Photo Viewer Function-Features Main Display 7-inch Analogue TFT Touch Panel 8-key Photo Still Picture JPEG Slide Show Single Full Screen Slide Show Duration adjustable in seconds Internal Memory Internal Memory 128MB SD, MMC, MS ,*MS (PRO) Duo Support Memory Card... - Page 19 Power supply Main power AC-DC adaptor 110-220V / 12V1.5A Secondary power x3 pcs “AAA” alkaline battery (not included) Wireless transmission Frequency 868 MHz No. of Channel Transmission range 30 meters /100 feet (open range) Accessory AC-DC power adaptor X1 pc IR remote controlled X1 pc Remote thermo-hygro...
