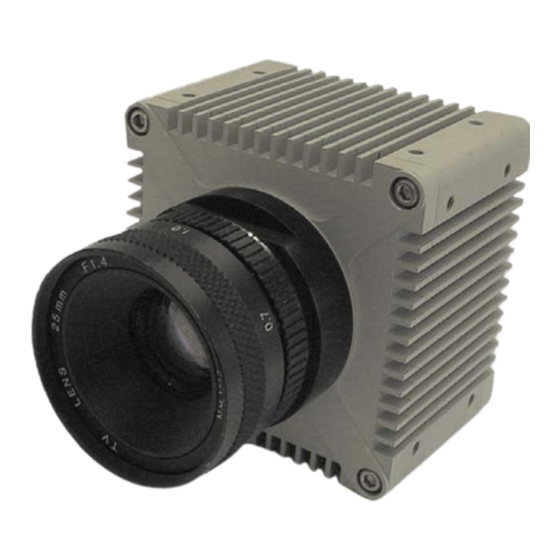

C4-1280-GigE Camera
Hardware Reference
Manual
Rev 1.4
Automation Technology GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4-1280-GigE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Automation Technology C4-1280-GigE

  • Page 1 C4-1280-GigE Camera Hardware Reference Manual Rev 1.4 Automation Technology GmbH...
  • Page 3: Table Of Contents

    Geometry 1 ..................3 Geometry 2 ..................3 Geometry 3 ..................4 Geometry 4 ..................4 The C4-1280-GigE Camera General Specifications ......... 5 Mechanical Drawings ................. 6 The C4-1280-GigE Camera Sensor Specifications..........7 C4-1280-GigE Camera Operational Reference C4-1280-GigE Camera GenICam Features............. 8 Device Information ................
  • Page 4 Integrated RS232 serial interface and Camera Boot Log....... 26 The External C4 I/O Panel................27 Service Information Document Revision ..................28 Product Information and Updates ..............28 Warranty Conditions ..................29 iv • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 5 Neither is any liability assumed for damages resulting from the use of the information contained herein. No license is granted under any patents or patent right of AT – Automation Technology GmbH. Trademarks All nationally and internationally recognized trademarks and trade names are hereby acknowledged.
  • Page 6: C4 Camera Series Overview

    The figures below demonstrate some typical triangulation geometries. The following notation is used in the approximation of height resolution: ∆X= resolution along the laser line (lateral), ∆Y= resolution perpendicular to the laser line (longitudinal in the direction of motion), ∆Z= height resolution. 2 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 7: Geometry 1

    The camera views the object perpendicularly to its surface, while the laser line is projected under the triangulation angle α. The height resolution can be approximated: ∆Z ≈ ∆X / tan(α) α • 3 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 8: Geometry 3

    The camera views the object under an angle α, while the laser line is projected under a different angle β at the camera side. The height resolution can be approximated: ∆Z ≈ ∆X * cos(β) / sin(α - β), β α 4 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 9: The C4-1280-Gige Camera General Specifications

    Bajonett mount (must be ordered separately) Mechanical Interface Camera Size 68 mm x 68 mm x 59 mm (with C-Mount adapter) 68 mm x 68 mm x 88 mm (with F-Mount adapter) • 5 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 10: Mechanical Drawings

    <10W Operating Temperature 0°C to +50°C (non condensing) Output Data Interface Gigabit Ethernet (IEEE 802.3) Communication Protocol GigE Vision with GeniCam Mechanical Drawings C4-1280-GigE with C-Mount adapter: C4-1280-GigE with F-Mount adapter: 6 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 11: The C4-1280-Gige Camera Sensor Specifications

    16000 Hz (32 rows) Frequency / Number of Rows 8000 Hz (64 rows) 4000 kHz (128 rows) 2000 Hz (256 rows) 1000Hz (512 rows) 500 Hz (1024 rows) Spectral sensitivity of C4-1280 sensor • 7 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 12: C4-1280-Gige Camera Operational Reference

    R/(W) Format of the image pixels. For more details, see the Pixel Format description chapter. - Mono8 - Mono16 ReverseX IBoolean When set to true, this parameter flips the image horizontally. 8 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 13: Acquisition Control

    Validates every Gaussian curve detected along an image column. NumCOGSP IInteger Number of subpixel bits of COG output (0-6). PosValidationEn IBoolean Any invalid Gaussian 3D position value in all DC is set to 0. • 9 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 14: Camera Controls - Sensorcontrols

    Right shift twice the intensity value in DC0. EnableDC1TrshWidth IBoolean Controls the output in channel DC1, when TRSH algorithm is selected: True: DC1 outputs the laser line width. False: DC1 outputs the left edge position. 10 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 15: Camera Controls - Commands

    Sets the output analog voltage of illumination control in the range 0.0-5.0 V DC (corresponds to 0...100%) LaserTurnOn IInteger Laser turn on/off. VoltageIn IFloat Reads the input analog voltage of illumination control (range 0.0-5.0 V DC) • 11 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 16: Trigger Controls

    Link speed in Mbps. GevFirstURL IString NULL-terminated string providing the first URL to the XML device description file GevSecondURL IString NULL-terminated string providing the second URL to the XML device description file 12 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 17: Camera Persistance Support, Usersets

    Interface Access Description EventSelector IEnumeration Selector for the Event to control: - None - AcquisitionStart - AcquisitionEnd EventNotification IEnumeration Notification type to issue when selected event occurs: - Off - GigEVisionEvent • 13 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 18: The C4-1280-Gige Camera Algorithms

    The C4-1280-GigE Camera Algorithms The C4-1280-GigE camera can be operated both in a variety of 3D profile modes and in image mode. The current operation mode can be chosen by setting the parameter Camera Controls→ ModeAndAlgorithmControls→CameraMode. The frame rate can be increased in all camera modes by reducing the AOI size. In the image mode the frame rate is limited by the output rate of the camera interface (GigE).
  • Page 19: The Maximum Intensity Profile Mode (Max)

    0 to 1023 pixels (10 bit). If there is more than one local maximum, the position of the first maximum (starting from row zero) is used. • 15 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 20: The Threshold Mode (Trsh)

    In threshold mode the camera can output either the left and right threshold position separately or the subpixel position (P ) and the line width (P ). Moreover, the maximum intensity value can be optionally delivered. 16 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 21: The Center Of Gravity Mode (Cog)

    In addition the laser line width can be delivered over the Data Channel DC1. The average intensity of the illumination profile can be calculated by normalising the sum of intensity value I with the line width. • 17 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 22: The Data Output Format

    Alg. Flags – Output over DC1 (16 bit mode): Bit14 = LEFT_TRSH_FOUND_FLAG: indicates that the left edge of laser line was found Bit15 = RIGHT_TRSH_FOUND_FLAG: indicates that the right edge of laser line was found 18 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 23: C4-1280-Gige Camera Triggering

    Camera input 1 (PTM1) Profile Profile Profile Profile Acquisition 1 Acquisition 2 Acquisition 3 Acquisition 4 Camera input 2 (PTM2) Profile Profile Profile Profile Acquisition 1 Acquisition 2 Acquisition 3 Acquisition 4 • 19 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 24 Profile Trigger Mode (PTM) Encoder/Resolver Interface (PTM3) RS422 Example: Trigger after number of steps = 4 Counter Profile Profile Profile Acquisition 1 Acquisition 2 Acquisition 3 Internal Trigger 20 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 25: Description Of Modes For Triggering Of Sequencer/Frame And Profile Acquisition

    (frame trigger) Gate over camera input 1 PTM0 (free-run) Continuous frame acquisition is performed as long as the camera input 1 is on high state PTM2 (IN2) • 21 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 26 Remarks: The above table applies also to acquisition in image mode. In this case the camera delivers a gray scale sensor image for every profile trigger. 22 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 27: C4-1280-Gige Camera Interface

    VCC_EXT camera supply voltage (10-24V DC) RS232_TX reserved ENC_GND Encoder ground ENC_A+ encoder Track1 RS422 none reversible input (A+) ENC_B+ encoder Track2 RS422 none reversible input (B+ ) • 23 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 28: The Illumination Control

    Output for analog modulation of illumination device (0-5V DC) LASER_AIN Input for monitoring specific functions of illumination device (0-5V DC) Part Number for Illumination Control Connector Description Part Number Binder Series 712 M9 5-pin male connector, EMV 99-0413-10-05 protected 24 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 29: Description Of Leds

    Green blink = Indication of network activity 5 (GigE_right) Green On = Linkspeed 1 Gbit Yellow On = Linkspeed 100 Mbit Off = Linkspeed 10 Mbit or wait for end of autonegotiation • 25 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 30: Integrated Rs232 Serial Interface And Camera Boot Log

    Netmask: 255.255.0.0 Gateway: 0.0.0.0 ************************************** auto-negotiated link speed: 1000 Wait for end of IP configuration... Network interface is up Speed: 1000 Mbps IP: 169.254.64.2 Netmask: 255.255.0.0 Gateway: 0.0.0.0 Assigned from static address 26 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 31: The External C4 I/O Panel

    C4 I/O panel can be operated with 5V or 24 V DC the panel features a 2A fuse for camera protection in order to avoid signal noise, do not connect the main ground GND_EXT to other GND signals P1/1 P2/1 P4/1 • 27 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 32: Service Information

    In order to process your support inquiries immediately, we always need the serial number of the camera, a dump of configuration EEPROMs, a snapshot and a precise problem description. Product Inquiries and Price Quotations info@AutomationTechnology.de 28 • C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 33: Warranty Conditions

    • 29 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
  • Page 35 • 31 C4-1280-GigE Camera Hardware Reference Manual Rev. 1.4...
